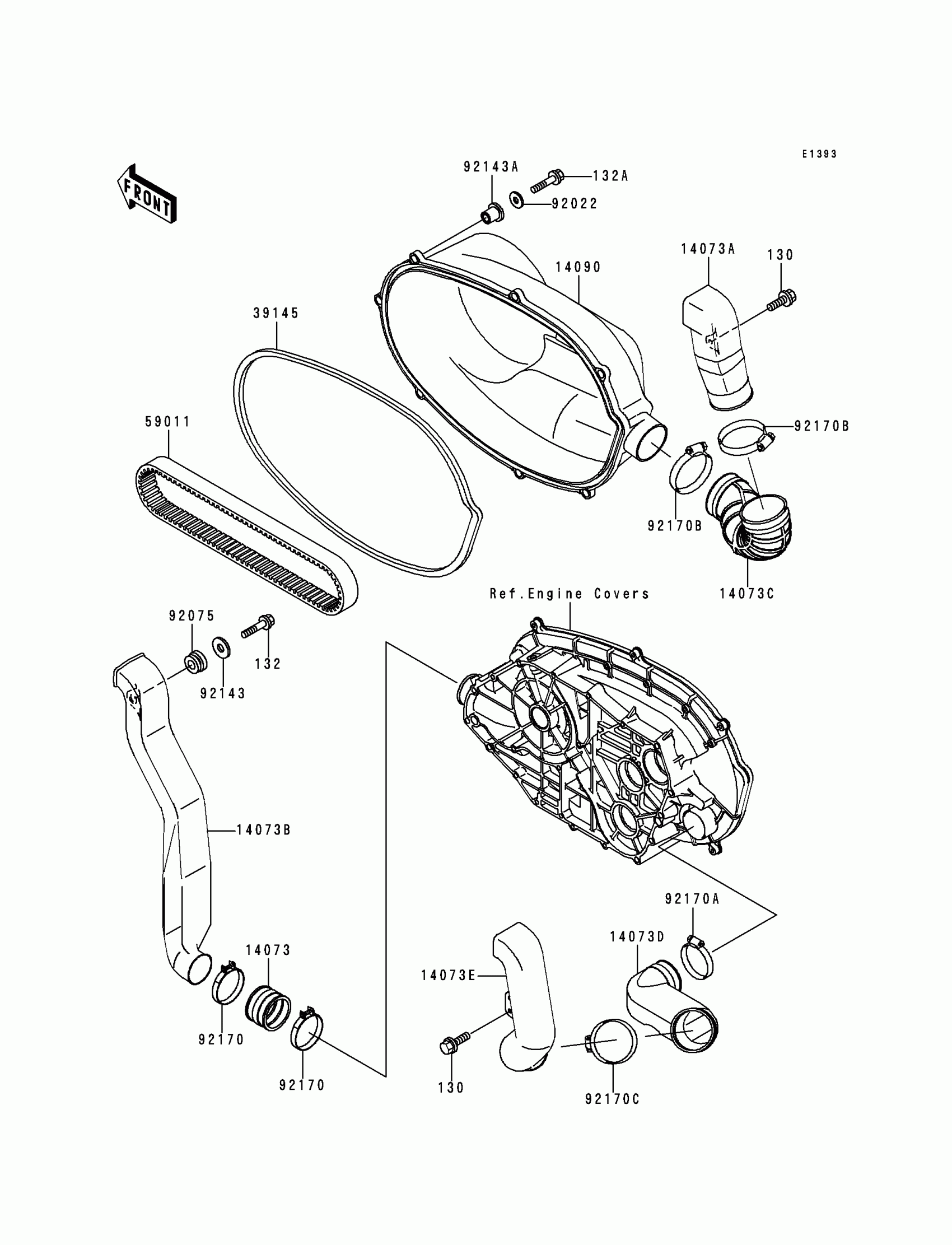

Kawasaki Prairie 400 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

14073

DUCT

14073-1324

$8.11

14073A

DUCT,SNORKEL,EX

14073-1678

$13.36

14073B

DUCT,SNORKEL,IN

14073-1679

$23.95

14073C

DUCT,SNORKEL,EX

14073-1680

$24.97

14073D

DUCT,SNORKEL,EX

14073-1683

$48.91

14073E

DUCT,SNORKEL,EX

14073-1684

$21.88

14090

COVER,BELT CONVERTER

14090-1760

Unavailable

39145

TRIM-SEAL

39145-1100

$10.30

59011

BELT,CONVERTER

59011-1060

$121.26

92022

WASHER,7X18X1.2

92022-1545

$0.84

92075

DAMPER,RUBBER

92075-1123

$3.81

92143

COLLAR

92143-1353

$6.54

92143A

COLLAR

92143-1888

$7.31

92170

CLAMP

92170-1448

$6.18

92170A

CLAMP

92170-1674

$8.94

92170B

CLAMP

92170-1763

$4.29

92170C

CLAMP

92170-1764

$8.62
