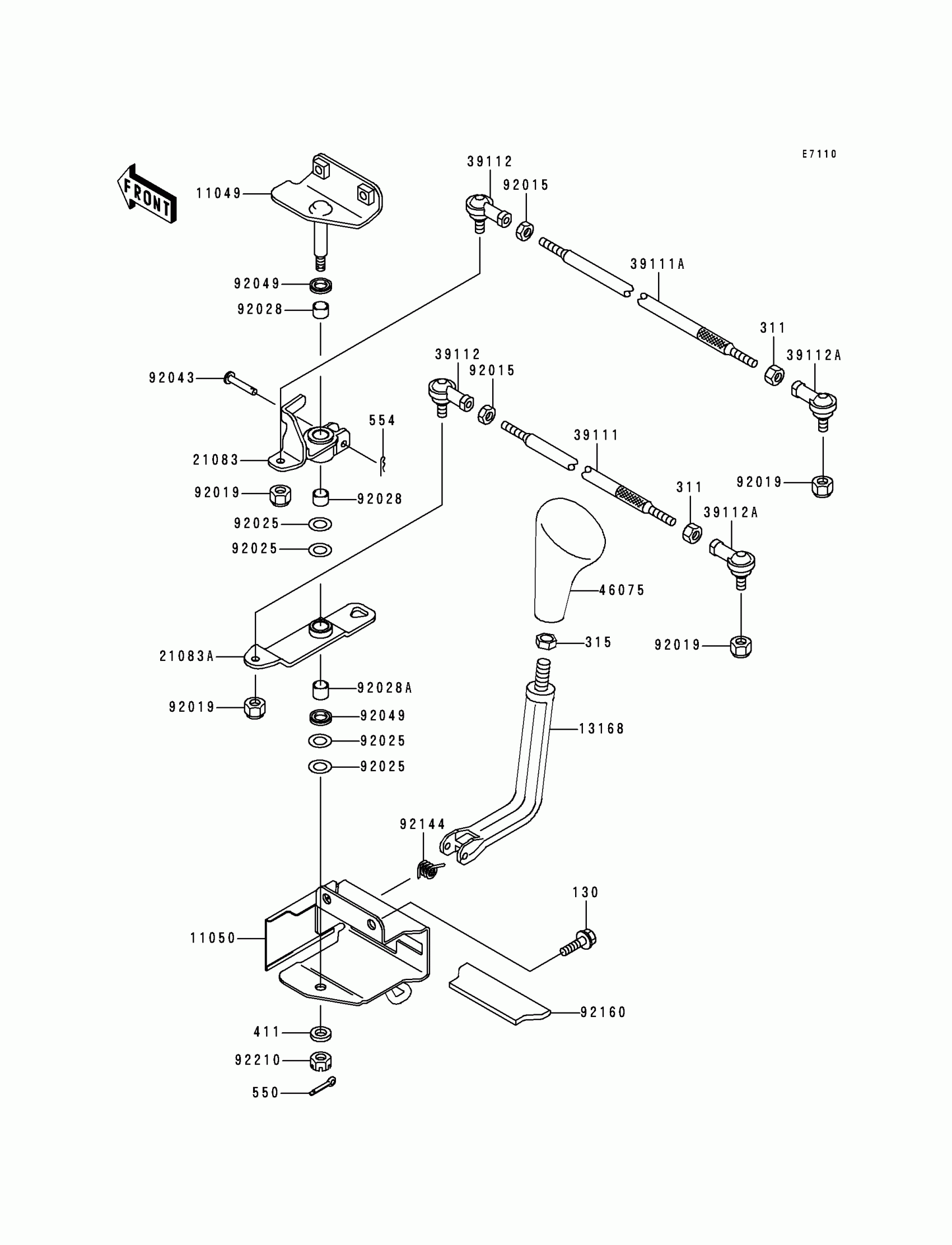

Kawasaki Prairie 400 Control Diagram

#

Description
Price

130

BOLT-FLANGED,8X16

130J0816

$1.66

311

NUT-HEX

311J0600

$1.01

315

NUT-HEX-FINE

315J1000

$4.69

411

WASHER PLAIN

411F0800

$1.66

550

PIN COTTER 2.0X15

550D2015

$1.04

554

PIN-SNAP,5MM

554A0500

$2.19

11049

BRACKET

11049-1463

Unavailable

11050

BRACKET

11050-1436

Unavailable

13168

LEVER,SHIFT

13168-1637

Unavailable

21083

ARM

21083-1121

$98.81

21083A

ARM

21083-1132

$23.06

39111

ROD-TIE,HI/LOW

39111-1148

Unavailable

39111A

ROD-TIE,FR

39111-1149

Unavailable

39112

RODEND-TIE

39112-1006

$49.58

39112A

RODEND-TIE

39112-1070

$93.99

46075

GRIP,SHIFT LEVER

46075-1164

$43.80

92015

NUT,LEFT HANDED,6MM

92015-1125

$4.31

92019

NUT,LOCK,6MM

92019-008

$4.26

92025

SHIM

92025-1780

$2.46

92028

BUSHING,L=8

92028-1787

$7.98

92028A

BUSHING,L=10

92028-1788

$6.87

92043

PIN,5X27.5

92043-1434

$9.21

92049

SEAL-OIL

92049-1458

$11.69

92144

SPRING

92144-1936

$4.07

92160

DAMPER

92160-1820

$9.50

92210

NUT,CASTLE,8MM

92210-1053

Unavailable
