1998 Kawasaki Prairie 400 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1998 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

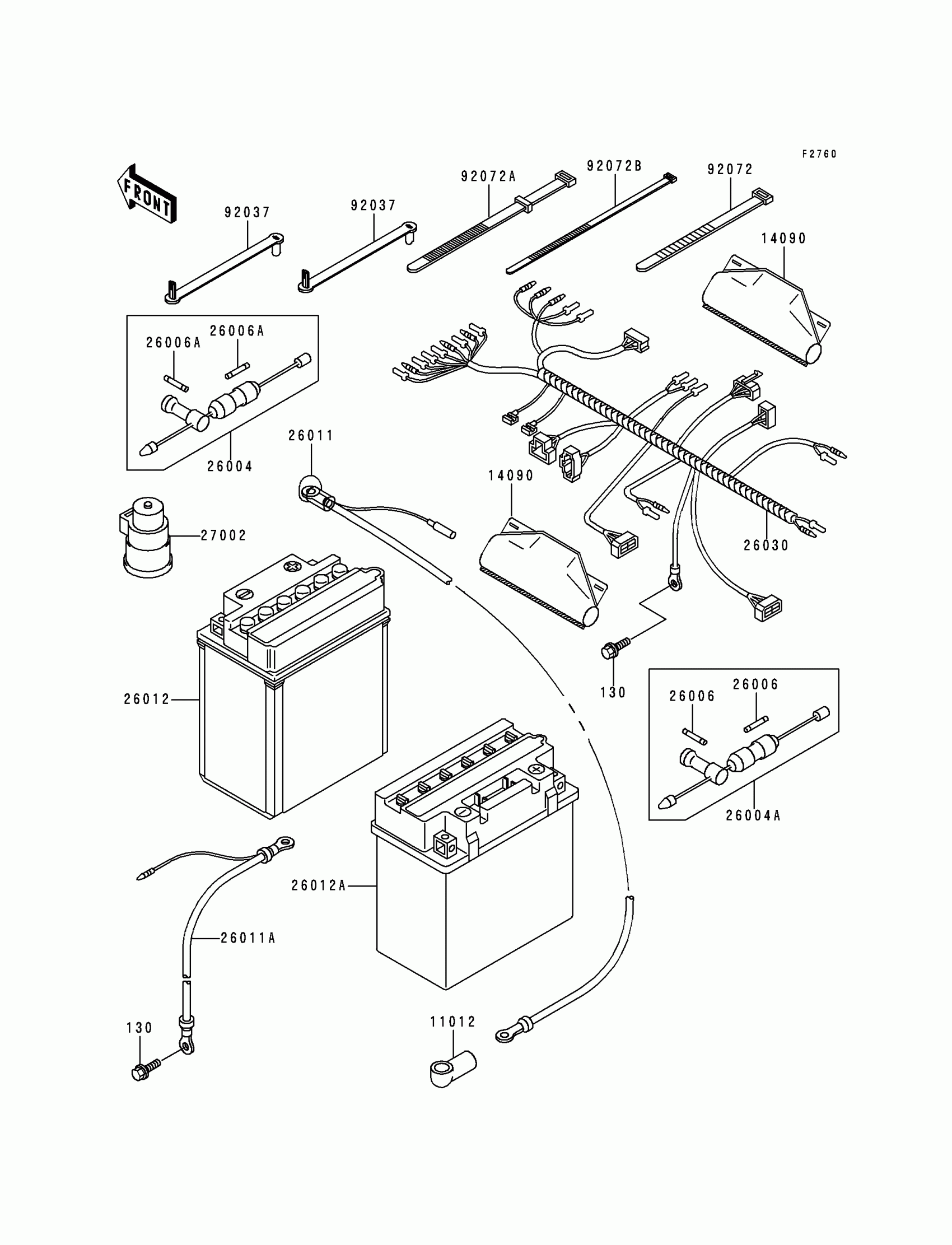

1998 Kawasaki Prairie 400 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT

130B0612

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1
Out of stock

14090

COVER,COUPLER

14090-1331

1

$8.31

In stock

26004

FUSE-ASSY

26004-1104

1
Out of stock

26004A

FUSE-ASSY

26004-3715

1
Out of stock

26006

FUSE,30A,L=30

26006-1059

1
Out of stock

26006A

FUSE,8A,L=30

26006-1062

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1513

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1637

1
Out of stock

26030

HARNESS,MAIN

26030-1548

1
Out of stock

27002

RELAY-ASSY

27002-1095

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92072B

BAND,L=188

92072-1239

1
Out of stock

26012

BATTERY,12V 14AH,YB14A-A2

26012-1146

1
Out of stock

26012A

BATTERY,YB16CL-B,12V 19AH

26012-1315

1
Out of stock
