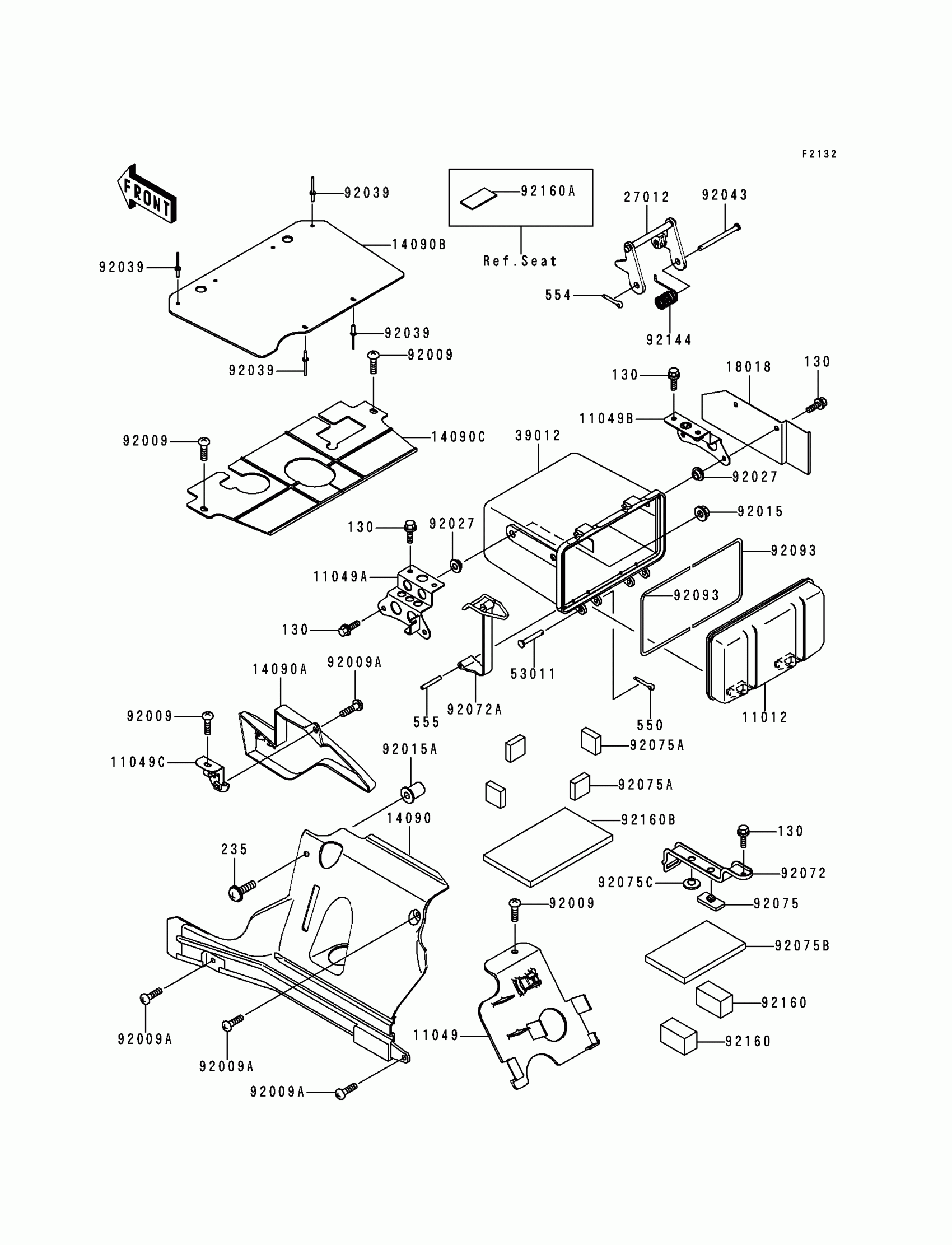

Kawasaki Prairie 400 Battery Case Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

235

SCREW-PAN-WP-CROS

235C0516

Unavailable

550

PIN-COTTER,2.0X12

550D2012

$0.89

554

PIN,SNAP

554A0600

Unavailable

555

PIN-SPRING

555A0436

$3.74

11012

CAP,STORAGE CASE

11012-1951

$6.76

11049

BRACKET,ELECTRIC BASE

11049-1516

Unavailable

11049A

BRACKET,STORAGE CASE,LH

11049-1733

$14.54

11049B

BRACKET,STORAGE CASE,RH

11049-1734

$13.44

11049C

BRACKET

11049-1738

$4.95

14090

COVER,ENGINE,LH

14090-1667

$21.98

14090A

COVER,ENGINE,RH

14090-1668

Unavailable

14090B

COVER,FRONT COVER

14090-1723

$17.61

14090C

COVER,REAR COVER

14090-1724

Unavailable

18018

PLATE-HEAT GUARD

18018-1127

$12.92

27012

HOOK,SEAT

27012-1381

$36.50

39012

CASE-STORAGE

39012-1059

Unavailable

53011

PIN, DUAL SEAT PIVOT

53011-006

$4.61

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR,L=5.6

92027-1933

$4.37

92039

RIVET

92039-3712

$4.29

92043

PIN,6X77

92043-1367

$7.64

92072

BAND,BATTERY

92072-1333

$5.41

92072A

BAND,STORAGE CASE

92072-1337

$27.26

92075

DAMPER

92075-1054

$3.81

92075C

DAMPER,RUBBER

92075-261

$3.85

92093

SEAL

92093-1457

$6.81

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92160A

DAMPER

92160-1846

Unavailable

92075A

DAMPER,FUEL TANK,RR

92075-1483

$10.73

92075B

DAMPER,BATTERY

92075-1997

$8.75

92160

DAMPER

92160-1744

$4.85

92160B

DAMPER,BATTERY

92160-1926

Unavailable
