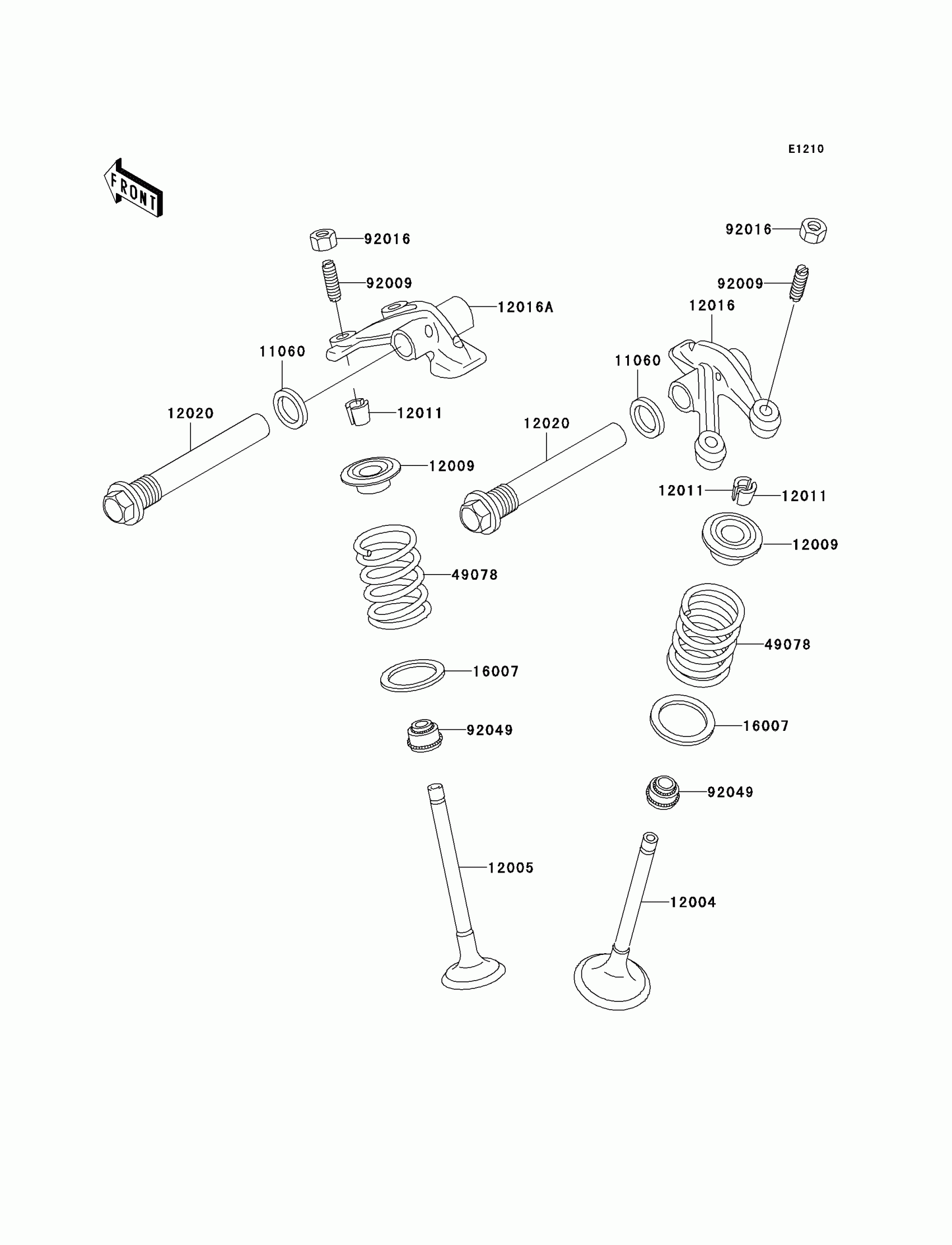

Kawasaki Prairie 400 4X4 Valve(s) Diagram

Description

Price

11060

GASKET,14X20X2

11060-1287

$3.50

12004

VALVE-INTAKE

12004-1106

$47.61

12005

VALVE-EXHAUST

12005-1189

$75.81

12009

RETAINER-VALVE SPRING

12009-1054

$10.86

12011

COLLET

12011-1003

$4.65

12016

ARM-ROCKER,INTAKE

12016-1089

$120.32

12016A

ARM-ROCKER,EXHAUST

12016-1090

$120.32

12020

SHAFT-ROCKER

12020-1067

Unavailable

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1178

$6.16

49078

SPRING-ENGINE VALVE

49078-1073

$17.75

92009

SCREW,6MM

92009-1032

$7.29

92016

NUT,6MM

92016-061

$4.69

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13
