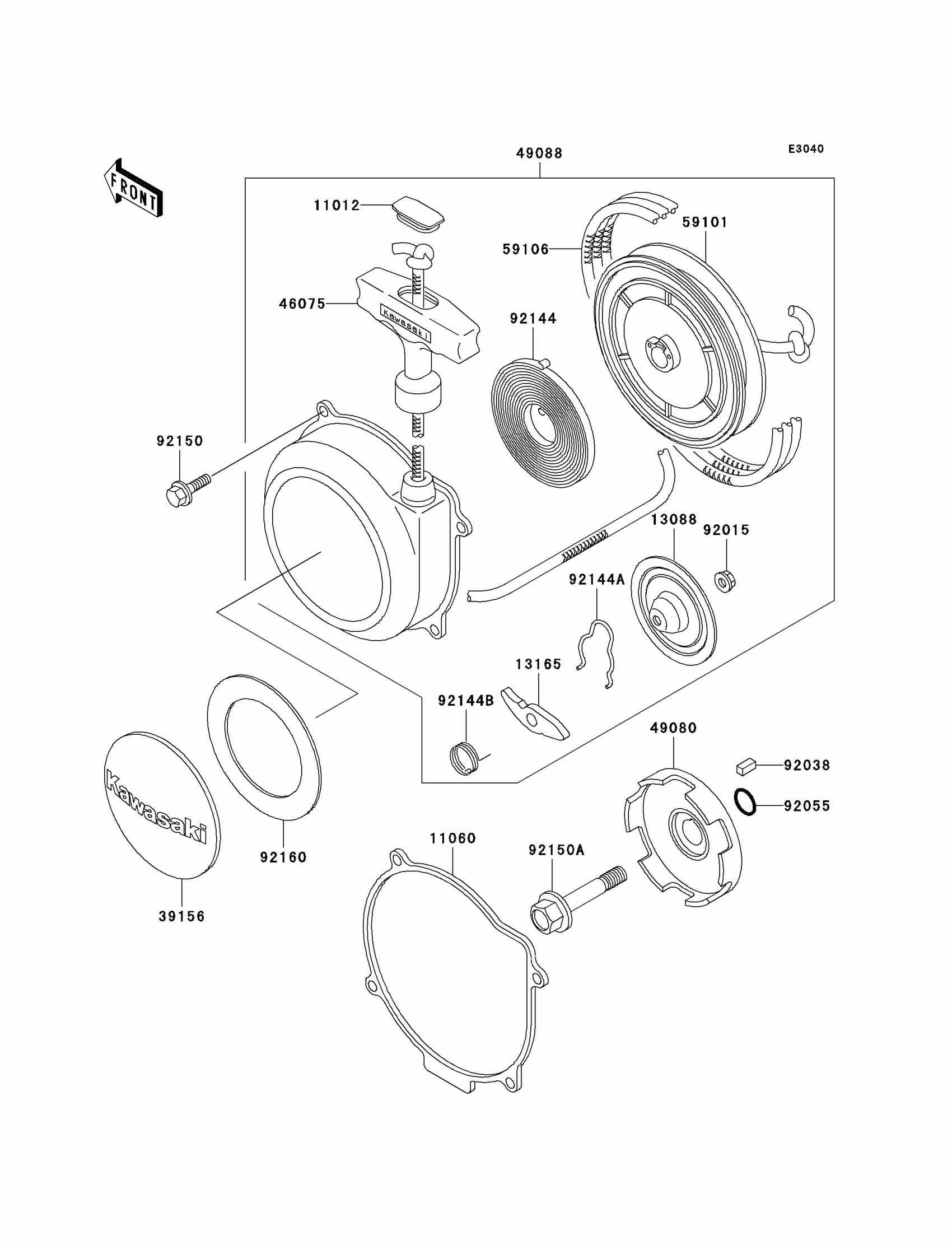

Kawasaki Prairie 400 4X4 Recoil Starter Diagram

Description

Price

11012

CAP,RECOIL GRIP

11012-1420

$6.46

11060

GASKET

11060-1717

$8.99

13088

PLATE-FRICTION,RECOIL

13088-1073

$16.54

13165

PAWL,RECOIL

13165-1123

$21.77

39156

PAD,RECOIL STARTER

39156-1527

$8.94

46075

GRIP,RECOIL

46075-1073

$19.06

49080

PULLEY-STARTING

49080-1056

Unavailable

49088

STARTER-RECOIL

49088-1056

$342.63

59101

REEL

59101-1109

$148.68

59106

ROPE

59106-1103

$31.74

92015

NUT,6MM

92015-1464

$4.92

92038

KEY,SUNK

92038-1051

$5.73

92055

RING-O,19.8X2.2

92055-1215

$4.31

92144

SPRING,RECOIL

92144-1205

$61.27

92144A

SPRING,FRICTION

92144-1206

$20.02

92144B

SPRING,RETURN

92144-1207

$6.82

92150

BOLT,6X14

92150-1916

$3.32

92150A

BOLT,12X65

92150-1987

$11.82

92160

DAMPER,RECOIL STARTER

92160-1691

$17.37
