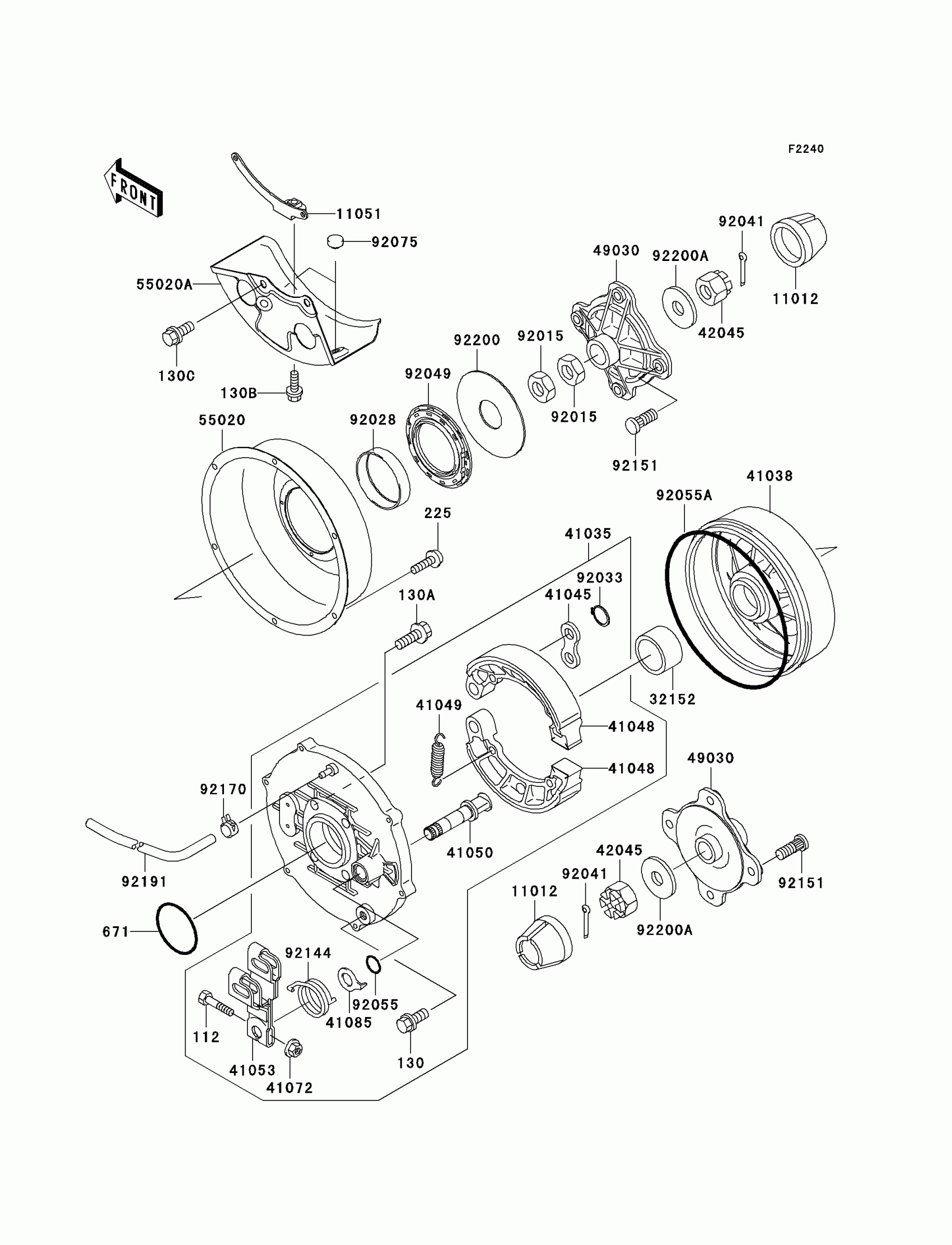

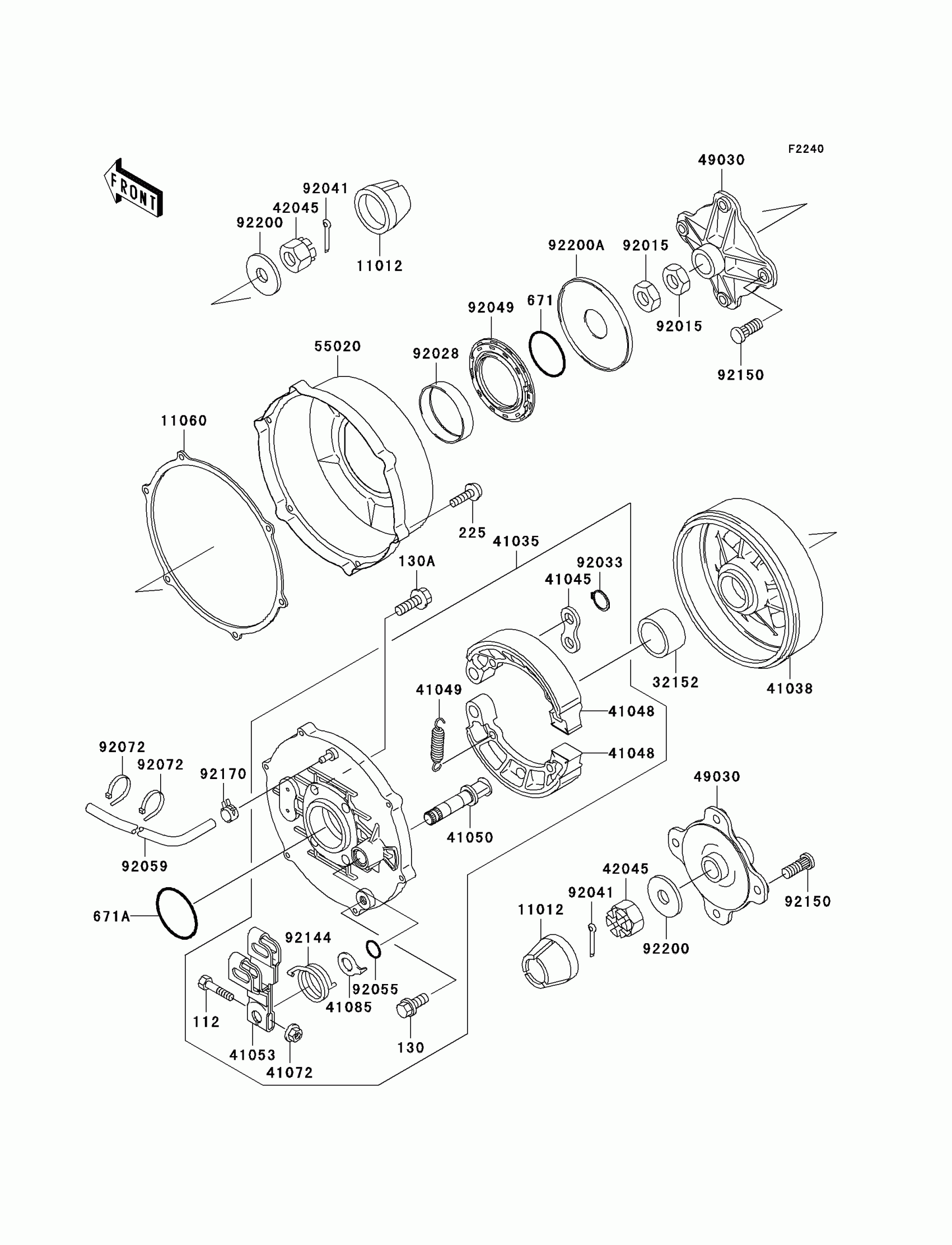

Kawasaki Prairie 400 4X4 Rear Hub Diagram

#

Description
Price

112

BOLT-UPSET

112H0640

$3.90

130

BOLT-FLANGED,10X12

130B1012

$4.37

130A

BOLT-FLANGED,10X30

130G1030

$4.89

225

SCREW-PAN-WSP-CROS,6X16

225C0616

$4.02

671

O RING

671B2550

$2.29

671A

O RING,70MM

671B2570

$7.62

11012

CAP,WHEEL

11012-1969

$5.65

11060

GASKET

11060-1731

$30.01

32152

PIPE,40X50.8X28

32152-1082

$20.22

41035

PANEL-ASSY-BRAKE,RR

41035-1496

Unavailable

41038

DRUM,REAR BRAKE

41038-1280

Unavailable

41045

WASHER-BRAKE SHOE

41045-006

$7.22

41048

SHOE-BRAKE

41048-1127

$38.07

41049

SPRING,BRAKE SHOE

41049-012

$9.49

41050

CAM-BRAKE

41050-1089

$73.57

41053

LEVER-BRAKE CAM

41053-1084

$51.41

41072

NUT,6MM

41072-007

$3.92

41085

INDICATOR

41085-1086

Unavailable

42045

NUT,CASTLE,18MM

42045-018

$9.23

49030

HUB,RR

49030-1113

$175.42

55020

GUARD,REAR BRAKE DRUM

55020-1625

$34.02

92015

NUT,LOCK,37MM

92015-1545

$19.74

92028

BUSHING

92028-1824

Unavailable

92033

RING-SNAP,15MM

92033-1250

$5.18

92041

COTTER,4.0X35

92041-1053

$3.92

92049

SEAL-OIL

92049-1472

Unavailable

92055

RING-O,ID=16.4

92055-1376

$4.60

92059

TUBE,4.7X9.5X1240

92059-1968

$23.18

92072

BAND,L=123

92072-030

$5.00

92144

SPRING

92144-1365

$12.95

92150

BOLT

92150-1289

$5.33

92170

CLAMP

92170-2042

$1.30

92200

WASHER,18.5X52X4.5

92200-1139

$8.10

92200A

WASHER

92200-1372

Unavailable
