Description

Price

130

BOLT-FLANGED,6X18

130C0618

$1.69

130A

BOLT-FLANGED,8X16

130J0816

$1.66

35011

STAY,REAR FLAP,LH

35011-1759

Unavailable

35011A

STAY,REAR FLAP,RH

35011-1760

Unavailable

35011B

STAY,REAR FENDER

35011-1782

$60.70

35019

FLAP,RR,FR,LH,F.BLACK

35019-1334-6Z

$53.31

35019A

FLAP,RR,FR,RH,F.BLACK

35019-1335-6Z

$53.31

35019B

FLAP,RR,RR,F.BLACK

35019-1336-6Z

$22.71

35023

FENDER-REAR,S.GRAY

35023-1439-RG

$239.72

53004

MAT,REAR FENDER

53004-1111

Unavailable

53004A

MAT,REAR FENDER

53004-1112

Unavailable

53004B

MAT,REAR FENDER

53004-1113

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X14

92009-1288

$3.92

92009B

SCREW,6X25

92009-1465

$3.92

92009C

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92027A

COLLAR,L=4.7

92027-1964

$7.34

92071

GROMMET

92071-1237

$7.90

92072

BAND,BATTERY CASE

92072-1328

Unavailable

92075

DAMPER,CASE

92075-222

$7.34

92200

WASHER,8.5X20X2.3

92200-1055

$3.94

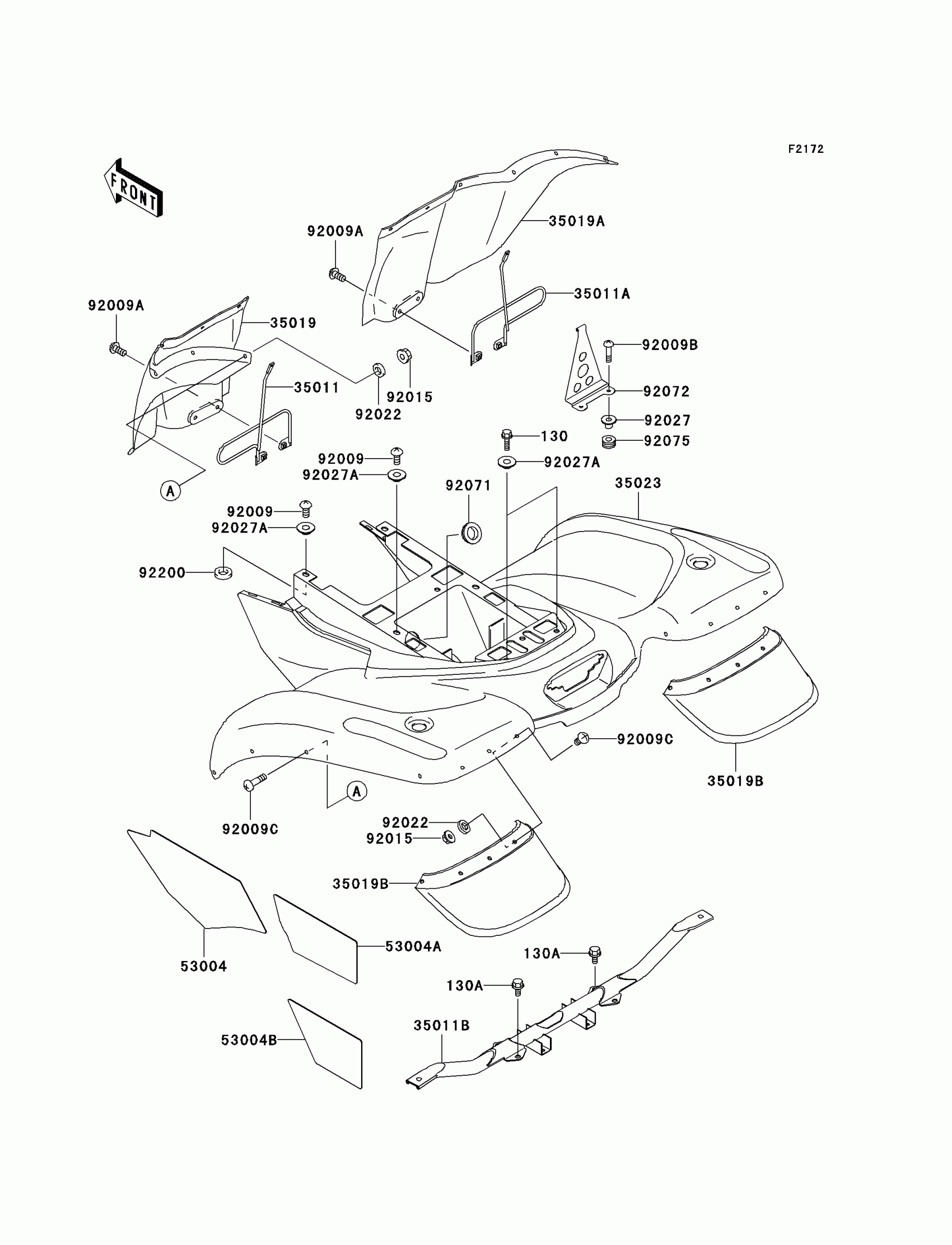

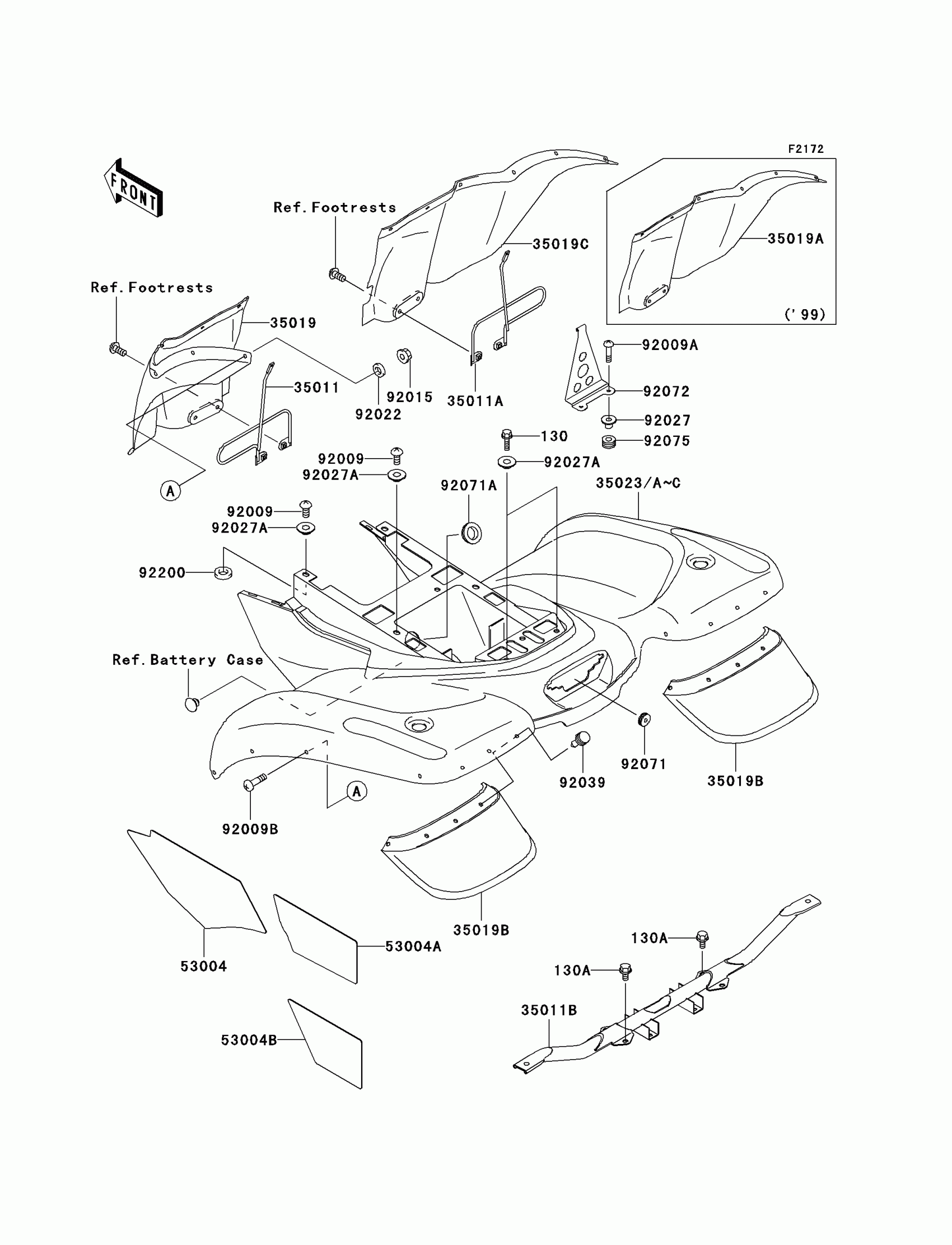

Kawasaki Prairie 400 4X4 Rear Fender(s) Diagram

BOLT-FLANGED,6X18

BOLT-FLANGED,8X16

STAY,REAR FLAP,LH

STAY,REAR FLAP,RH

STAY,REAR FENDER

FLAP,RR,FR,LH,F.BLACK

FLAP,RR,FR,RH,F.BLACK

FLAP,RR,RR,F.BLACK

FENDER-REAR,S.GRAY

MAT,REAR FENDER

MAT,REAR FENDER

MAT,REAR FENDER

SCREW,TAPPING,6X16

SCREW,6X14

SCREW,6X25

SCREW,6X16

NUT,LOCK,FLANGED,6MM

WASHER,6.5X16X1.0

COLLAR,FLANGED,L=12.1,BLACK

COLLAR,L=4.7

GROMMET

BAND,BATTERY CASE

DAMPER,CASE

WASHER,8.5X20X2.3
