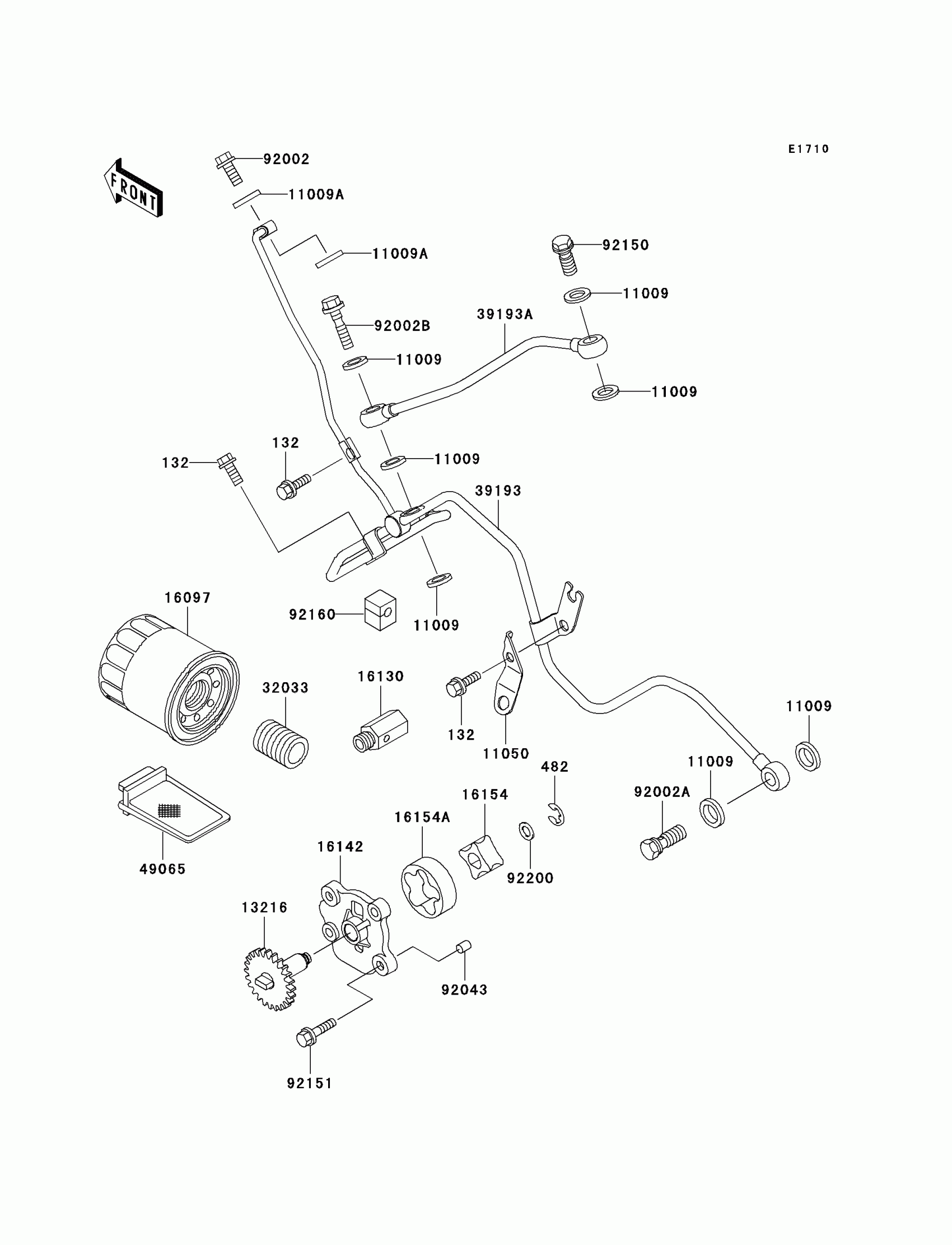

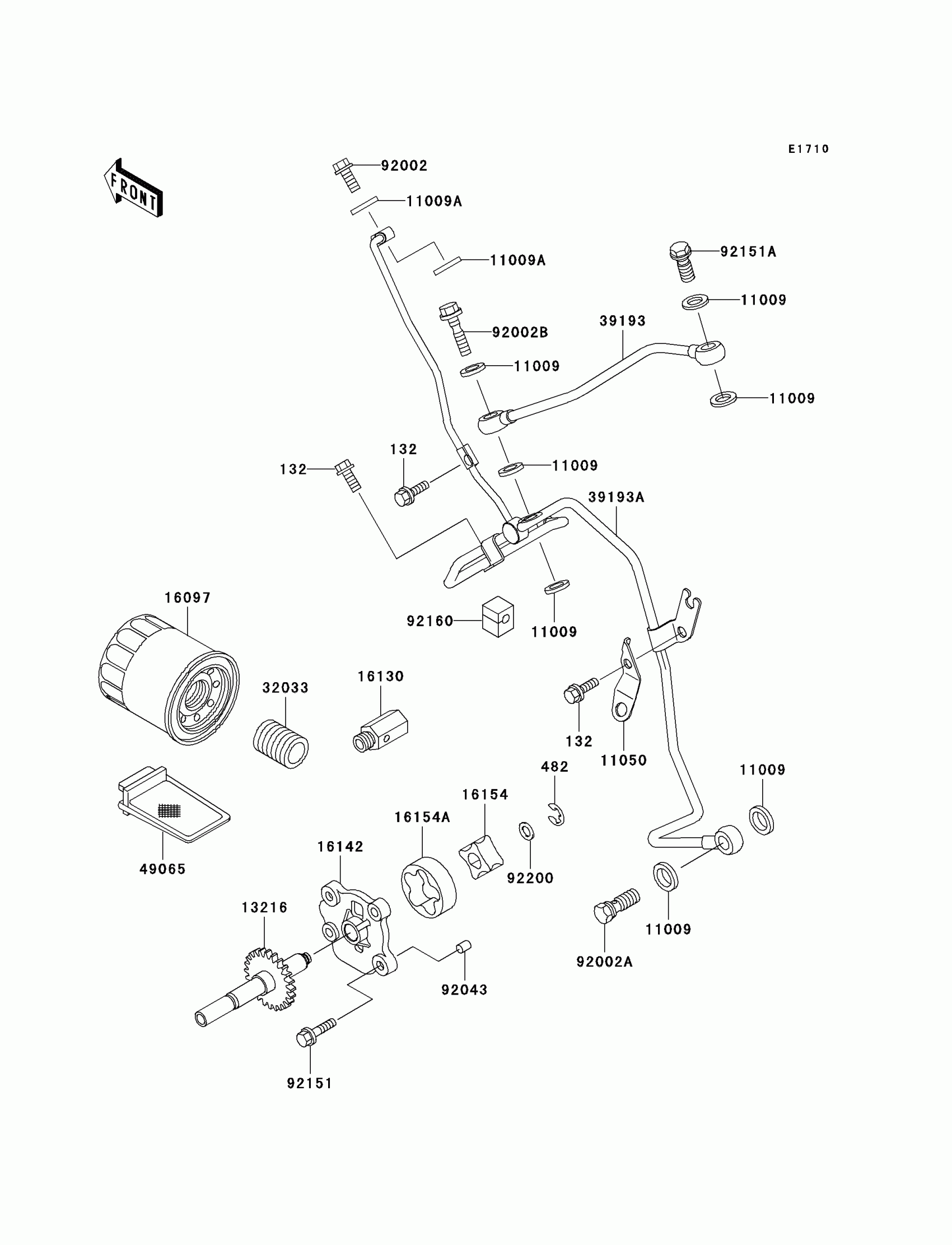

Kawasaki Prairie 400 4X4 Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0612

$1.17

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11009A

GASKET,8.2X14X1.0

11009-1344

$3.17

11050

BRACKET

11050-1304

$8.12

13216

GEAR-COMP,OIL PUMP

13216-1165

Unavailable

16097

FILTER-ASSY-OIL

16097-1063

$14.50

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP

16142-1136

$39.22

16154

ROTOR-PUMP,INNER

16154-2059

$7.18

16154A

ROTOR-PUMP,OUTER

16154-2060

$10.32

32033

PIPE,OIL FILTER

32033-1535

$12.96

39193

PIPE-OIL,HEAD-TRANSMISSIN

39193-1027

Unavailable

39193A

PIPE-OIL,CRANKSHAFT

39193-1028

$57.63

49065

FILTER-OIL

49065-1070

$17.22

92002

BOLT,8X20

92002-1429

$11.07

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92002B

BOLT,OIL,L=37

92002-1909

$11.83

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92150

BOLT,BANJO,10X23

92150-1123

$5.38

92151

BOLT,FLANGED-SMALL,6X22

92151-1197

$5.59

92160

DAMPER

92160-1522

Unavailable

92200

WASHER,7.7X13X1.0

92200-1107

$4.40
