1998 Kawasaki Prairie 400 4X4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

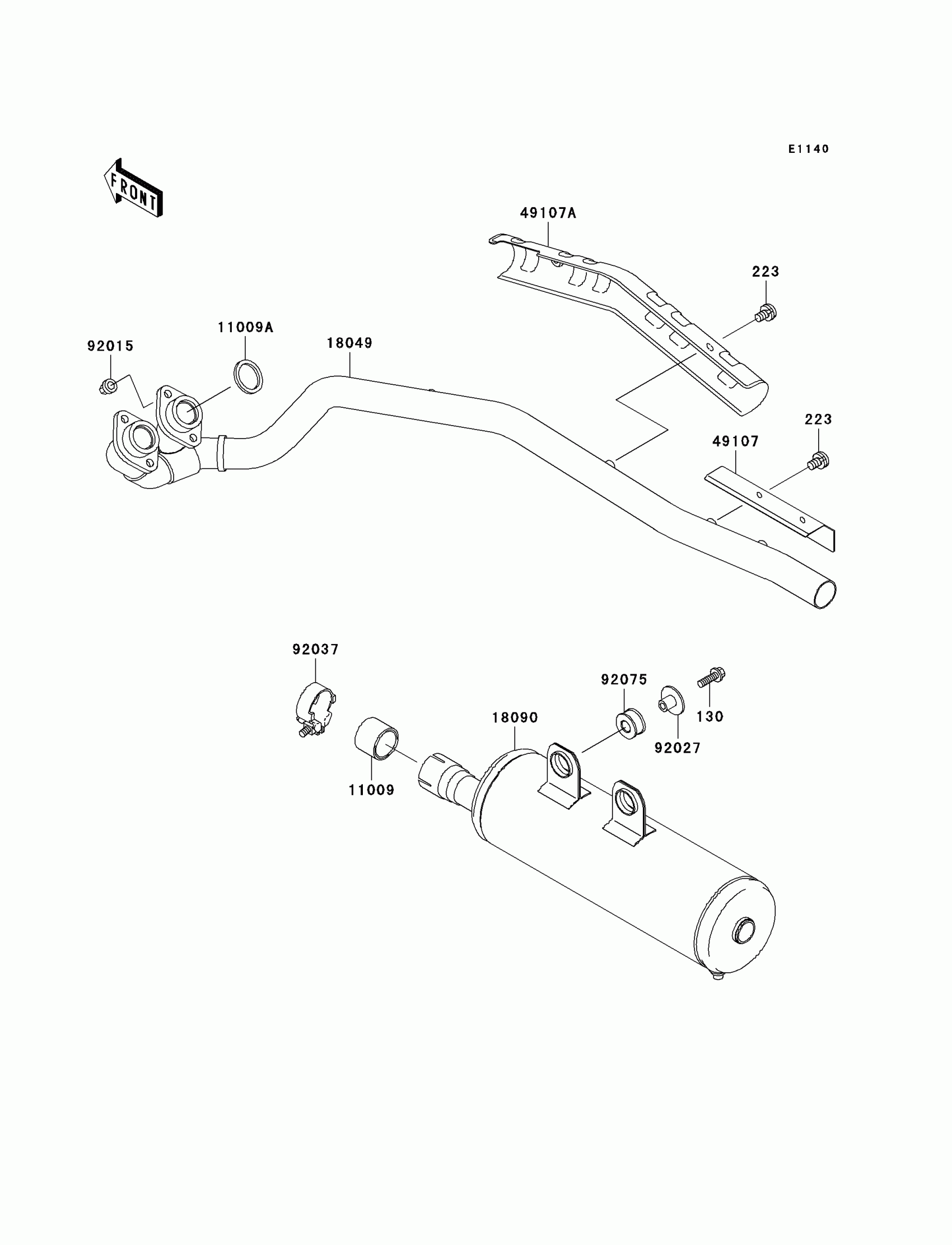

1998 Kawasaki Prairie 400 4X4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0610

1
Out of stock

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

1
Out of stock

11009A

GASKET,EXHAUST PIPE H

11009-1866

1
Out of stock

18049

PIPE-EXHAUST

18049-1753

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1525

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-1130

1
Out of stock

49107A

COVER-EXHAUST PIPE

49107-1135

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92027

COLLAR,MUFFLER

92027-1981

1
Out of stock

92037

CLAMP,42MM

92037-1349

1
Out of stock

92075

DAMPER,MUFFLER

92075-1809

1
Out of stock
