1998 Kawasaki Prairie 400 4X4 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

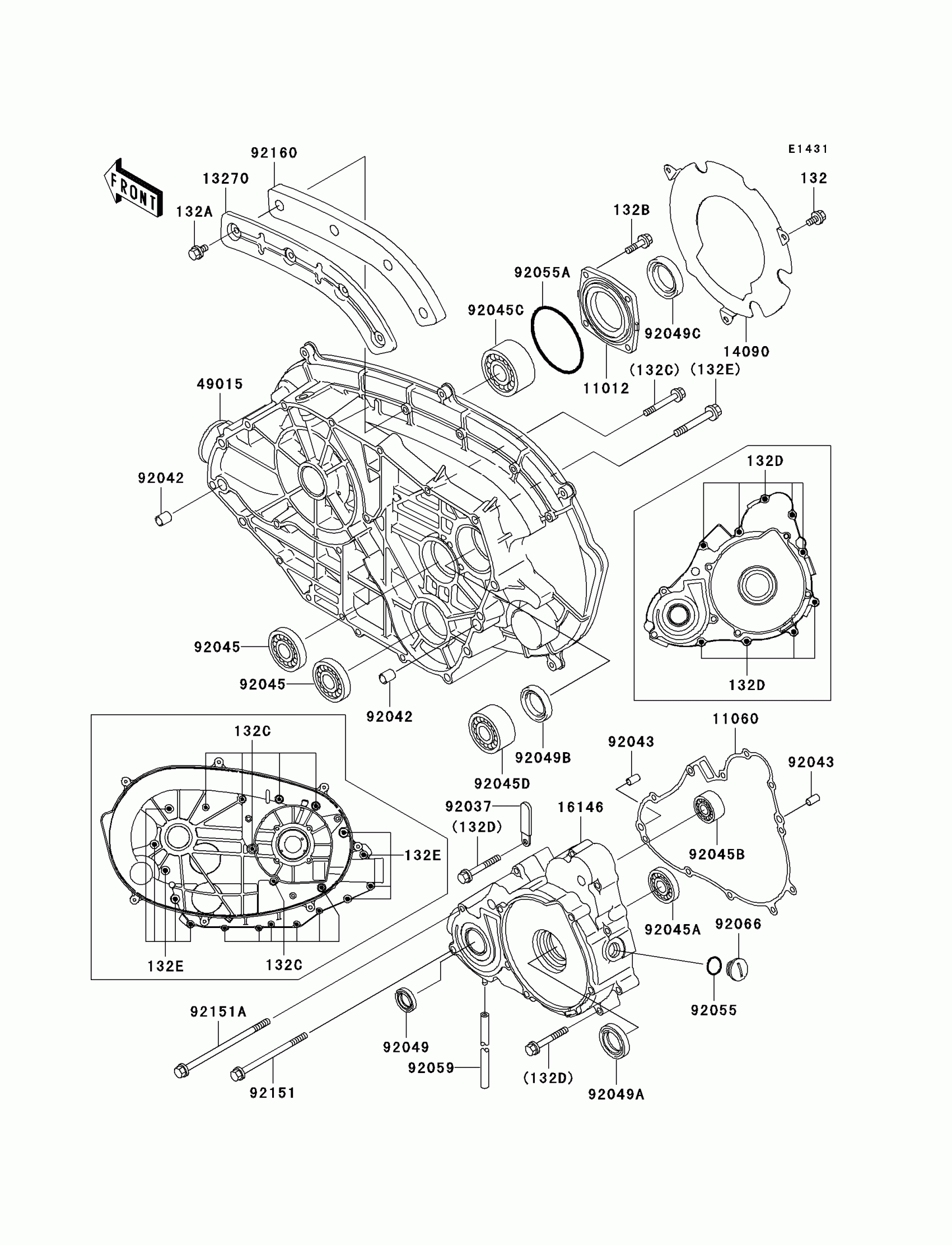

1998 Kawasaki Prairie 400 4X4 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X35

132Y0635

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132E

BOLT-FLANGED-SMALL,8X40

132Y0840

1
Out of stock

11012

CAP

11012-1982

1
Out of stock

11060

GASKET,GENERATOR COVER

11060-1729

1
Out of stock

13270

PLATE

13270-1737

1
Out of stock

14090

COVER

14090-1761

1
Out of stock

16146

COVER-ASSY,GENERATOR

16146-1173

1
Out of stock

49015

COVER-CRANKCASE

49015-1054

1
Out of stock

92037

CLAMP,L=45

92037-1539

1
Out of stock

92042

PIN,DOWEL,12X14

92042-031

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,TMB304CCM

92045-1142

1
Out of stock

92045A

BEARING-BALL

92045-1178

1
Out of stock

92045B

BEARING-BALL,5201

92045-1327

1
Out of stock

92045C

BEARING-BALL,5207C2

92045-1328

1
Out of stock

92045D

BEARING-BALL,5206

92045-1329

1
Out of stock

92049

SEAL-OIL,SC12 28.555

92049-1259

1
Out of stock

92049A

SEAL-OIL

92049-1386

1
Out of stock

92049B

SEAL-OIL,TC30458

92049-1451

1
Out of stock

92049C

SEAL-OIL,TC 35X50X8

92049-1452

1
Out of stock

92055

RING-O,20X2

92055-1146

1
Out of stock

92055A

RING-O,79.5MM

92055-1230

1
Out of stock

92059

PIPE-FUEL

92059-080

1
Out of stock

92066

PLUG,COVER

92066-1163

1
Out of stock

92151

BOLT,6X85

92151-1140

1
Out of stock

92151A

BOLT,6X110

92151-1141

1
Out of stock

92160

DAMPER

92160-1793

1
Out of stock
