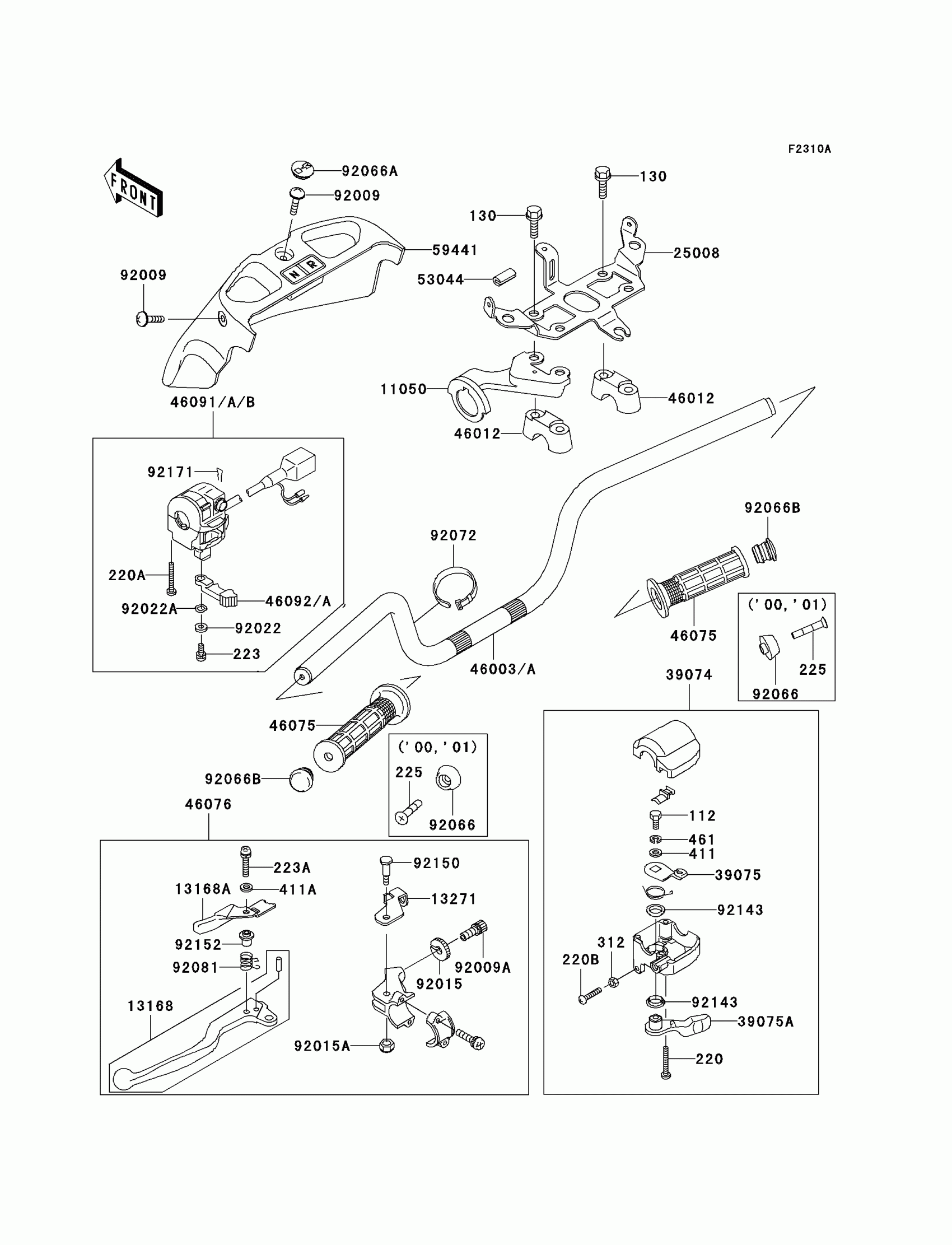

Kawasaki Prairie 400 4X4 Handlebar(C2-C4) Diagram
#
112
BOLT-UPSET
112D0614
$0.49
130
BOLT-FLANGED,8X60
130P0860
$1.74
11050
BRACKET,HANDLE COVER,LH
11050-1727
$17.55
13168
LEVER,LH
13168-1672
$36.11
13168A
LEVER,LOCK
13168-1673
Unavailable
13271
PLATE,LOCK
13271-1259
$17.76
25008
BRACKET-METER
25008-1222
$37.38
39074
LEVER-ASSY-THROTTLE
39074-1055
$79.09
39075
LEVER-THROTTLE,ARM
39075-1054
$11.51
39075A
LEVER-THROTTLE
39075-1059
$33.25
46003A
HANDLE
46003-1573
$72.85
46012
HOLDER-HANDLE
46012-1168
$16.33
46075
GRIP
46075-1056
$25.83
46076
LEVER-ASSY-GRIP,LH
46076-1224
$52.54
46091B
HOUSING-ASSY-CONTROL,LH
46091-1848
$228.81
46092A
LEVER-GRIP,CHOKE
46092-1217
$5.47
53044
TRIM,L=20
53044-1292
$3.13
59441
COVER-HANDLE,F.BLACK
59441-1139-6Z
$39.13
92009
SCREW,TAPPING,5X10
92009-1332
$3.92
92009A
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015A
NUT
92015-1829
$4.26
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92066A
PLUG,F.BLACK
92066-1498-6Z
$5.06
92066B
PLUG
92066-1550
$8.90
92072
BAND,L=149
92072-031
$5.00
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92143
COLLAR
92143-1138
$3.56
92150
BOLT
92150-1420
Unavailable
92152
COLLAR
92152-1176
$4.31
92171
CLAMP,CLIP
92171-1095
$3.09
220
SCREW-PAN-CROS,5X30
220C0530
Unavailable
220A
SCREW-PAN-CROS,5X35
220C0535
$2.06
220B
SCREW-PAN HEAD,6X30
220C0630
$1.89
223
SCREW-PAN-WS-CROS,5X12
223C0512
$4.32
223A
SCREW-PAN-WS-CROS
223C0520
$1.53
312
NUT-HEX,6MM,BLACK
312C0600
$3.57
411
WASHER-PLAIN,6MM
411E0600
$1.31
411A
WASHER-PLAIN,5MM,BLACK
411F0500
$0.83
461
WASHER-SPRING
461L0600
$0.71
