Description

Price

14090A

COVER,FUEL TANK,H.GREEN

14090-1666-6A

$35.01

14090B

COVER,FUEL TANK,F.RED

14090-1666-6L

$35.01

14090C

COVER,INNER FLAP,LH

14090-1669

$111.45

14090D

COVER,INNER FLAP,RH

14090-1670

$101.11

14090E

COVER,INNER FLAP

14090-1725

$17.56

14090F

COVER,INNER FLAP

14090-1763

$21.30

35011

STAY,FRONT FLAP,LH

35011-1761

$30.25

35011A

STAY,FRONT FLAP,RH

35011-1784

$24.62

35019

FLAP,FR,LH,F.BLACK

35019-1338-6Z

$25.17

35019A

FLAP,FR,RH,F.BLACK

35019-1339-6Z

$25.17

53044

TRIM,L=150

53044-1303

$4.38

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,L=4.7

92027-1964

$7.34

92075

DAMPER

92075-1744

$8.50

92170

CLAMP,HARNESS

92170-1015

Unavailable

35004A

FENDER-FRONT,H.GREEN

35004-1336-6A

$323.32

35004B

FENDER-FRONT,F.RED

35004-1336-6L

$308.69

35004D

FENDER-FRONT,H.GREEN

35004-1344-6A

$323.32

35004E

FENDER-FRONT,F.RED

35004-1344-6L

$308.69

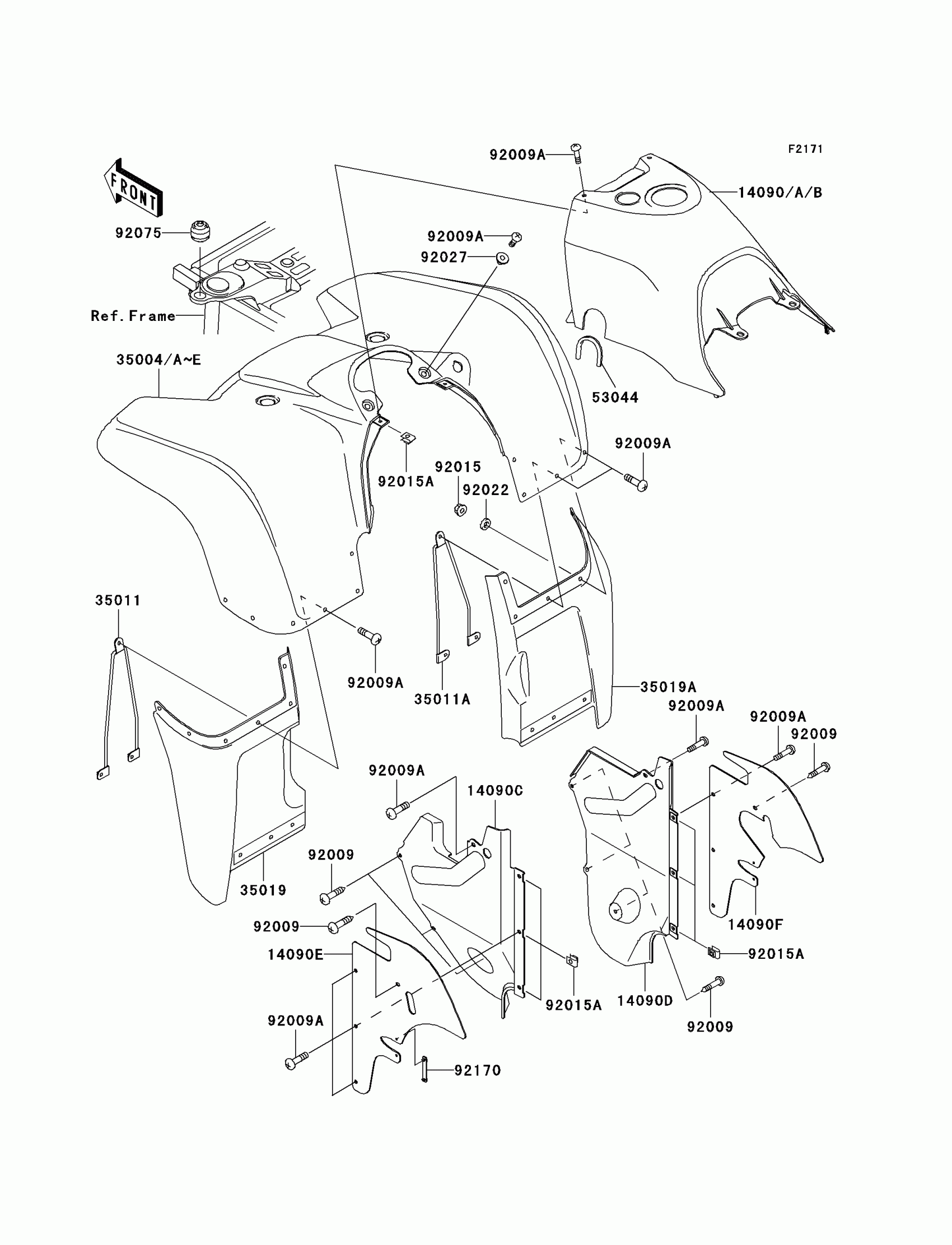

Kawasaki Prairie 400 4X4 Front Fender(s) Diagram

COVER,FUEL TANK,H.GREEN

COVER,FUEL TANK,F.RED

COVER,INNER FLAP,LH

COVER,INNER FLAP,RH

COVER,INNER FLAP

COVER,INNER FLAP

STAY,FRONT FLAP,LH

STAY,FRONT FLAP,RH

FLAP,FR,LH,F.BLACK

FLAP,FR,RH,F.BLACK

TRIM,L=150

SCREW,TAPPING,6X16

SCREW,6X16

NUT,LOCK,FLANGED,6MM

NUT,CLAMP,6MM

WASHER,6.5X16X1.0

COLLAR,L=4.7

DAMPER

CLAMP,HARNESS

FENDER-FRONT,H.GREEN

FENDER-FRONT,F.RED

FENDER-FRONT,H.GREEN

FENDER-FRONT,F.RED
