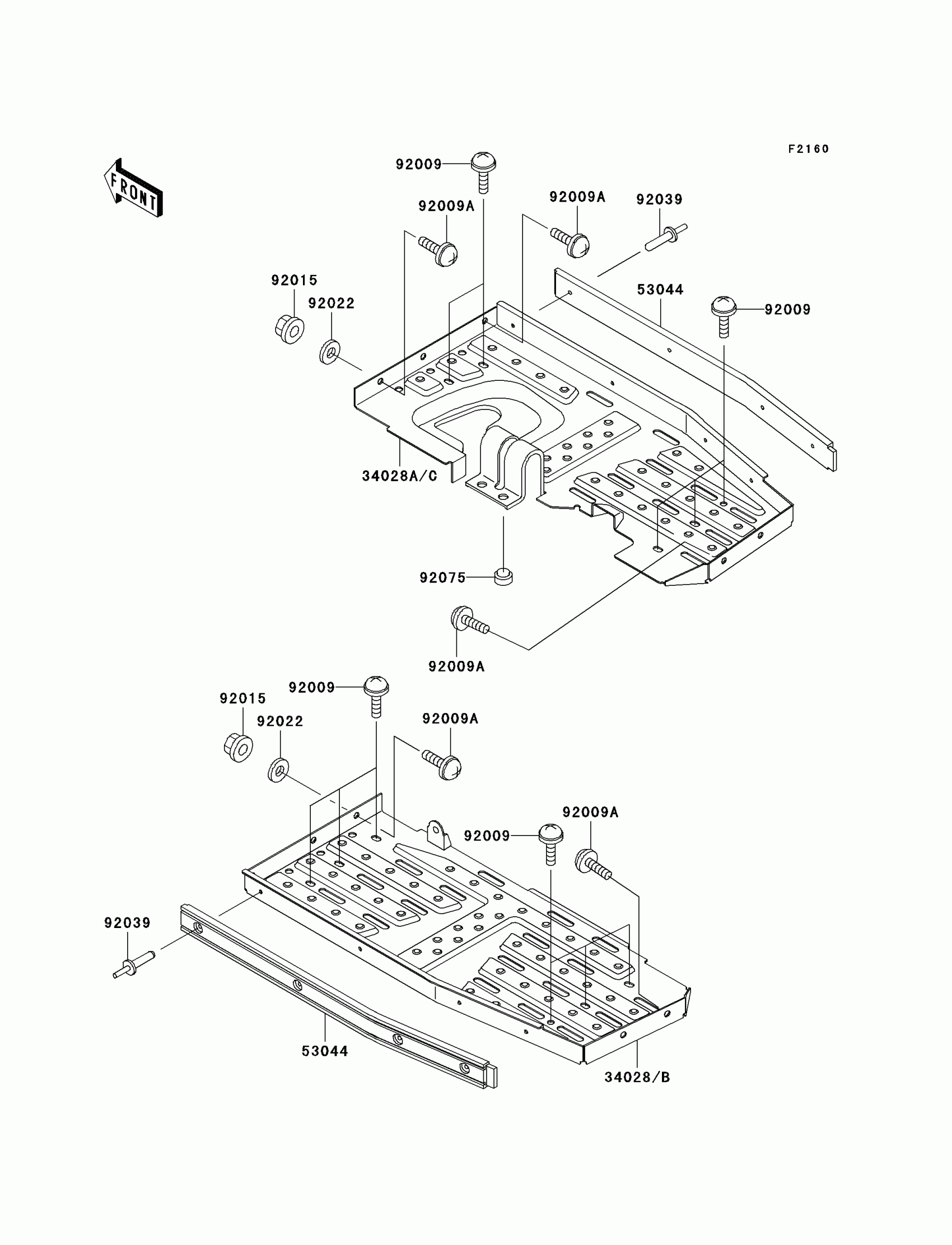

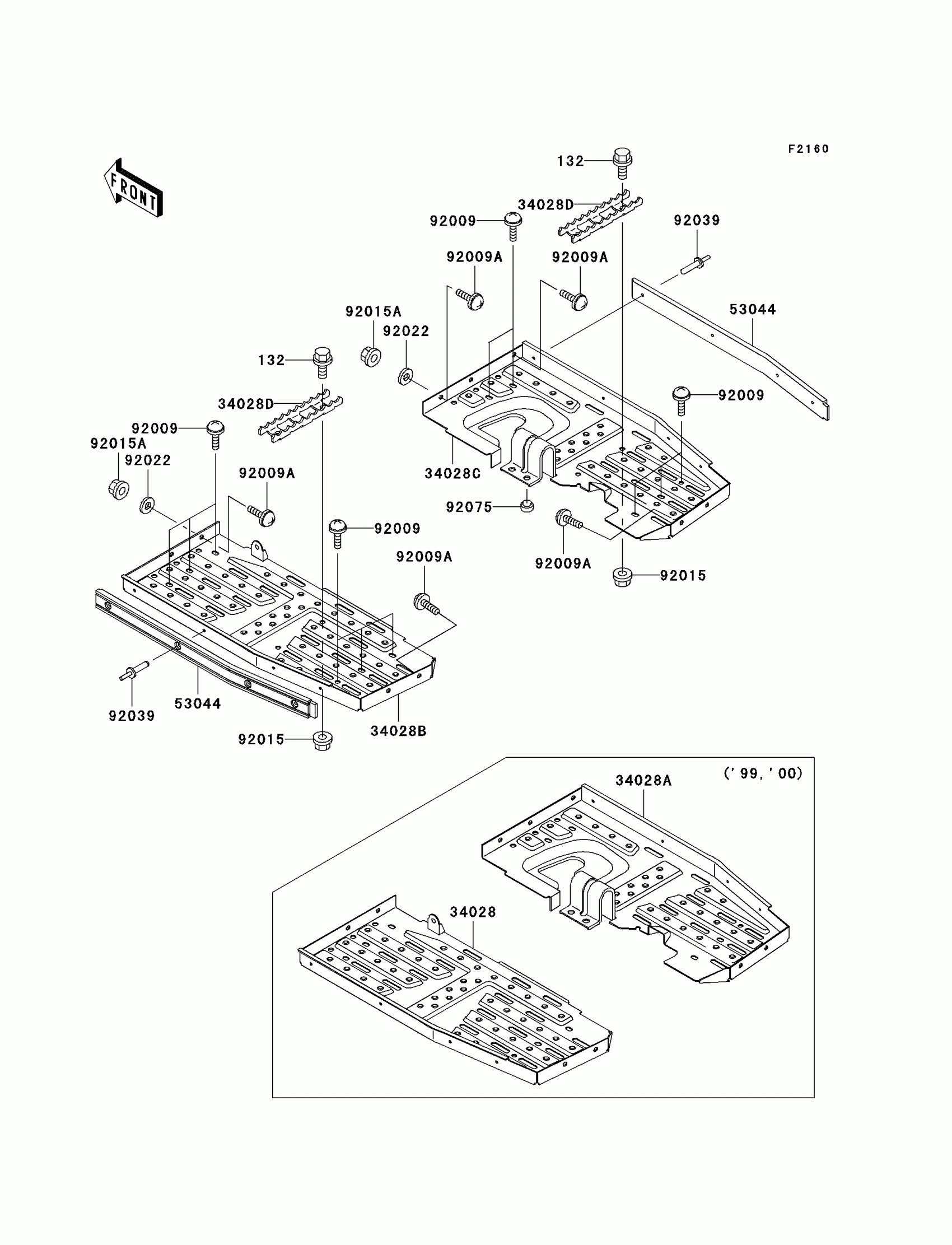

Kawasaki Prairie 400 4X4 Footrests Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132J0614

$2.33

34028B

STEP,FOOT BOARD,LH

34028-1502

$59.73

34028C

STEP,FOOT BOARD,RH

34028-1503

$96.88

34028D

STEP

34028-1506

Unavailable

53044

TRIM,FOOT BOARD

53044-1293

$17.57

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92039

RIVET

92039-1150

$3.92

92075

DAMPER

92075-1598

$8.58
