Description

Price

120

BOLT-SOCKET,6X16

120P0616

$2.33

132

BOLT-FLANGED-SMALL,6X35

132Y0635

$3.84

132A

BOLT-FLANGED-SMALL

132Y0665

$4.44

132B

BOLT-FLANGED-SMALL

132Y0675

$5.55

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

11009

GASKET

11009-2175

$1.14

13070

GUIDE,CHAIN

13070-1255

$6.46

14001

SET-CRANKCASE

14001-1225

Unavailable

14014

PLATE-POSITION

14014-1108

$23.81

14067

FITTING,BREATHER

14067-006

$21.09

14090

COVER

14090-1710

Unavailable

92037

CLAMP

92037-1860

Unavailable

92042

PIN,DOWEL,12X14

92042-031

$6.57

92045

BEARING-BALL,TMB304CCM

92045-1142

$40.43

92045A

BEARING-BALL,6305RHR4SH2

92045-1254

$46.77

92045B

BEARING-BALL,6307SH2-9C4

92045-1257

$67.02

92045C

BEARING-BALL,6208RSH2-9C3

92045-1258

$67.02

92045D

BEARING-BALL

92045-1326

Unavailable

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,OD=18

92055-048

$4.80

92066

PLUG,DRAIN

92066-2196

$4.01

92191

TUBE

92191-1114

$11.68

92200

WASHER,50X60.5X0.5

92200-1106

$9.92

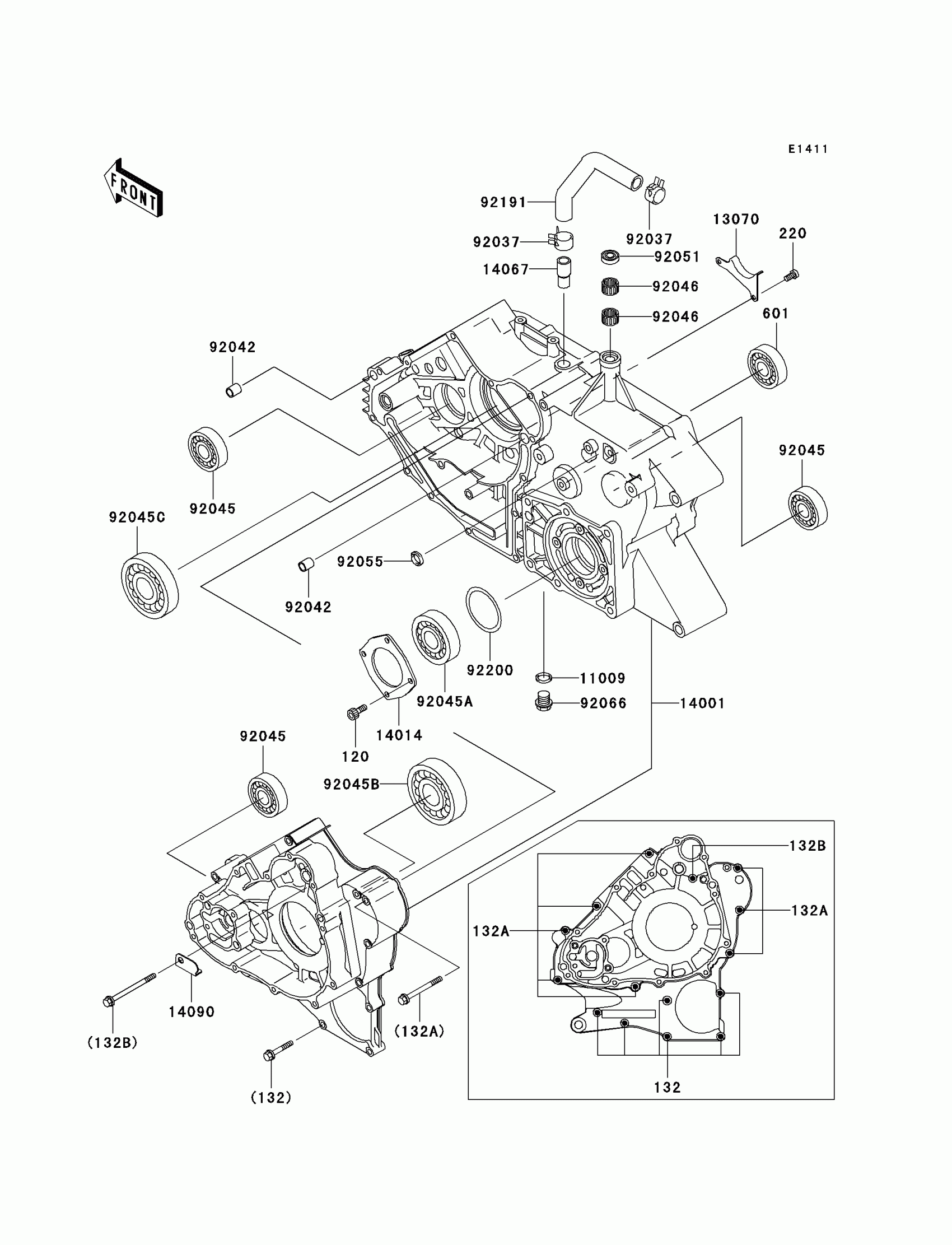

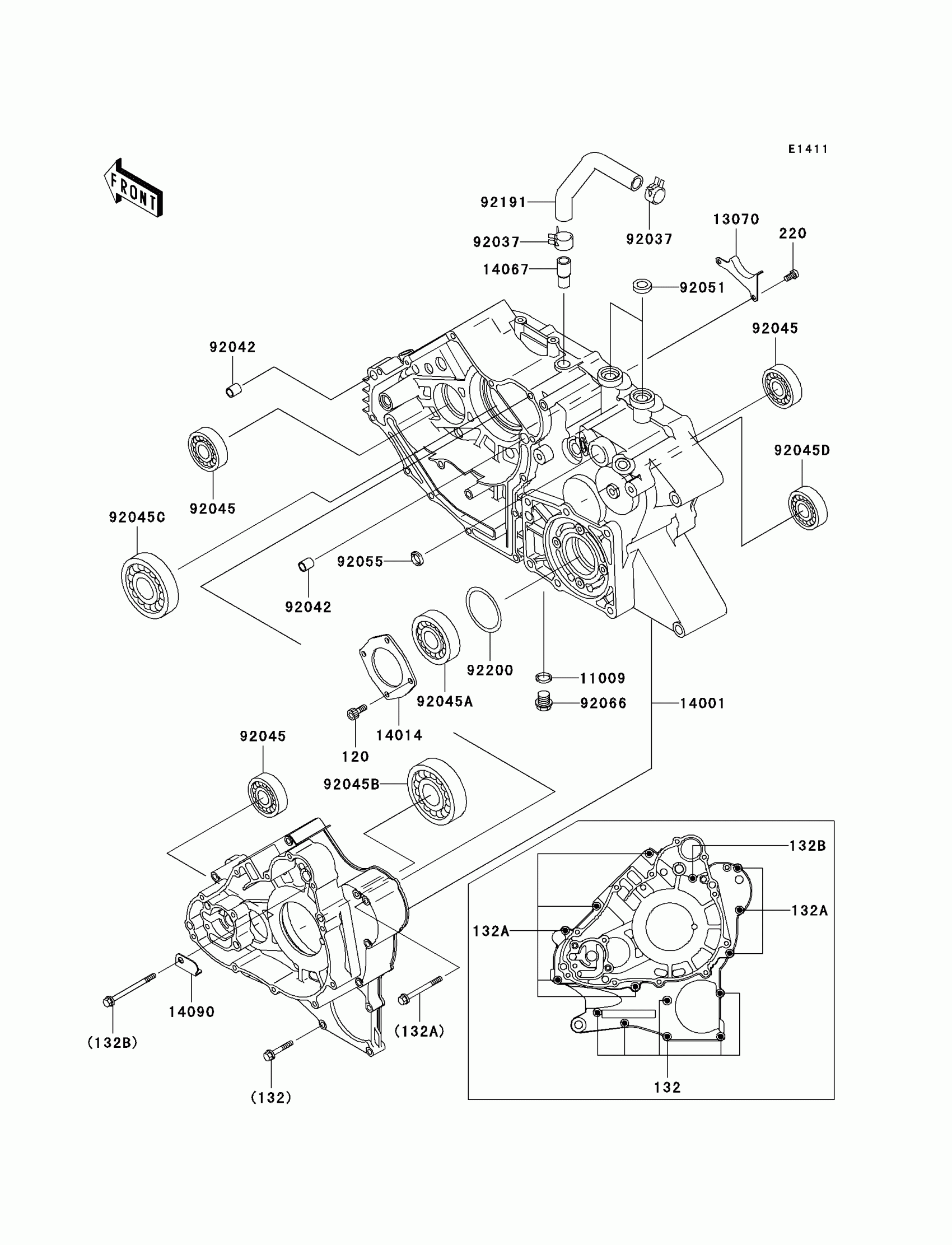

Kawasaki Prairie 400 4X4 Crankcase Diagram

BOLT-SOCKET,6X16

BOLT-FLANGED-SMALL,6X35

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL

SCREW-PAN-CROS,6X14

GASKET

GUIDE,CHAIN

SET-CRANKCASE

PLATE-POSITION

FITTING,BREATHER

COVER

CLAMP

PIN,DOWEL,12X14

BEARING-BALL,TMB304CCM

BEARING-BALL,6305RHR4SH2

BEARING-BALL,6307SH2-9C4

BEARING-BALL,6208RSH2-9C3

BEARING-BALL

SEAL-OIL,TB13225.5

RING-O,OD=18

PLUG,DRAIN

TUBE

WASHER,50X60.5X0.5
