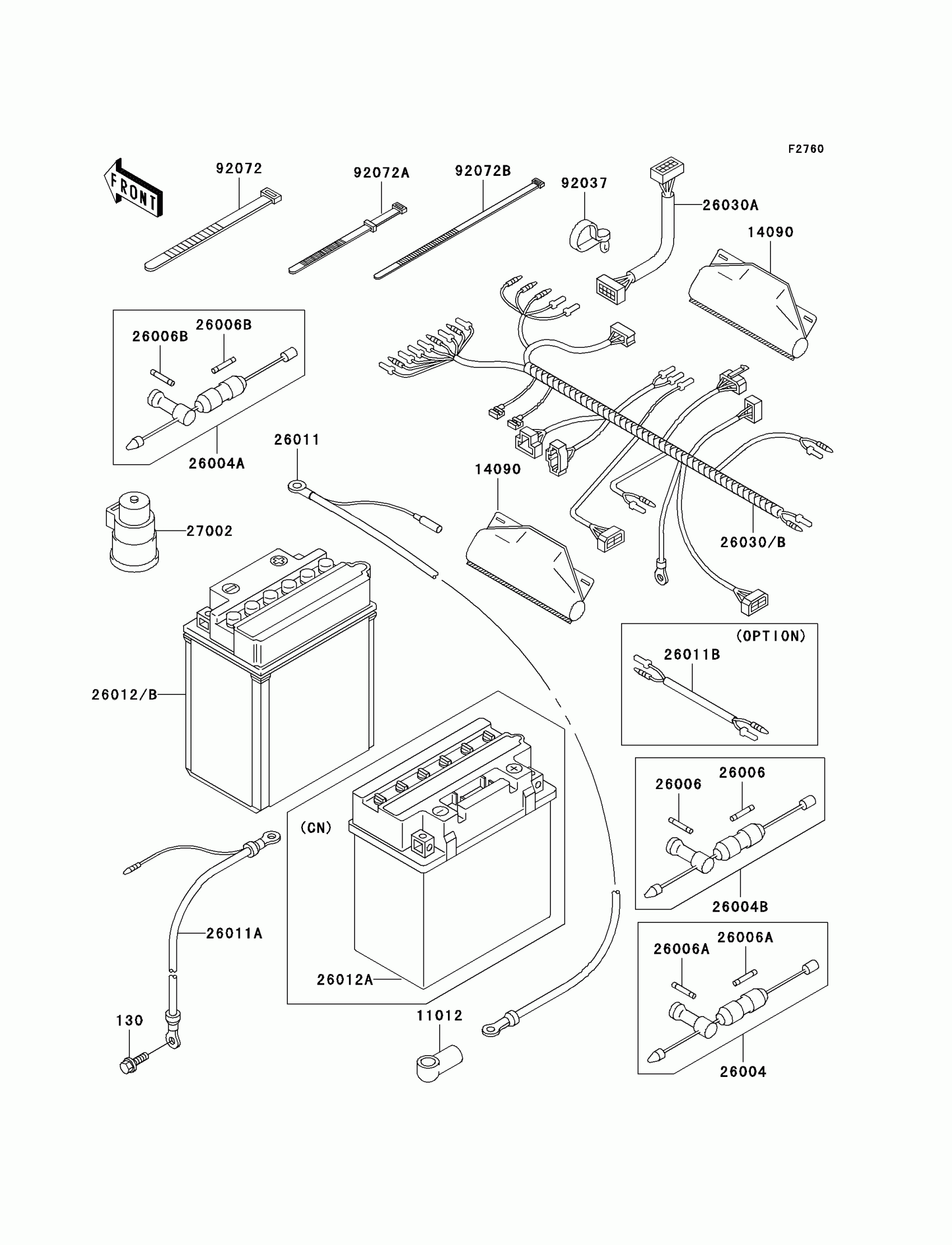

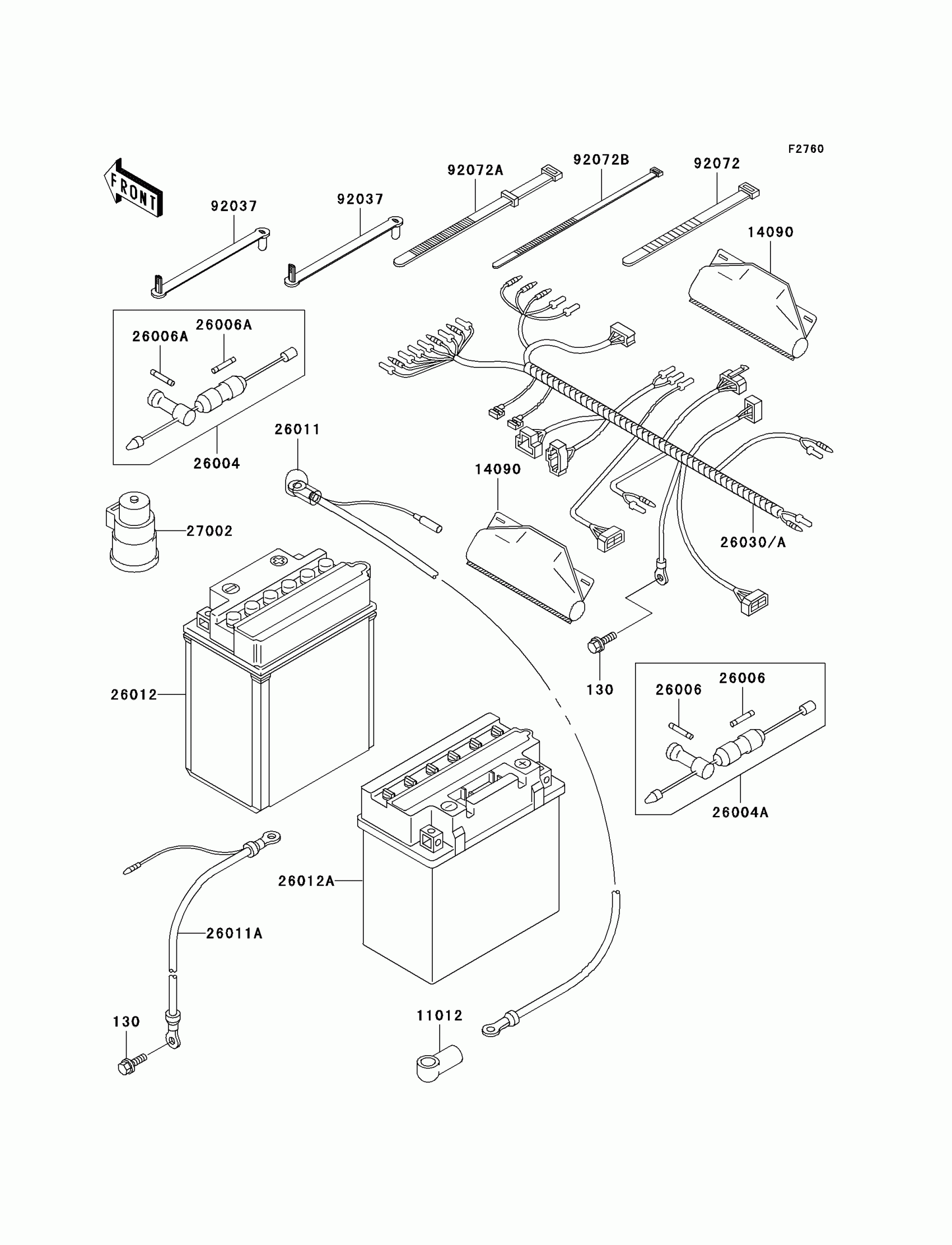

Kawasaki Prairie 400 4X4 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT

130B0612

$0.67

11012

CAP,TERMINAL

11012-1354

$10.19

14090

COVER,COUPLER

14090-1331

$8.51

26004

FUSE-ASSY

26004-1104

$34.78

26004A

FUSE-ASSY

26004-1114

$54.72

26004B

FUSE-ASSY

26004-3715

$57.35

26006

FUSE,30A,L=30

26006-1059

$4.96

26006A

FUSE,8A,L=30

26006-1062

$5.15

26006B

FUSE,GLASS TUBE,6.4X30,5A,BRN

26006-1074

$6.16

26011

WIRE-LEAD,BATTERY(+)

26011-1513

$28.53

26011A

WIRE-LEAD,BATTERY(-)

26011-1637

$26.84

26011B

WIRE-LEAD,ACCESSORY CONNECT

26011-1763

Unavailable

26030A

HARNESS

26030-1650

$36.45

26030B

HARNESS,MAIN

26030-1781

$164.05

27002

RELAY-ASSY

27002-1095

$58.83

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

26012A

BATTERY,YTX14-BS,12V 12AH

26012-1302

$123.84

26012B

BATTERY,YB14A-A2,12V 14AH

26012-1388

Unavailable

92072B

BAND,L=188

92072-1239

$1.73

92072B

BAND,L=188

92072-1239

$1.73
