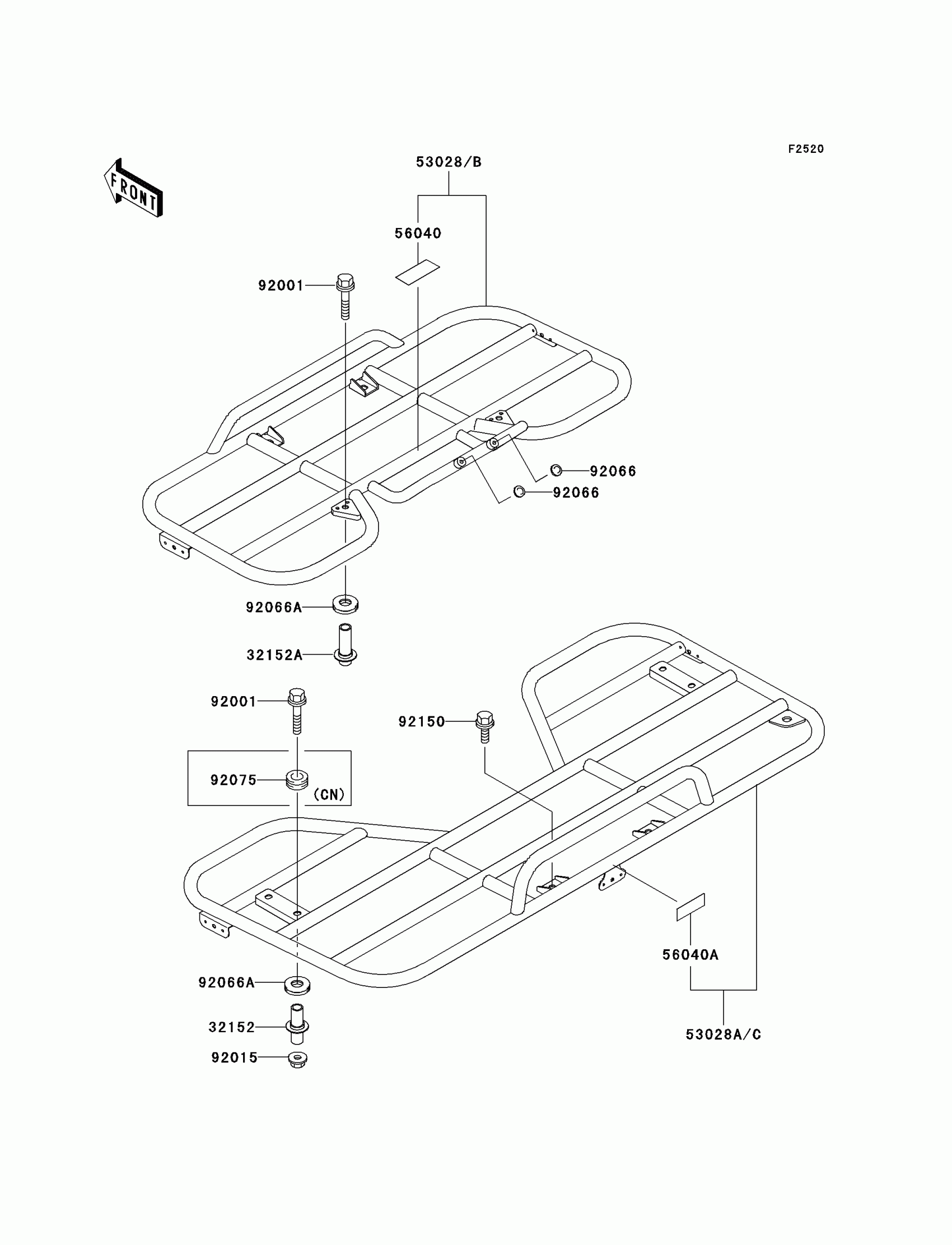

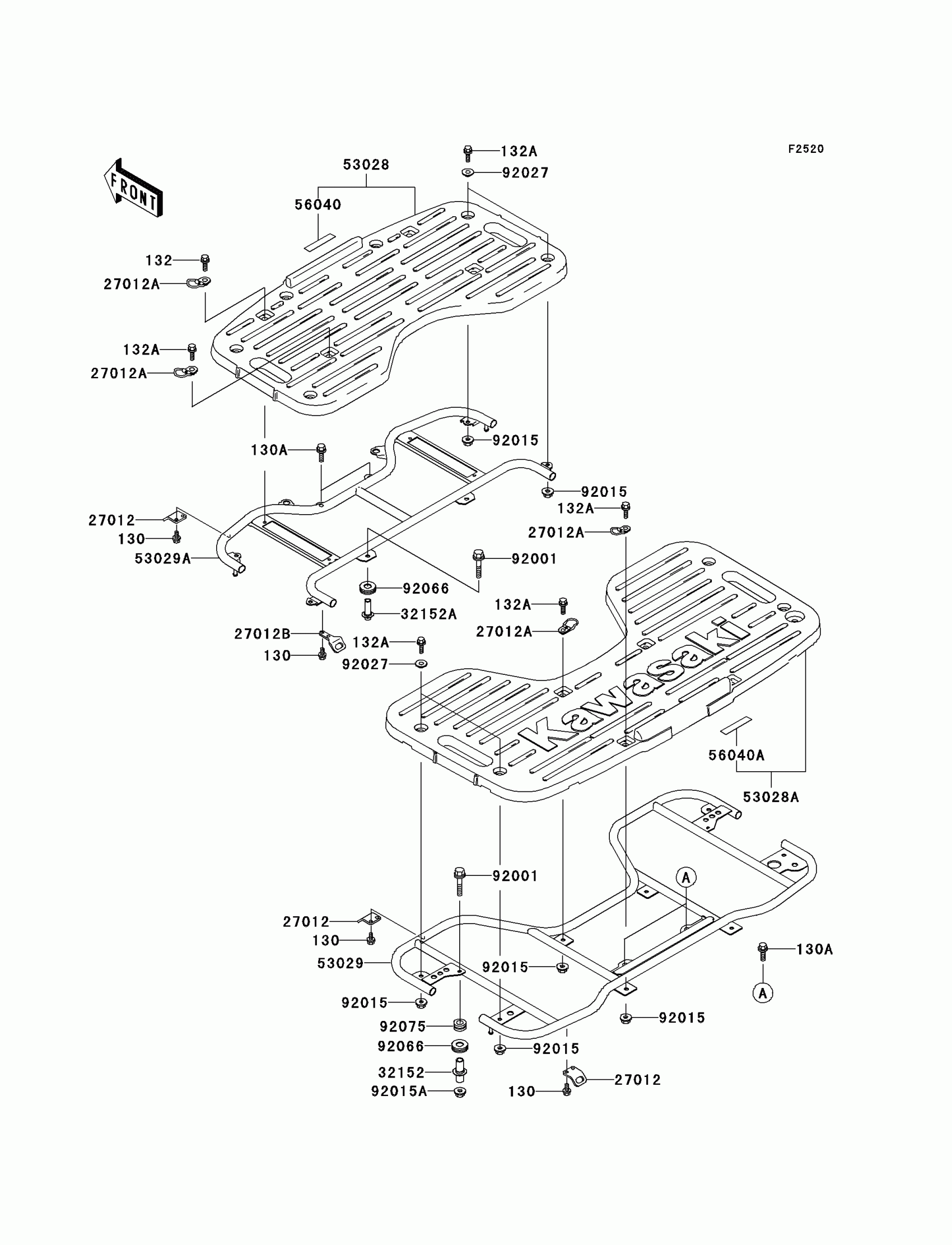

Kawasaki Prairie 400 4X4 Carrier(s) Diagram

Description

Price

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,8X16

130J0816

$1.66

132

BOLT-FLANGED-SMALL,8X20

132J0820

$3.84

132A

BOLT-FLANGED-SMALL,8X25

132J0825

$3.84

27012

HOOK

27012-1576

$7.80

27012A

HOOK

27012-1577

$14.45

27012B

HOOK

27012-1578

Unavailable

32152

PIPE,REAR CARRIER

32152-1066

$11.56

32152A

PIPE,FRONT CARRIER

32152-1067

$12.97

53028

CARRIER-ASSY,FR,F.BLACK

53028-1093-6Z

$179.57

53028A

CARRIER-ASSY,RR,F.BLACK

53028-1094-6Z

$217.76

53029

CARRIER,RR

53029-1208

$109.88

53029A

CARRIER,FR

53029-1210

$77.50

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1321

$3.69

56040A

LABEL-WARNING,MAXIMUM LOAD

56040-1322

$3.69

92001

BOLT,FLANGED,8X80,BLA

92001-1640

$4.60

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015A

NUT,FLANGED,LOCK,8MM

92015-1696

$4.67

92027

COLLAR

92027-1908

$8.58

92066

PLUG

92066-1438

$5.17

92075

DAMPER

92075-1086

Unavailable
