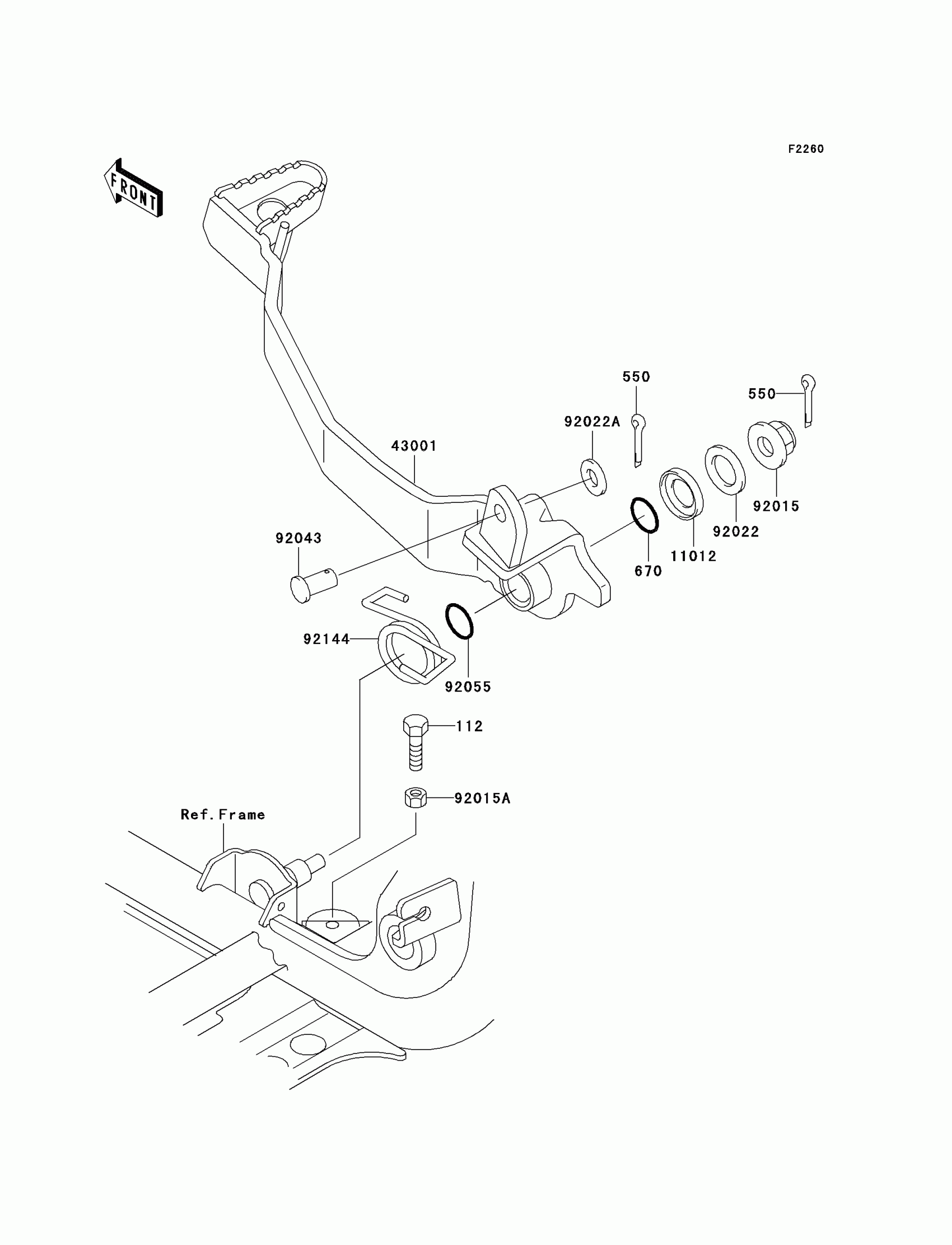

Kawasaki Prairie 400 4X4 Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

$4.30

550

PIN COTTER 2.0X15

550D2015

$1.04

670

O RING,18MM

670B2018

$1.42

11012

CAP

11012-1516

$5.80

43001

LEVER-BRAKE,PEDAL

43001-1369

$69.20

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$4.31

92015A

NUT,6MM

92015-1410

$3.92

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92022A

WASHER,8.5X16X1.2

92022-1582

$0.96

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,13.5MM

92055-073

$10.04

92144

SPRING,BRAKE PEDAL RETURN

92144-1928

Unavailable
