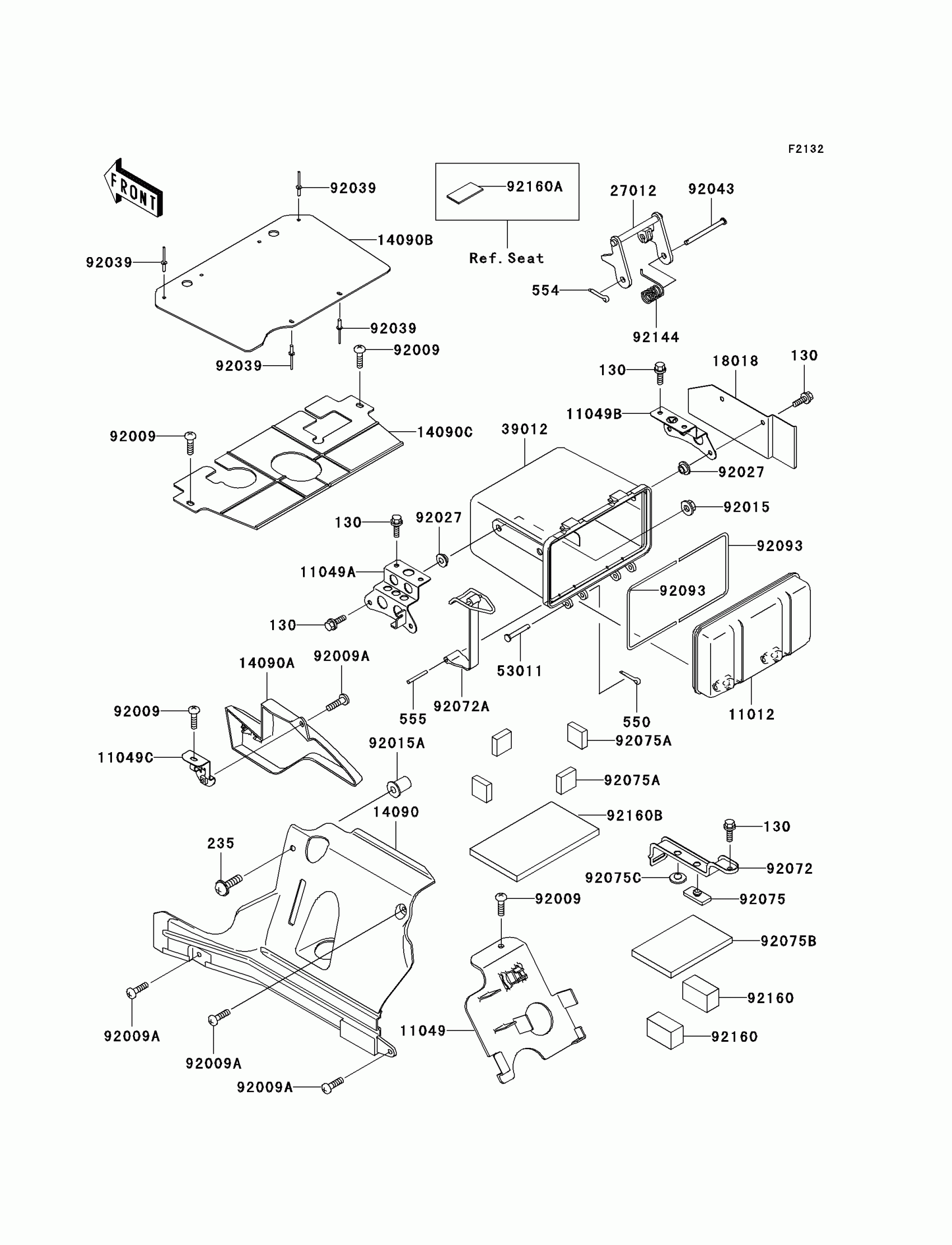

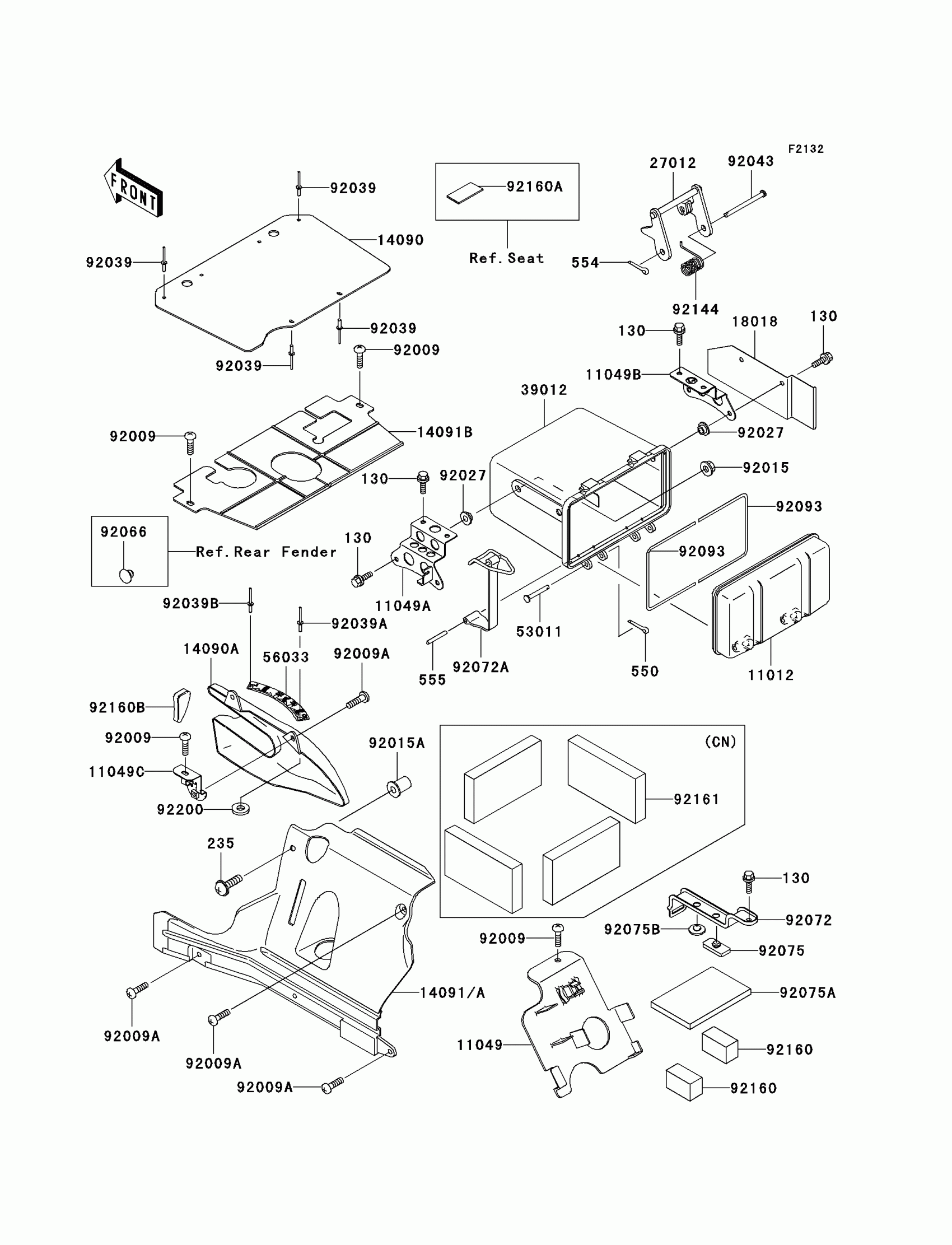

Kawasaki Prairie 400 4X4 Battery Case Diagram

#

Description
Price

11012

CAP,STORAGE CASE

11012-1951

$8.88

11049

BRACKET,ELECTRIC BASE

11049-1516

Unavailable

11049A

BRACKET,STORAGE CASE,LH

11049-1733

$14.40

11049B

BRACKET,STORAGE CASE,RH

11049-1734

$13.26

11049C

BRACKET

11049-1738

$5.28

14090

COVER,FRONT COVER

14090-1723

$17.56

14090A

COVER,SHIFT LEVER

14090-1973

$9.99

14091A

COVER,ENGINE,LH,F.BLACK

14091-1173-6Z

$22.05

14091B

COVER,REAR COVER

14091-1379

Unavailable

18018

PLATE-HEAT GUARD

18018-1127

$13.05

27012

HOOK,SEAT

27012-1381

$35.82

39012

CASE-STORAGE

39012-1059

Unavailable

53011

PIN, DUAL SEAT PIVOT

53011-006

$5.24

56033

LABEL-MANUAL,SHIFT PATTERN

56033-1142

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR,L=5.6

92027-1933

$5.78

92039

RIVET

92039-1233

$2.37

92039A

RIVET

92039-1244

$1.94

92039B

RIVET,3.2X8

92039-3763

$1.81

92043

PIN,6X77

92043-1367

$7.79

92066

PLUG

92066-1485

$2.44

92072

BAND,BATTERY

92072-1333

$6.23

92072A

BAND,STORAGE CASE

92072-1337

$30.84

92075

DAMPER

92075-1054

$5.00

92075B

DAMPER,RUBBER

92075-261

$4.31

92093

SEAL

92093-1457

$8.93

92144

SPRING,SEAT HOOK

92144-1174

$6.82

92160A

DAMPER

92160-1846

Unavailable

92160B

DAMPER

92160-1946

$7.97

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

235

SCREW-PAN-WP-CROS

235C0516

$1.20

550

PIN-COTTER,2.0X12

550D2012

$1.11

554

PIN,SNAP

554A0600

$0.93

555

PIN-SPRING

555A0436

$4.92

92200

WASHER,3.5X8X1

92200-1251

$1.00

92075A

DAMPER,BATTERY

92075-1997

$8.98

92160

DAMPER

92160-1744

$5.54

92161

DAMPER,BATTERY

92161-1061

Unavailable
