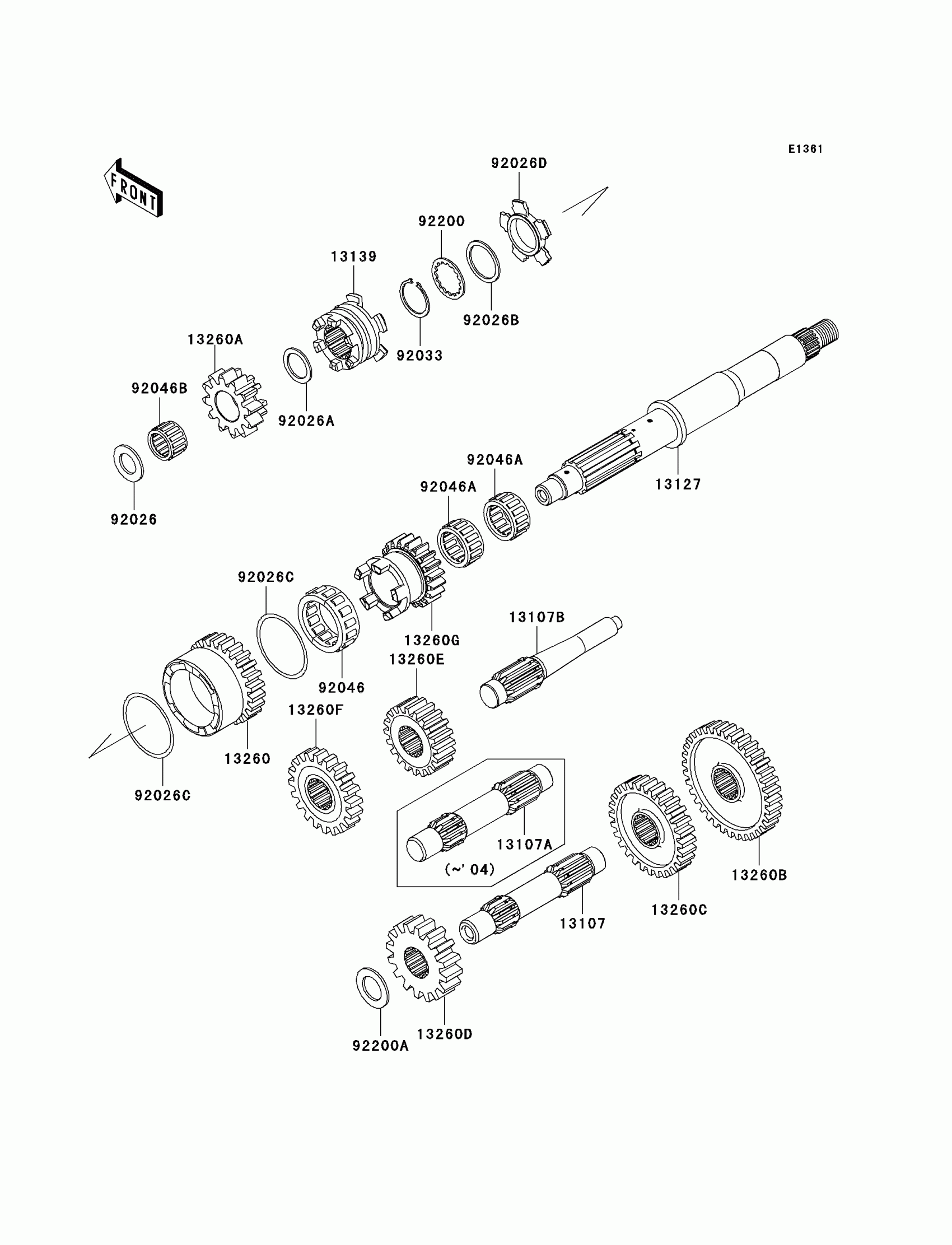

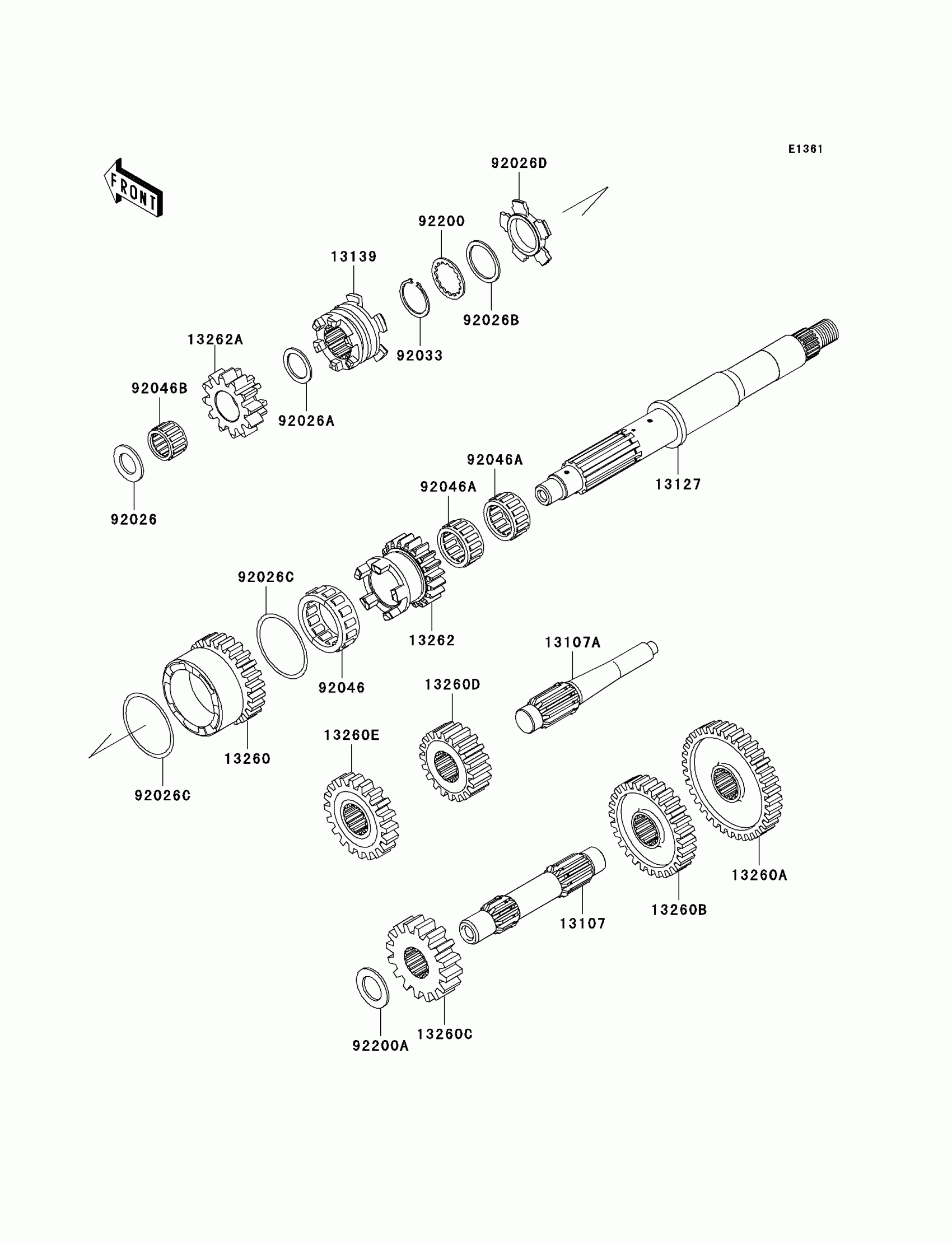

Kawasaki Prairie® 360 Transmission Diagram
#
Description
Price
13107
SHAFT,COUNTER
13107-0113
$148.22
13107A
SHAFT,REVERSE,IDLE
13107-1437
Unavailable
13127
SHAFT-TRANSMISSION INPUT
13127-1304
Unavailable
13139
SHIFTER
13139-0003
Unavailable
13260
GEAR,INPUT HIGH,26T
13260-1867
$141.43
13260A
GEAR,DRIVEN LOW,36T
13260-1869
Unavailable
13260B
GEAR,DRIVEN HIGH,30T
13260-1870
Unavailable
13260C
GEAR,OUTPUT DRIVE,18T
13260-1871
Unavailable
13260D
GEAR,OUTPUT REVERSE,16T
13260-1872
$115.72
13260E
GEAR,DRIVEN REVERSE,16T
13260-1873
$115.72
13262
GEAR,INPUT LOW,20T
13262-0234
$134.04
13262A
GEAR,INPUT REVERSE,12T
13262-0235
$113.25
92026
SPACER,17.3X30X2.0
92026-1415
$8.05
92026A
SPACER,21.2X29X1.6
92026-1568
$7.98
92026B
SPACER,28.2X34.5X1.6
92026-1587
$4.18
92026C
SPACER,48.2X54.3X1.0
92026-1599
$6.18
92026D
SPACER,HI&LOW
92026-1600
$51.62
92033
RING-SNAP,25.9X30.6X1.2
92033-1037
$4.65
92046
BEARING-NEEDLE,HIGH GEAR
92046-1276
$36.04
92046A
BEARING-NEEDLE,FWF-283317
92046-1278
$23.34
92046B
BEARING-NEEDLE,REVERSE GEAR
92046-1279
$20.02
92200
WASHER,28.5X34.0X1.5
92200-1240
$10.28
92200A
WASHER,20.3X33X2.0
92200-1351
$2.67
