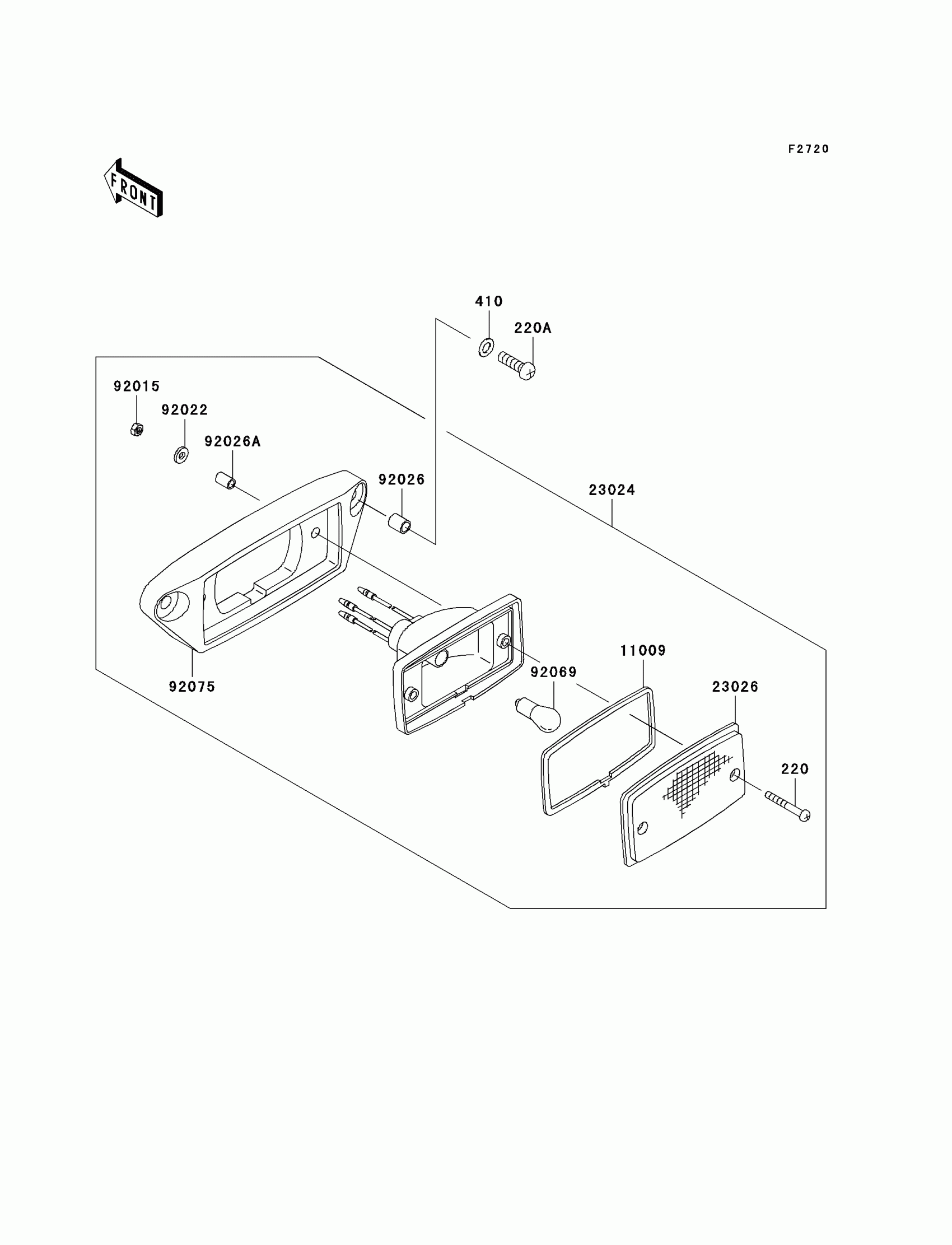

Kawasaki Prairie 360 Taillight(s)(-JKBVFHB1 3B503051) Diagram

Description

Price

220

SCREW-PAN-CROS

220C0430

$3.57

220A

SCREW-PAN-CROSS,6X20

220F0620

$1.47

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

$0.72

11009

GASKET,TAIL LAMP

11009-4004

$7.61

23024

LAMP-ASSY-TAIL

23024-7501

$119.90

23026

LENS,TAIL LAMP

23026-1239

$17.69

92015

NUT,4MM

92015-1550

$3.35

92022

WASHER,PLAIN,4MM

92022-1762

$3.35

92026

SPACER,6.3X8.3X10

92026-1260

$4.60

92026A

SPACER,4.5X6.5X10

92026-1261

$5.24

92069

BULB,12V 18/5W

92069-1089

$3.60

92075

DAMPER,TAIL LAMP

92075-1782

$43.64
