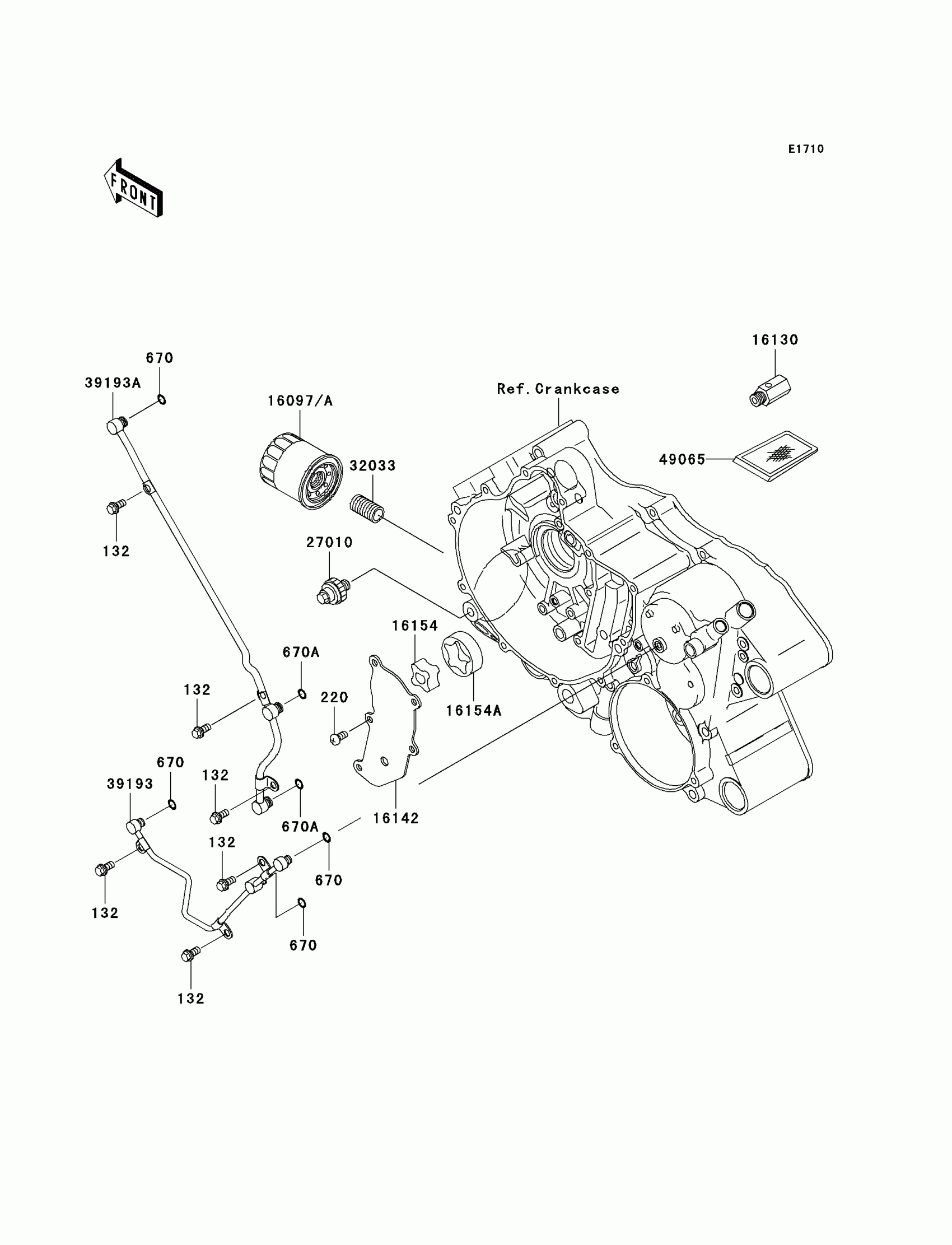

Kawasaki Prairie® 360 Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

220

SCREW-PAN-CROS,6X12

220AA0612

$1.19

670

O RING

670D1505

$4.31

670A

O RING,7MM

670D1507

$1.70

16097

FILTER-ASSY-OIL

16097-0003

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP,OIL

16142-1170

$3.90

16154

ROTOR-PUMP,INNER

16154-1128

$23.05

16154A

ROTOR-PUMP,OUTER

16154-1129

$23.05

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32033

PIPE,OIL FILTER

32033-1535

$12.96

39193

PIPE-OIL

39193-0021

$68.23

39193A

PIPE-OIL

39193-0022

$68.19

49065

FILTER-OIL

49065-1086

$13.66
