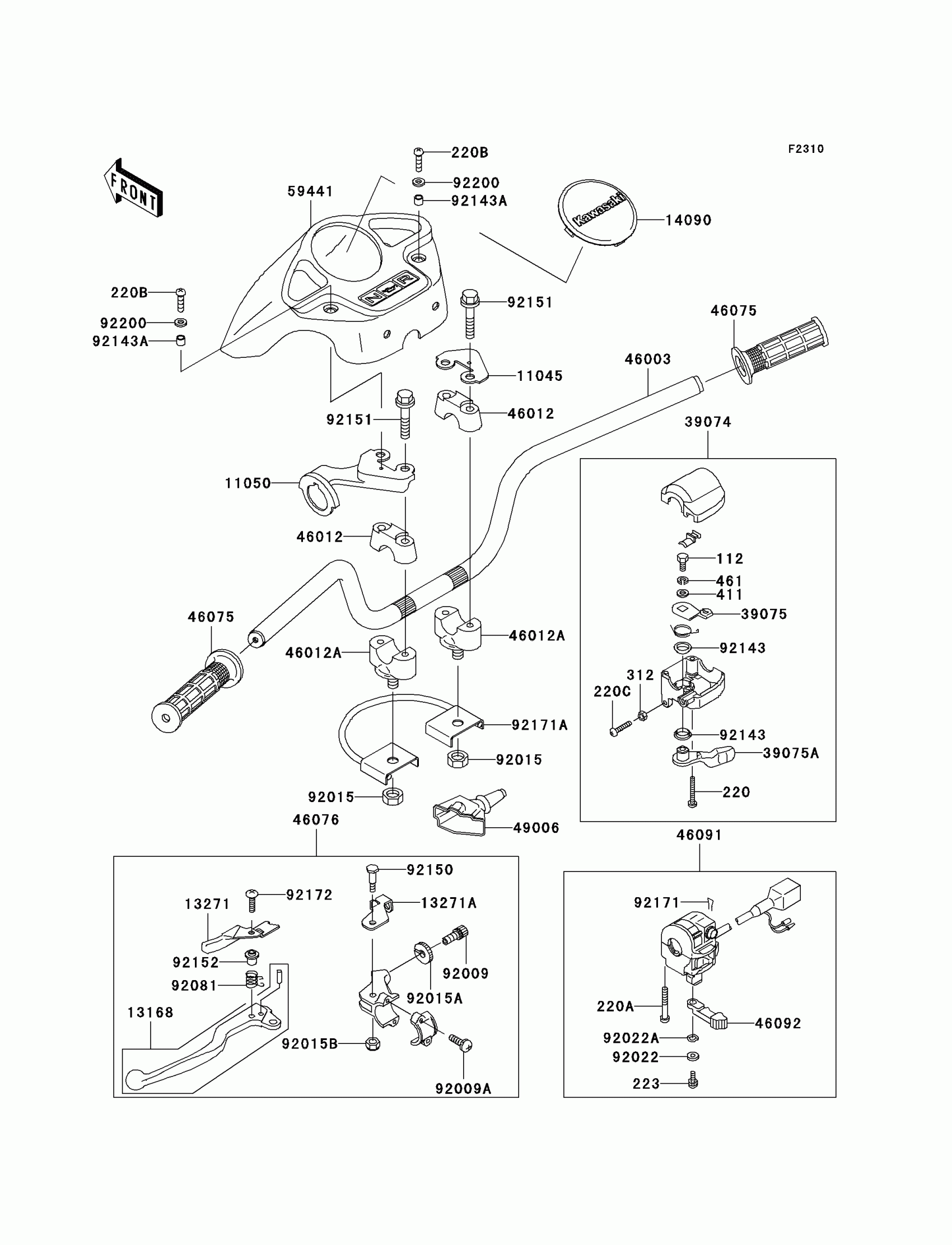

Kawasaki Prairie® 360 Handlebar Diagram
#
112
BOLT-UPSET,6X14
112AA0614
$0.49
220
SCREW-PAN-CROS,4X16
220AB0416
$1.81
220A
SCREW-PAN-CROSS,5X30
220AB0530
$0.75
220B
SCREW-PAN-CROS,5X35
220AB0535
$2.06
220C
SCREW-PAN-CROSS,6X30
220AB0630
$1.89
11045
BRACKET,HANDLE COVER,RH
11045-1925
$7.69
11050
BRACKET,HANDLE COVER,LH
11050-1727
$17.55
13168
LEVER,LH
13168-1672
$36.11
13271
PLATE,LEVER LOCK
13271-0011
$15.39
13271A
PLATE,LOCK
13271-1259
$17.76
14090
COVER,BLIND CAP,F.BLACK
14090-1945-6Z
$16.58
39074
LEVER-ASSY-THROTTLE
39074-1055
$79.09
39075
LEVER-THROTTLE,ARM
39075-1054
$11.51
39075A
LEVER-THROTTLE
39075-1059
$33.25
46003
HANDLE
46003-7503
$71.97
46012
HOLDER-HANDLE
46012-1168
$16.33
46012A
HOLDER-HANDLE
46012-7501
$30.08
46075
GRIP,HANDLE
46075-7501
$19.78
46076
LEVER-ASSY-GRIP,LH
46076-1224
$52.54
46091
HOUSING-ASSY-CONTROL,LH
46091-1848
$228.81
46092
LEVER-GRIP,CHOKE
46092-1217
$5.47
49006
BOOT
49006-1261
$22.51
59441
COVER-HANDLE,F.BLACK
59441-7501-6Z
$37.36
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92009A
SCREW,6X20
92009-1841
$6.18
92015
NUT,10MM
92015-1429
$6.88
92015A
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015B
NUT
92015-1829
$4.26
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92143
COLLAR
92143-1138
$3.56
92143A
COLLAR,5.6X8X7
92143-1336
$1.24
92151
BOLT,FLANGED,8X40
92151-2130
$1.80
92152
COLLAR
92152-1176
$4.31
92153
BOLT
92153-1919
$17.27
92171
CLAMP,CLIP
92171-1095
$3.09
92171A
CLAMP,HARNESS&CABLE
92171-1503
$21.20
92172
SCREW,5X20
92172-0078
$2.80
92200
WASHER,4.5X11.5X0.8
92200-1361
$4.38
223
SCREW-PAN-WS-CROS,5X12
223AB0512
$4.32
312
NUT-HEX,6MM,BLACK
312AB0600
$3.92
411
WASHER-PLAIN,6MM
411AA0600
$2.92
461
WASHER-SPRING,6MM
461DA0600
$0.71
