2005 Kawasaki Prairie 360 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2005 Kawasaki Prairie 360, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

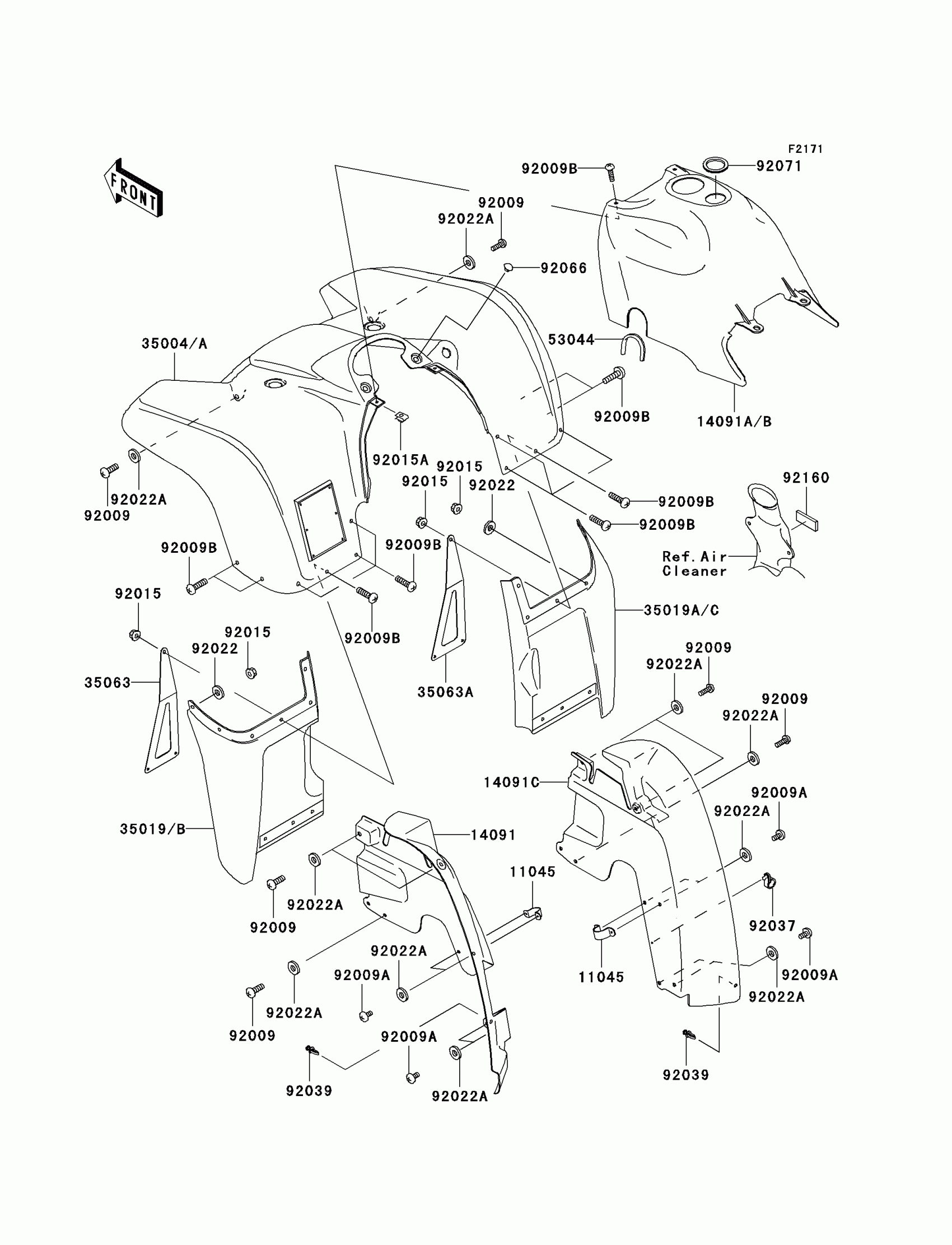

2005 Kawasaki Prairie 360 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,FENDER

11045-1882

1
Out of stock

14091

COVER,INNER FLAP,LH

14091-7521

1
Out of stock

14091A

COVER,FUEL TANK,A.RED

14091-7525-260

1
Out of stock

14091B

COVER,FUEL TANK,H.GREEN

14091-7525-6A

1
Out of stock

14091C

COVER,INNER FLAP,RH

14091-7527

1
Out of stock

35004

FENDER-FRONT,A.RED

35004-1378-260

1
Out of stock

35004A

FENDER-FRONT,H.GREEN

35004-1378-6A

1
Out of stock

35019

FLAP,FR,LH,F.BLACK

35019-0021-6Z

1
Out of stock

35019A

FLAP,FR,RH,F.BLACK

35019-0022-6Z

1
Out of stock

35063

STAY,FRONT FENDER,LH

35063-7506

1
Out of stock

35063A

STAY,FRONT FENDER,RH

35063-7507

1
Out of stock

53044

TRIM,L=150

53044-1303

1

$3.92

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92009B

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,CLAMP,6MM

92015-1678

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92066

PLUG

92066-1485

1
Out of stock

92071

GROMMET,FUEL TANK COVER

92071-7503

1
Out of stock

92160

DAMPER

92160-1834

1
Out of stock
