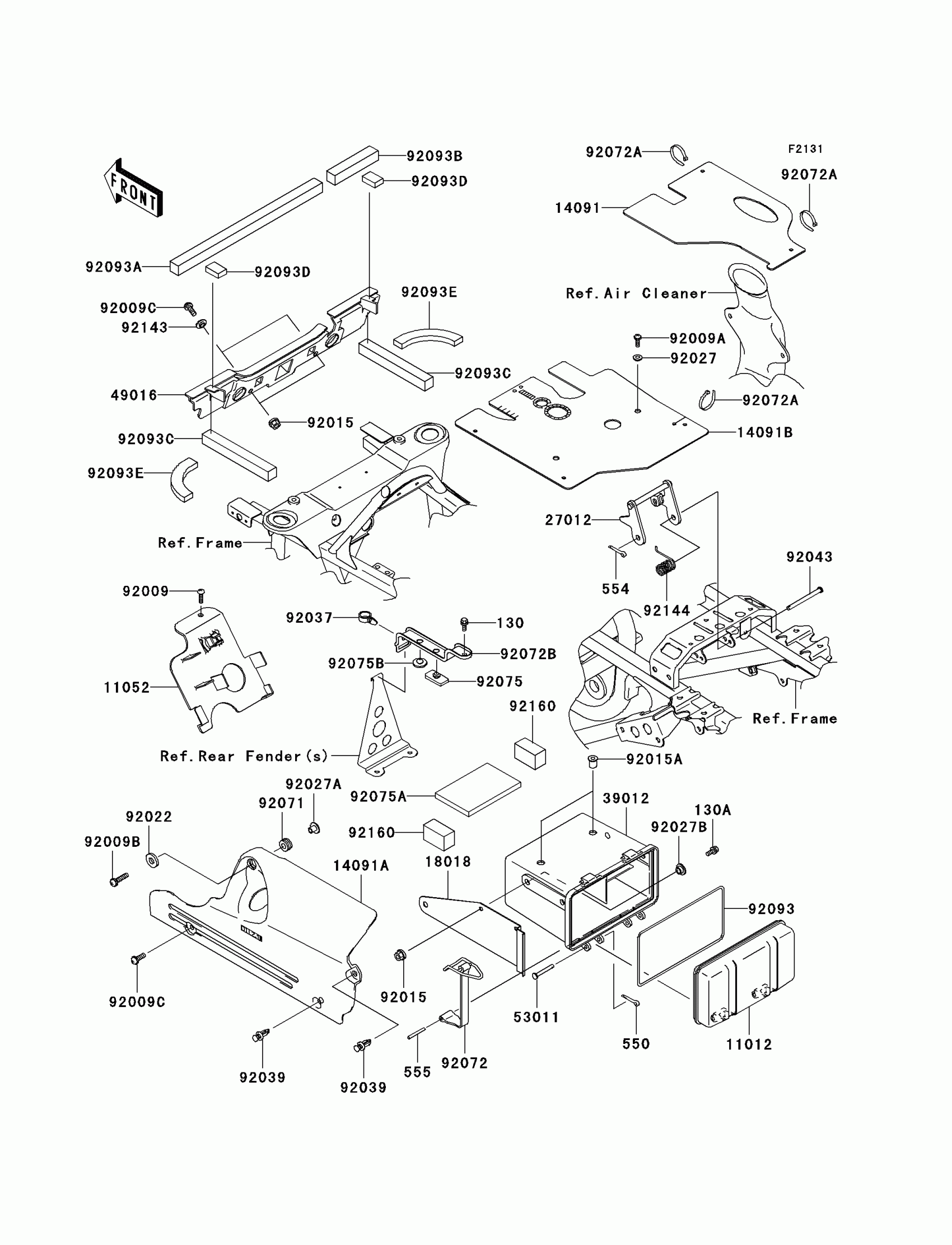

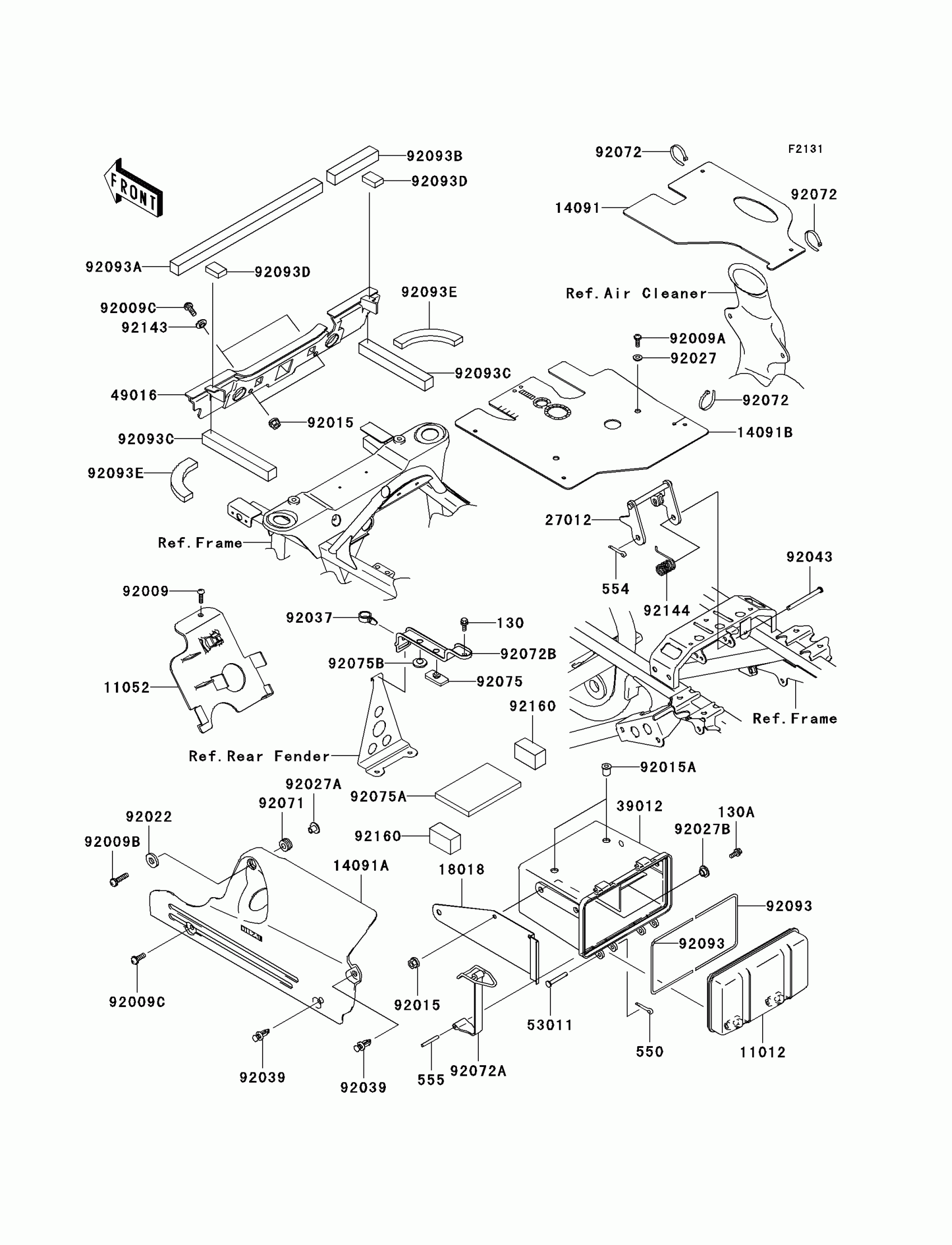

Find the part on the Frame Fittings diagram for your 2005 Kawasaki Prairie 360, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Prairie 360 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

11012

CAP,STORAGE CASE

11012-1951

1
Out of stock

11052

BRACKET,ELECTRIC BASE

11052-7529

1
Out of stock

14091

COVER,CARBURETOR

14091-7516

1
Out of stock

14091A

COVER,ENGINE,F.BLACK

14091-7524-6Z

1
Out of stock

14091B

COVER,CYLINDER HEAD BRACKET

14091-7526

1
Out of stock

18018

PLATE-HEAT GUARD

18018-7501

1
Out of stock

27012

HOOK,SEAT

27012-1381

1
Out of stock

39012

CASE-STORAGE

39012-7501

1

$21.02

In stock

49016

COVER-SEAL

49016-1221

1
Out of stock

53011

1

$4.61

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92009B

SCREW,6X25

92009-1465

1
Out of stock

92009C

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92022

WASHER,7X18X1.2

92022-1545

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92027A

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92027B

COLLAR,L=5.6

92027-1933

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92043

PIN,6X77

92043-1367

1
Out of stock

92071

GROMMET

92071-3716

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92072A

BAND,STORAGE CASE

92072-1337

1
Out of stock

92072B

BAND,BATTERY

92072-7501

1
Out of stock

92075

DAMPER

92075-1054

1
Out of stock

92075A

DAMPER,BATTERY

92075-1997

1
Out of stock

92075B

DAMPER,RUBBER

92075-261

1
Out of stock

92093

SEAL

92093-1457

1
Out of stock

92093A

SEAL

92093-1577

1
Out of stock

92093B

SEAL

92093-1578

1
Out of stock

92093C

SEAL

92093-1580

1
Out of stock

92093D

SEAL

92093-1581

1
Out of stock

92093E

SEAL

92093-1582

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92144

SPRING,SEAT HOOK

92144-1174

1
Out of stock

92160

DAMPER

92160-1744

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

550

PIN-COTTER,2.0X12

550D2012

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock

555

PIN-SPRING

555A0436

1
Out of stock
