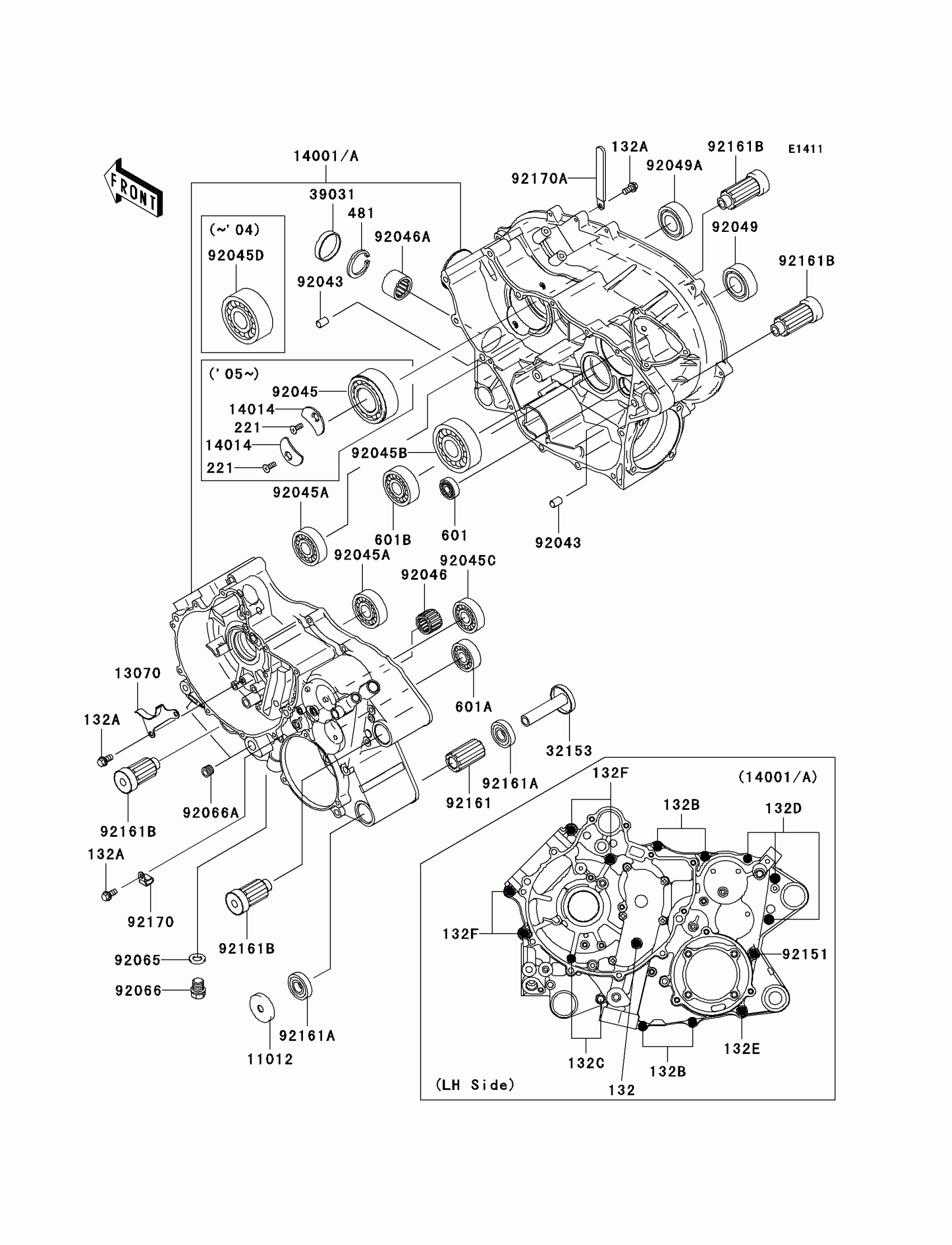

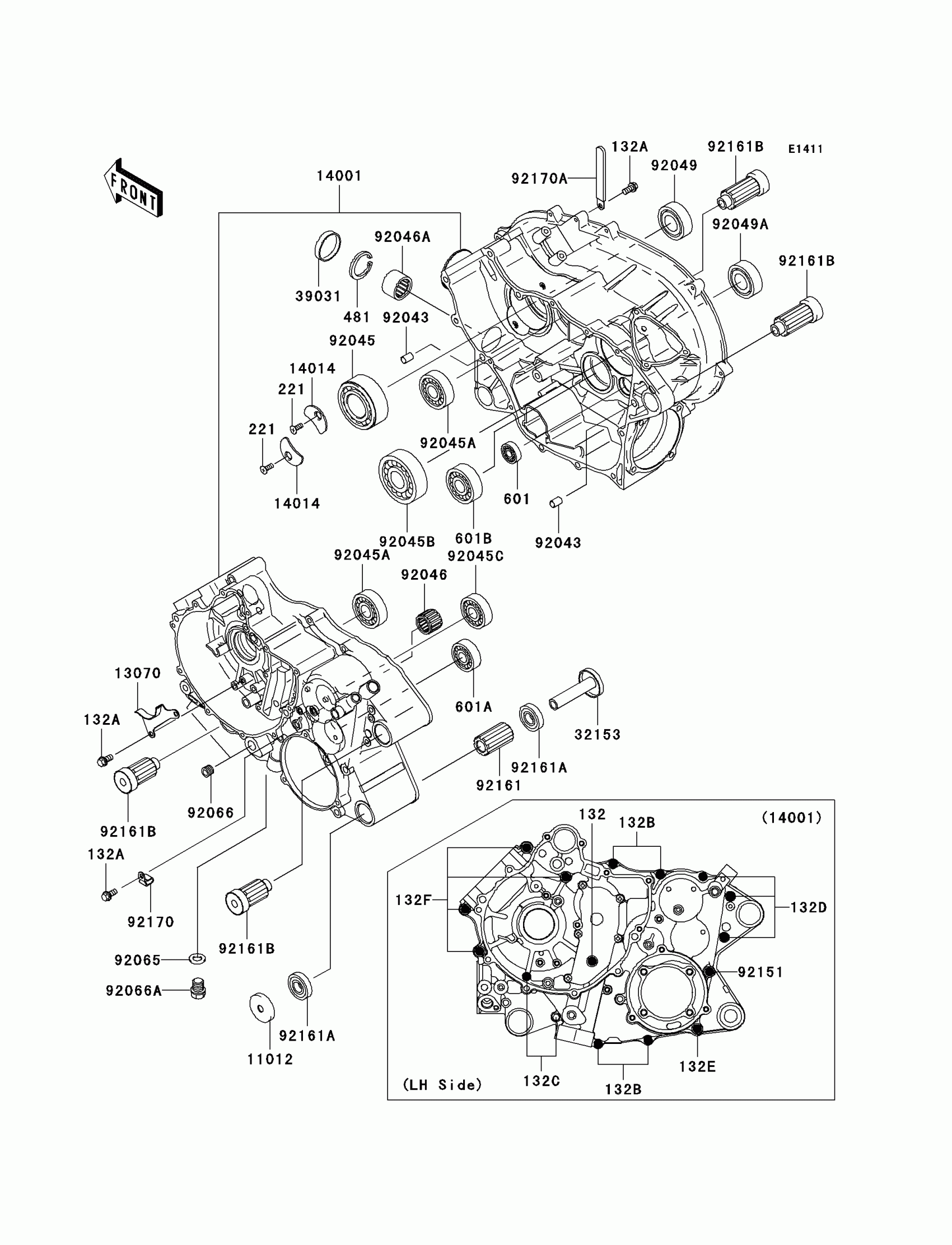

Kawasaki Prairie® 360 Crankcase Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,8X85
132BB0885
$4.16
132A
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132B
BOLT-FLANGED-SMALL,6X40
132BD0640
$5.25
132C
BOLT-FLANGED-SMALL,6X65
132BD0665
$4.76
132D
BOLT-FLANGED-SMALL,6X85
132BD0685
$6.25
132E
BOLT-FLANGED-SMALL,8X110
132BD08110
$5.22
132F
BOLT-FLANGED-SMALL,8X75
132BD0875
$3.13
221
SCREW-CSK-CROS,6X16
221AA0616
$0.59
481
CIRCLIP-TYPE-C,37MM
481J3700
$3.04
601
BEARING-BALL
601A6000
$12.89
601A
BEARING-BALL,#6004
601A6004
$11.91
601B
BEARING-BALL,#6304
601A6304
$14.55
11012
CAP,ENGINE BRACKET
11012-1228
$7.61
13070
GUIDE,CHAIN
13070-1255
$6.46
14001
SET-CRANKCASE
14001-0031
$761.22
14014
PLATE-POSITION
14014-0016
$14.96
32153
PIPE
32153-1873
$15.28
39031
CAP-END
39031-1070
$7.22
92043
PIN,10X14
92043-1506
$3.32
92045
BEARING-BALL,5207-X1ECG45
92045-0027
$86.83
92045A
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92045B
BEARING-BALL,6306SH2
92045-1190
$40.80
92045C
BEARING-BALL,6303LUA
92045-1389
$21.65
92046
BEARING-NEEDLE
92046-1143
Unavailable
92046A
BEARING-NEEDLE
92046-1277
$24.97
92049
SEAL-OIL,TC 35X50X8
92049-1452
$13.75
92049A
SEAL-OIL,HTC 30X45X8
92049-1575
$16.41
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,PT3/8X10
92066-0003
$3.31
92066A
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92151
BOLT,8X110
92151-1689
$5.00
92161
DAMPER,BACK UNDER,PIPE
92161-1257
$7.99
92161A
DAMPER,BACK UNDER
92161-1258
$5.24
92161B
DAMPER,L=63.5
92161-1259
$23.05
92170
CLAMP
92170-1577
$3.83
92170A
CLAMP
92170-1925
$2.40
