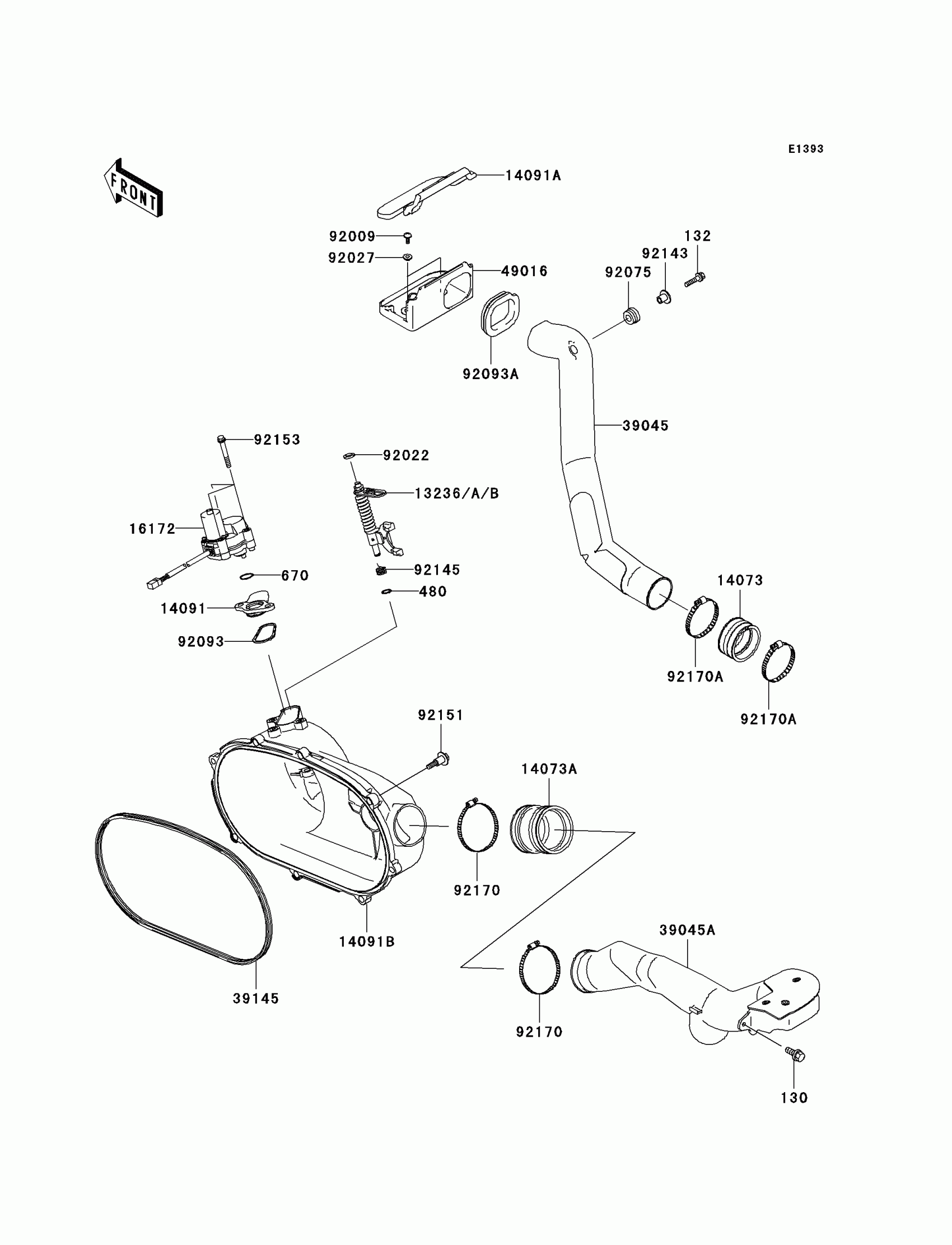

Kawasaki Prairie® 360 Converter Cover Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

670

O RING

670D3022

$2.80

13236

LEVER-COMP,YELLOW

13236-0046

Unavailable

13236A

LEVER-COMP,GREEN

13236-0047

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0048

$131.68

14073

DUCT,JOINT

14073-1775

$4.36

14073A

DUCT,JOINT

14073-1805

$10.86

14091

COVER

14091-1421

Unavailable

14091A

COVER,MUDGUARD

14091-1500

$22.83

14091B

COVER,CVT

14091-1510

$109.60

16172

ACTUATOR

16172-0006

Unavailable

39045

DUCT-ASSY,SNORKEL,IN

39045-0012

$28.46

39045A

DUCT-ASSY,SNORKEL,EX

39045-1068

$32.00

39145

TRIM-SEAL

39145-1135

Unavailable

49016

COVER-SEAL,BELT CONVERTER

49016-1218

$46.96

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92022

WASHER,10.2X16X1

92022-1829

$4.31

92027

COLLAR,L=4.6

92027-1168

$5.00

92075

DAMPER,RUBBER

92075-1123

$5.00

92093

SEAL

92093-1548

$10.06

92093A

SEAL,COVER MUDGUARD

92093-1572

$4.34

92143

COLLAR

92143-1353

$8.58

92145

SPRING

92145-1567

$2.78

92151

BOLT,FLANGED,6X30

92151-1686

$9.43

92153

BOLT,6X47

92153-0678

$3.07

92170

CLAMP

92170-1763

$5.70

92170A

CLAMP

92170-1764

$11.48
