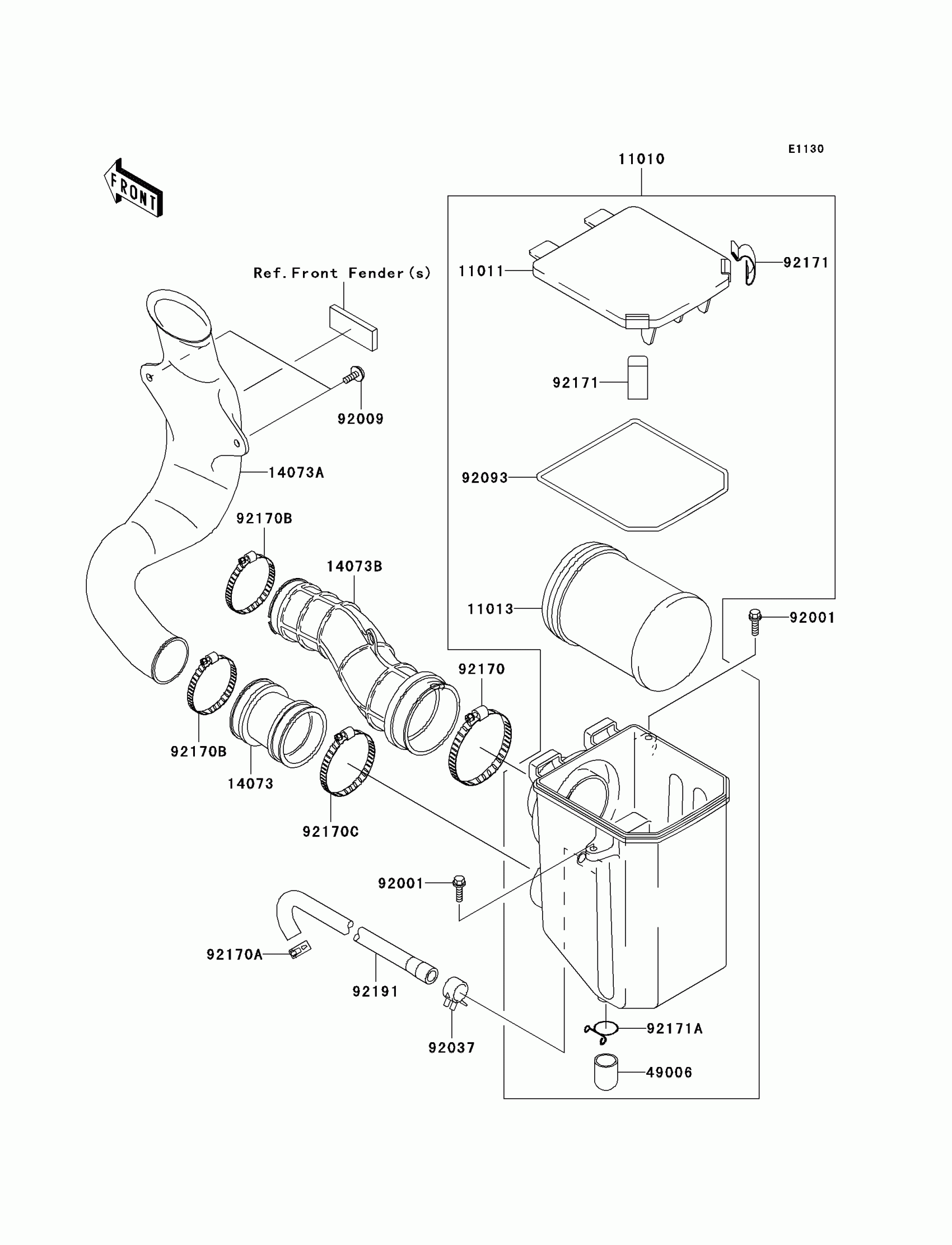

Kawasaki Prairie® 360 Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1766

$173.69

11011

CASE-AIR FILTER,UPP

11011-1639

$24.24

11013

ELEMENT-AIR FILTER

11013-1292

$10.50

14073

DUCT,A/C-INLET

14073-1802

$6.62

14073A

DUCT,INLET

14073-1803

$29.03

14073B

DUCT,A/C-CARBURETOR

14073-1823

$32.50

49006

BOOT

49006-1359

$6.30

92001

BOLT,6X20

92001-1460

$3.92

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92037

CLAMP

92037-1678

$10.16

92093

SEAL,AIR FILTER CASE

92093-1550

$5.68

92170

CLAMP

92170-1307

$19.82

92170A

CLAMP

92170-1491

$7.45

92170B

CLAMP

92170-1674

$11.76

92170C

CLAMP

92170-1764

$11.48

92171

CLAMP,AIR FILTER CASE

92171-1426

$5.30

92171A

CLAMP

92171-1427

$5.95

92191

TUBE,AIR CLEANER

92191-1644

Unavailable
