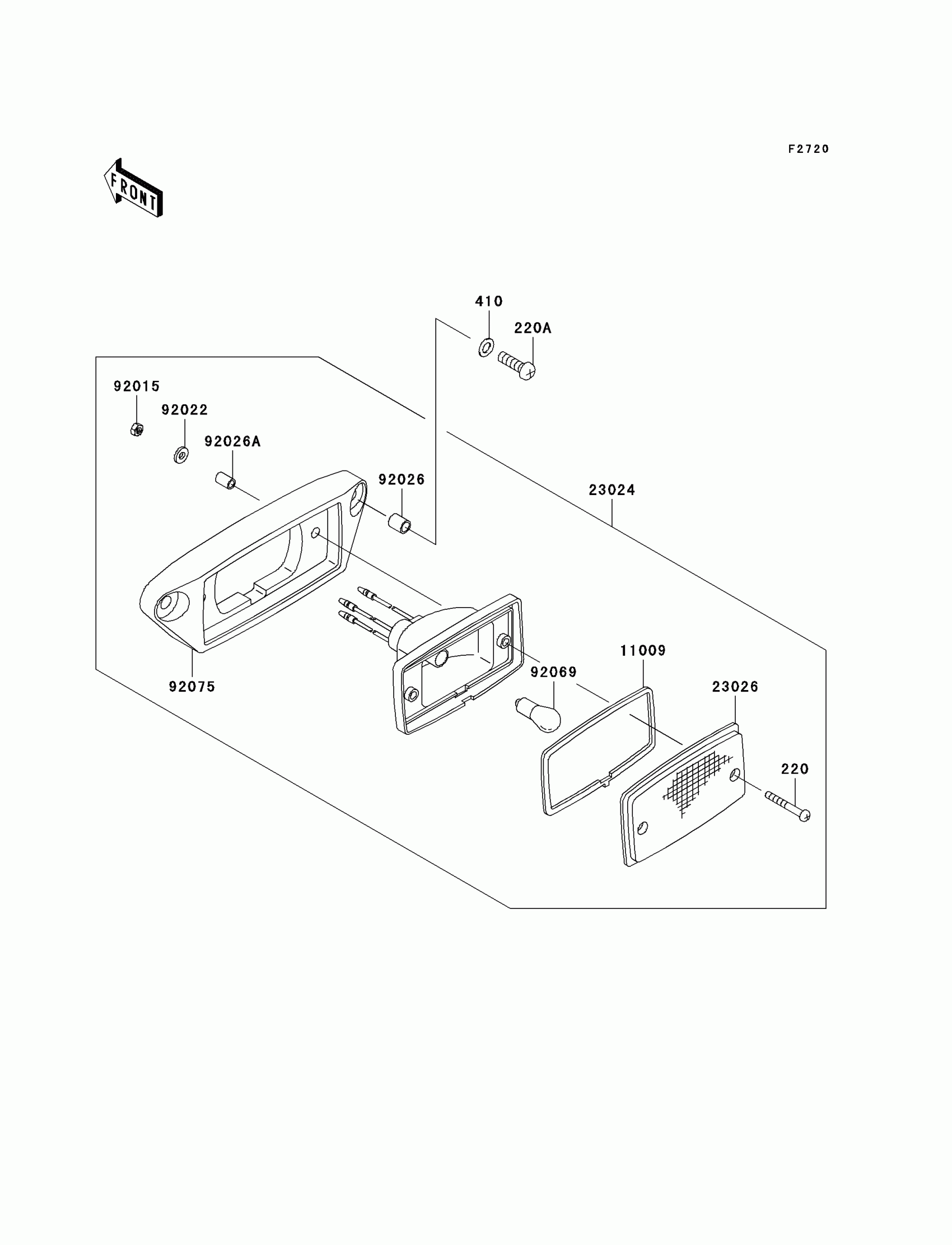

Kawasaki Prairie 360 4X4 Taillight(s)(-JKBVFHA1 3B524150) Diagram

Description

Price

220

SCREW-PAN-CROS

220C0430

Unavailable

220A

SCREW-PAN-CROSS,6X20

220F0620

Unavailable

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable

11009

GASKET,TAIL LAMP

11009-4004

$7.49

23024

LAMP-ASSY-TAIL

23024-7501

$131.12

23026

LENS,TAIL LAMP

23026-1239

$16.56

92015

NUT,4MM

92015-1550

$2.68

92022

WASHER,PLAIN,4MM

92022-1762

$2.68

92026

SPACER,6.3X8.3X10

92026-1260

$4.08

92026A

SPACER,4.5X6.5X10

92026-1261

$4.61

92069

BULB,12V 18/5W

92069-1089

$3.17

92075

DAMPER,TAIL LAMP

92075-1782

$44.48
