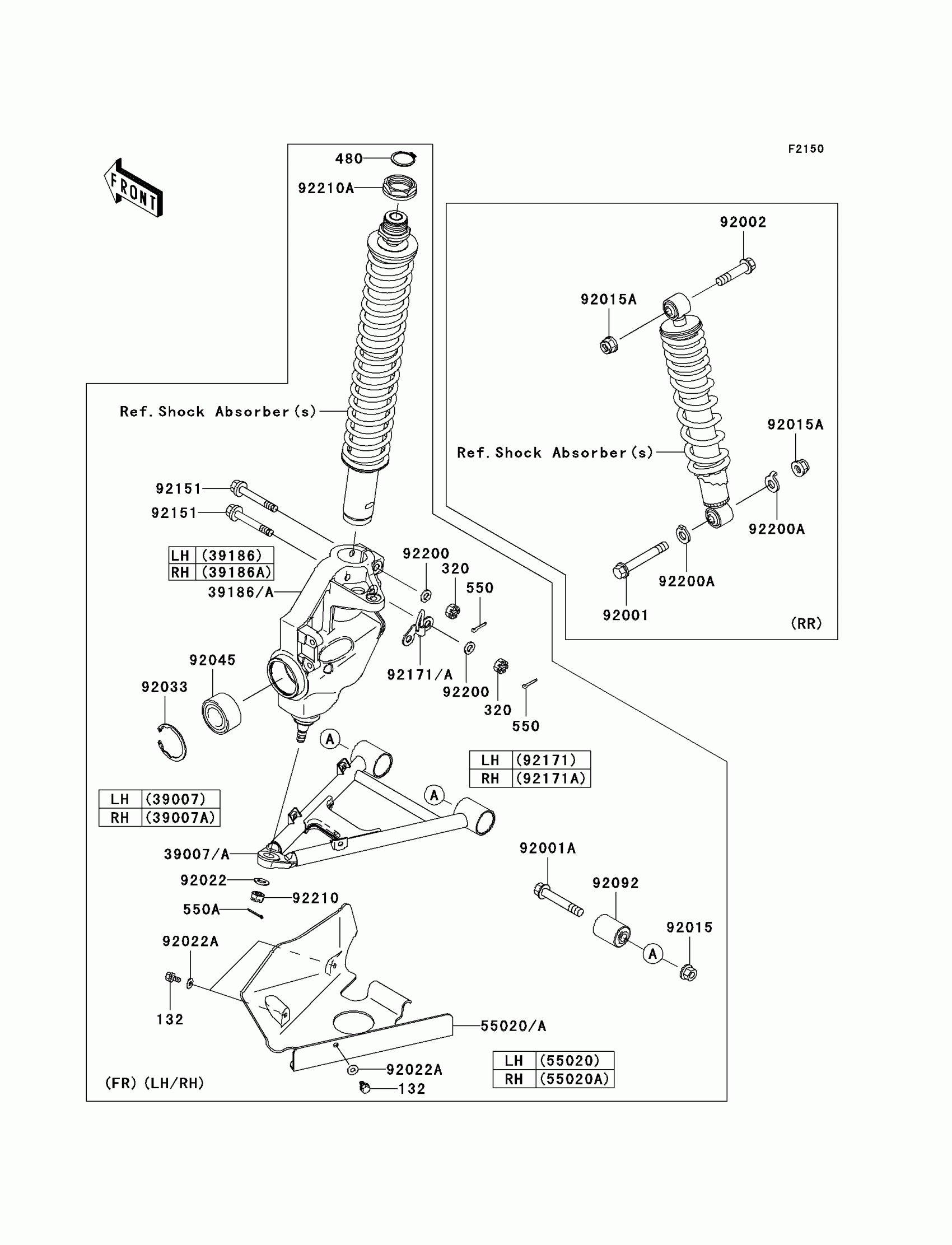

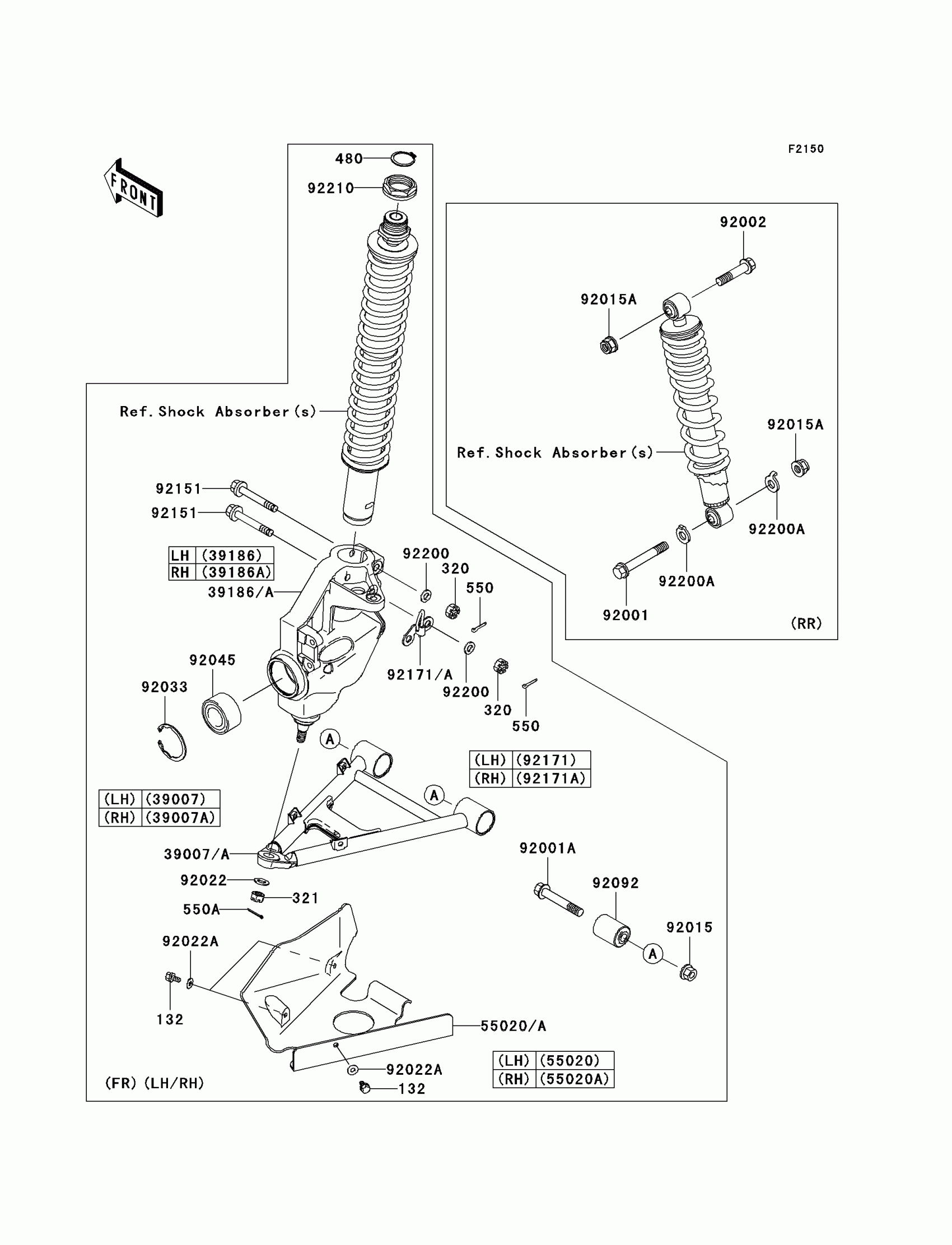

Kawasaki Prairie® 360 4X4 Suspension Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
320
NUT-CASTLE
320BA1000
$8.47
480
CIRCLIP-TYPE-C,32MM
480J3200
$1.77
550
PIN-COTTER,2.0X15
550AA2015
$1.12
550A
PIN-COTTER,3.0X25
550AA3025
$0.62
39007
ARM-SUSP,LH
39007-0053
$91.02
39007A
ARM-SUSP,RH
39007-0054
$91.02
39186
KNUCKLE ASSY,FR,LH
39186-0043
$264.30
39186A
KNUCKLE ASSY,FR,RH
39186-0044
$264.30
55020
GUARD,FRONT AXLE,LH
55020-1768
$13.93
55020A
GUARD,FRONT AXLE,RH
55020-1769
$13.93
92001
BOLT,FLANGED,12X88
92001-1693
$15.60
92001A
BOLT,FLANGED,12X75
92001-1986
$9.87
92002
BOLT,FLANGED,12X55
92002-1840
$9.28
92015
NUT,12MM
92015-1426
$7.33
92015A
NUT,LOCK,12MM
92015-1617
$8.98
92022
WASHER,12.3X22X1.6
92022-1065
$3.96
92022A
WASHER,7X16X1.2
92022-1344
$3.92
92033
RING-SNAP,55MM
92033-1274
$9.43
92045
BEARING-BALL,30BWD08ACA13
92045-0095
Unavailable
92092
BUSHING-RUBBER
92092-7501
$21.01
92151
BOLT,FLANGED,10X70
92151-1879
$12.35
92171
CLAMP,LH
92171-1499
$17.31
92171A
CLAMP,RH
92171-1500
$17.31
92200
WASHER,10.5X19X2.3
92200-1042
$3.92
92200A
WASHER,CLAW,12.7X25.4X3.4
92200-7501
$2.78
92210
NUT,CASTLE,12MM
92210-0395
$3.86
92210A
NUT,35MM
92210-1066
$19.42
