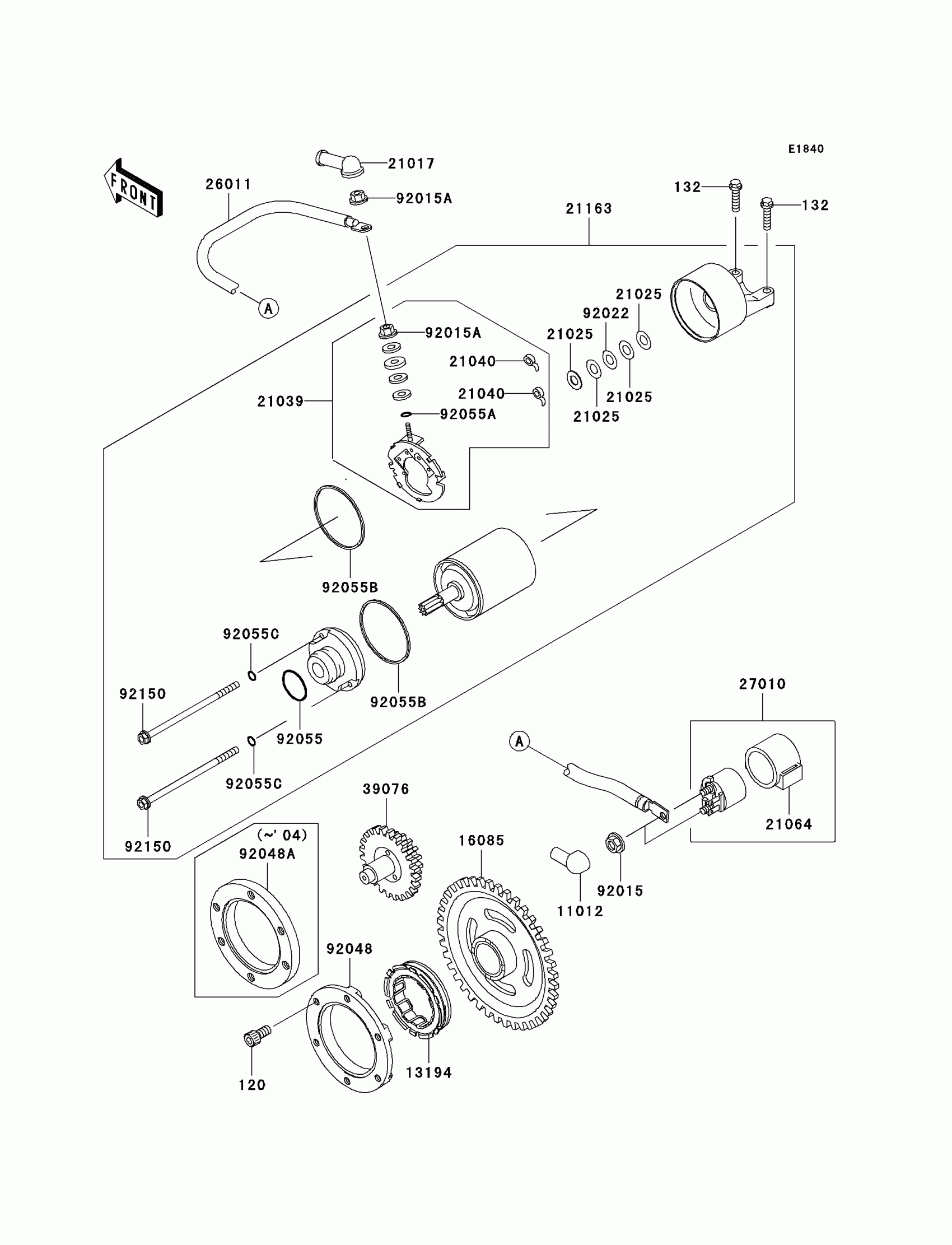

Kawasaki Prairie 360 4X4 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X16

120P0816

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

11012

CAP,TERMINAL

11012-1354

$9.85

13194

CLUTCH-ONEWAY

13194-1094

$112.74

16085

GEAR,STARTER

16085-1346

$125.12

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-1066

$28.79

21040

SPRING-BRUSH

21040-1057

$8.24

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1328

$603.97

26011

WIRE-LEAD,STARTER MOTOR

26011-1709

$50.02

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

39076

LIMITER,STARTER

39076-1066

$153.19

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92048

RACE,ONE WAY CLUTCH

92048-0002

$97.24

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O

92055-1550

$9.58

92055C

RING-O

92055-1551

$4.17

92150

BOLT,FLANGED,4X80

92150-1969

$7.24
