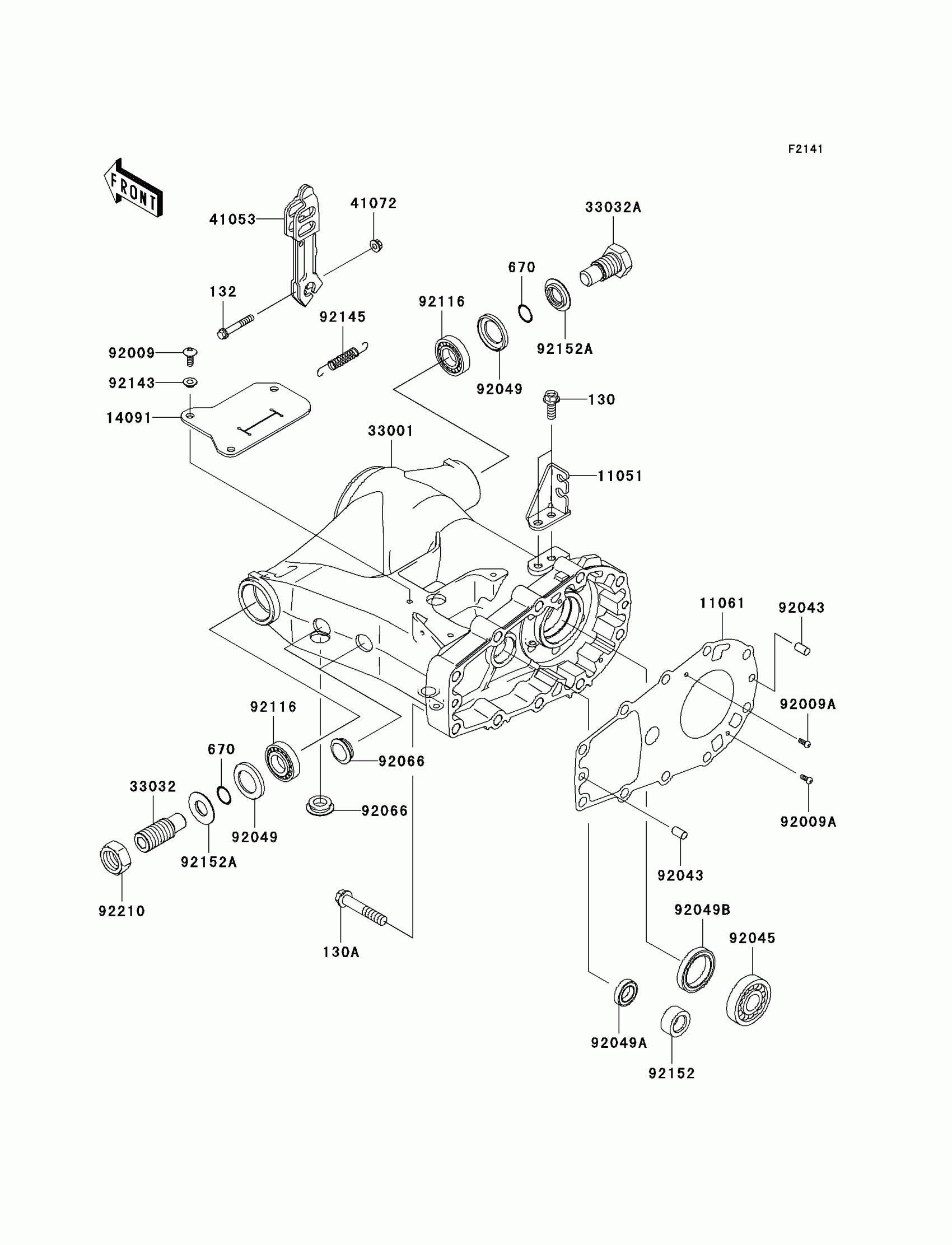

Kawasaki Prairie 360 4X4 Realtree APG HD Swingarm Diagram

Description

Price

130

BOLT-FLANGED,8X22

130BB0822

$2.34

130A

BOLT-FLANGED,10X55

130CA1055

$3.27

132

BOLT-FLANGED-SMALL,6X40

132BA0640

$4.45

670

O RING,16MM

670B2016

$1.36

11051

BRACKET,CABLE

11051-1762

$9.87

11061

GASKET,SWING ARM

11061-1065

$49.04

14091

COVER

14091-7508

$6.62

33001

ARM-COMP-SWING

33001-7502

$278.82

33032

SHAFT-SWING ARM,LEFT SIDE

33032-1197

$40.30

33032A

SHAFT-SWING ARM,RIGHT SIDE

33032-1200

$40.30

41053

LEVER-BRAKE CAM

41053-1094

$54.98

41072

NUT,6MM

41072-007

$3.92

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,4X10

92009-1936

$1.94

92043

PIN,8X14

92043-1567

$2.26

92045

BEARING-BALL,TMBO/28C3

92045-0093

Unavailable

92049

SEAL-OIL,26406

92049-1030

$9.73

92049A

SEAL-OIL,TC17X28X6

92049-1537

$11.81

92049B

SEAL-OIL,HTC35X48X7

92049-1538

$15.43

92066

PLUG

92066-1534

$2.11

92116

BEARING-ROLLER,4T30203E1

92116-1001

$38.04

92143

COLLAR

92143-1331

$3.94

92145

SPRING,BRAKE LEVER RETURN

92145-1313

$4.96

92152

COLLAR

92152-1240

$15.43

92152A

COLLAR

92152-1356

$10.19

92210

NUT,22MM

92210-0190

$8.19
