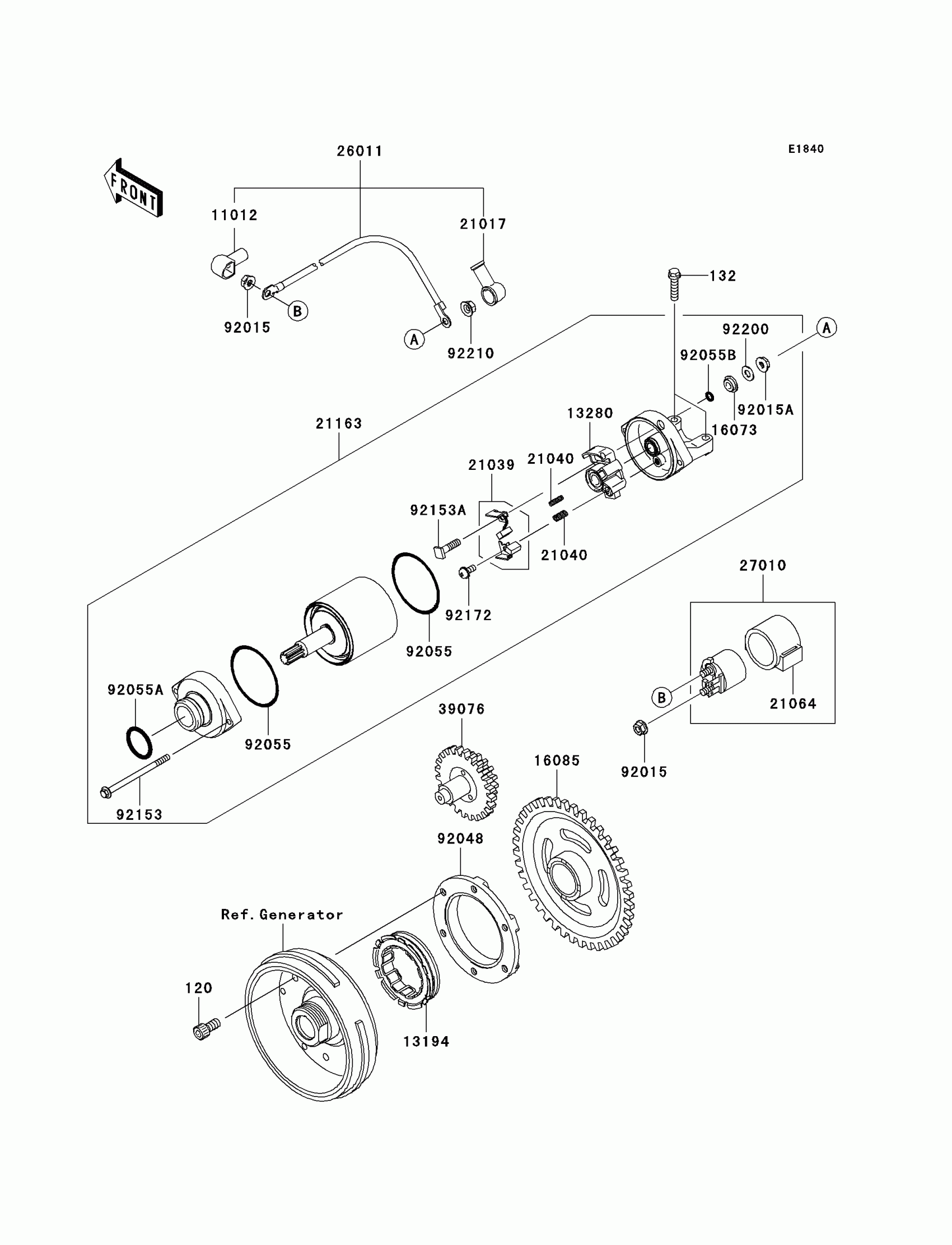

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Starter Motor Diagram
#
Description
Price
120
BOLT-SOCKET,8X16
120CA0816
$4.45
132
BOLT-FLANGED-SMALL,6X25
132BD0625
$5.39
11012
CAP,TERMINAL
11012-1354
$10.19
13194
CLUTCH-ONEWAY
13194-1094
$126.13
13280
HOLDER
13280-0261
$16.72
16073
INSULATOR
16073-0053
$11.93
16085
GEAR,STARTER
16085-1346
$122.56
21017
GROMMET,STARTER TERMINAL
21017-017
$9.43
21039
BRUSH,CARBON SET
21039-0005
$68.25
21040
SPRING-BRUSH
21040-0003
$9.79
21064
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
21163
STARTER-ELECTRIC
21163-0047
$782.91
26011
WIRE-LEAD,STARTER CABLE
26011-0111
$39.63
27010
SWITCH,MAGNETIC
27010-1098
Unavailable
39076
LIMITER,STARTER
39076-1066
$150.20
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,STARTER MOTOR
92015-1476
$4.31
92048
RACE,ONE WAY CLUTCH
92048-0002
$108.96
92055
RING-O
92055-0136
$7.75
92055A
RING-O
92055-1276
$9.91
92055B
RING-O,4.5X2.0
92055-1370
$4.69
92153
BOLT,SET
92153-1851
$7.68
92153A
BOLT
92153-1866
$4.65
92172
SCREW
92172-0334
$4.65
92200
WASHER
92200-0386
$4.65
92210
NUT,6MM
92210-0188
$2.15
