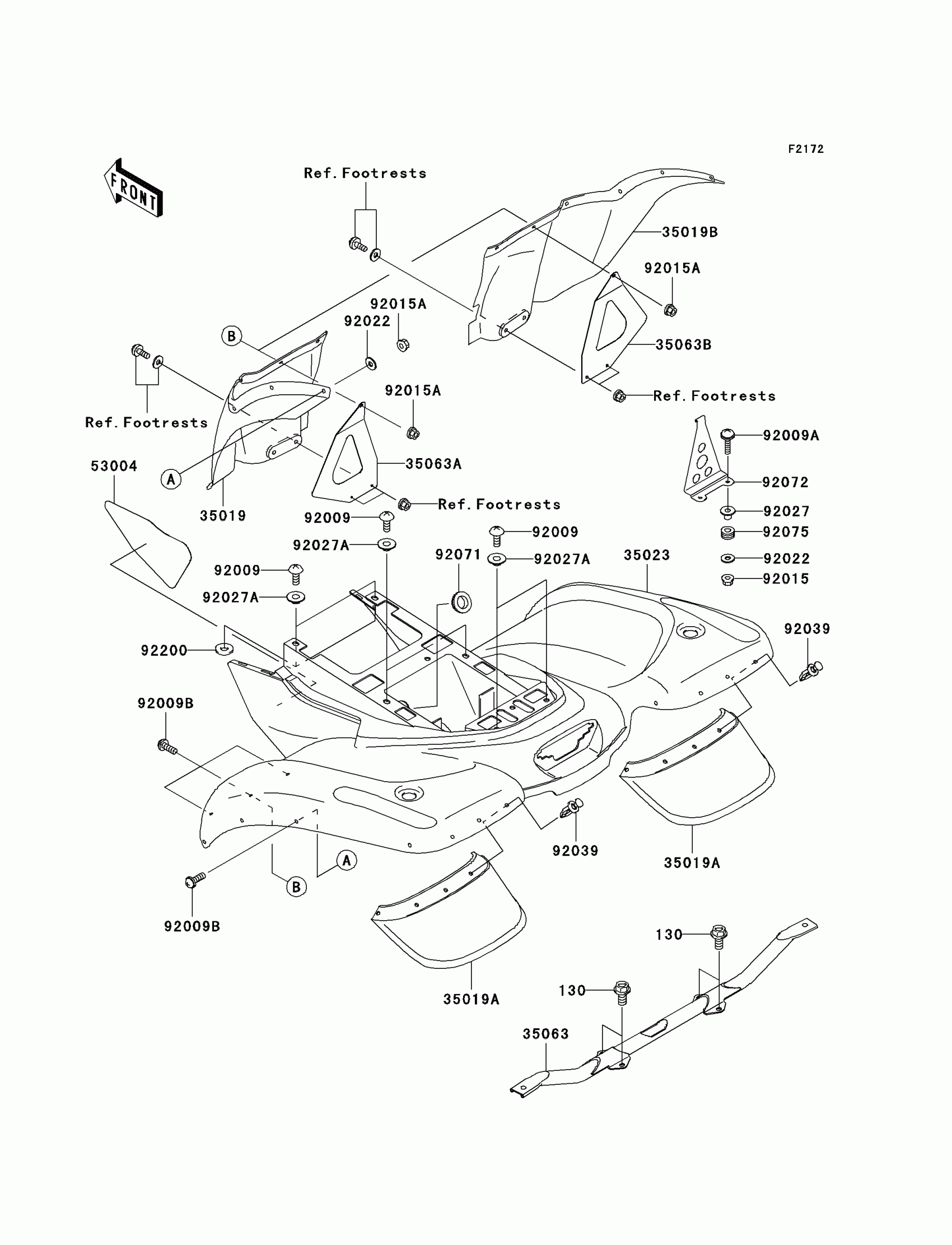

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BB0816

$1.71

35019

FLAP,RR,FR,LH,F.BLACK

35019-1334-6Z

$53.31

35019A

FLAP,RR,RR,F.BLACK

35019-1336-6Z

$22.71

35019B

FLAP,RR,FR,RH,F.BLACK

35019-1375-6Z

$53.31

35023

FENDER-REAR,CAMOUFLAGE

35023-0182-16P

$522.30

35063

STAY,REAR FENDER

35063-7505

$49.47

35063A

STAY,REAR FENDER,LH

35063-7508

$21.08

35063B

STAY,REAR FENDER,RH

35063-7509

$21.08

53004

MAT,REAR FENDER

53004-1173

$11.59

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X25

92009-1465

$3.92

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92027A

COLLAR,L=4.7

92027-1964

$7.34

92039

RIVET

92039-1229

$1.19

92071

GROMMET

92071-1237

$7.90

92072

BAND

92072-1361

$11.63

92075

DAMPER,CASE

92075-222

$7.34

92200

WASHER,8.5X20X2.3

92200-1055

$3.94
