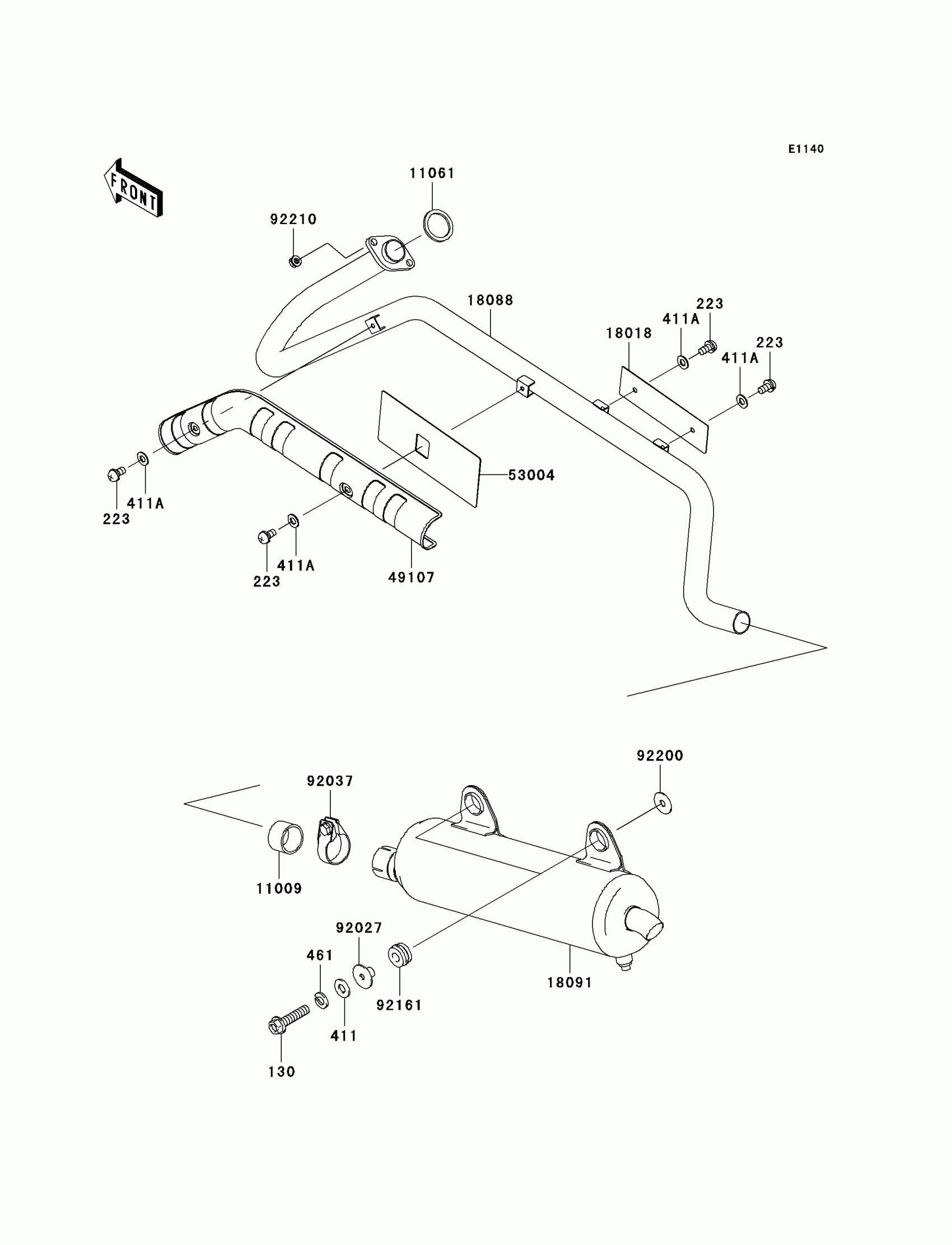

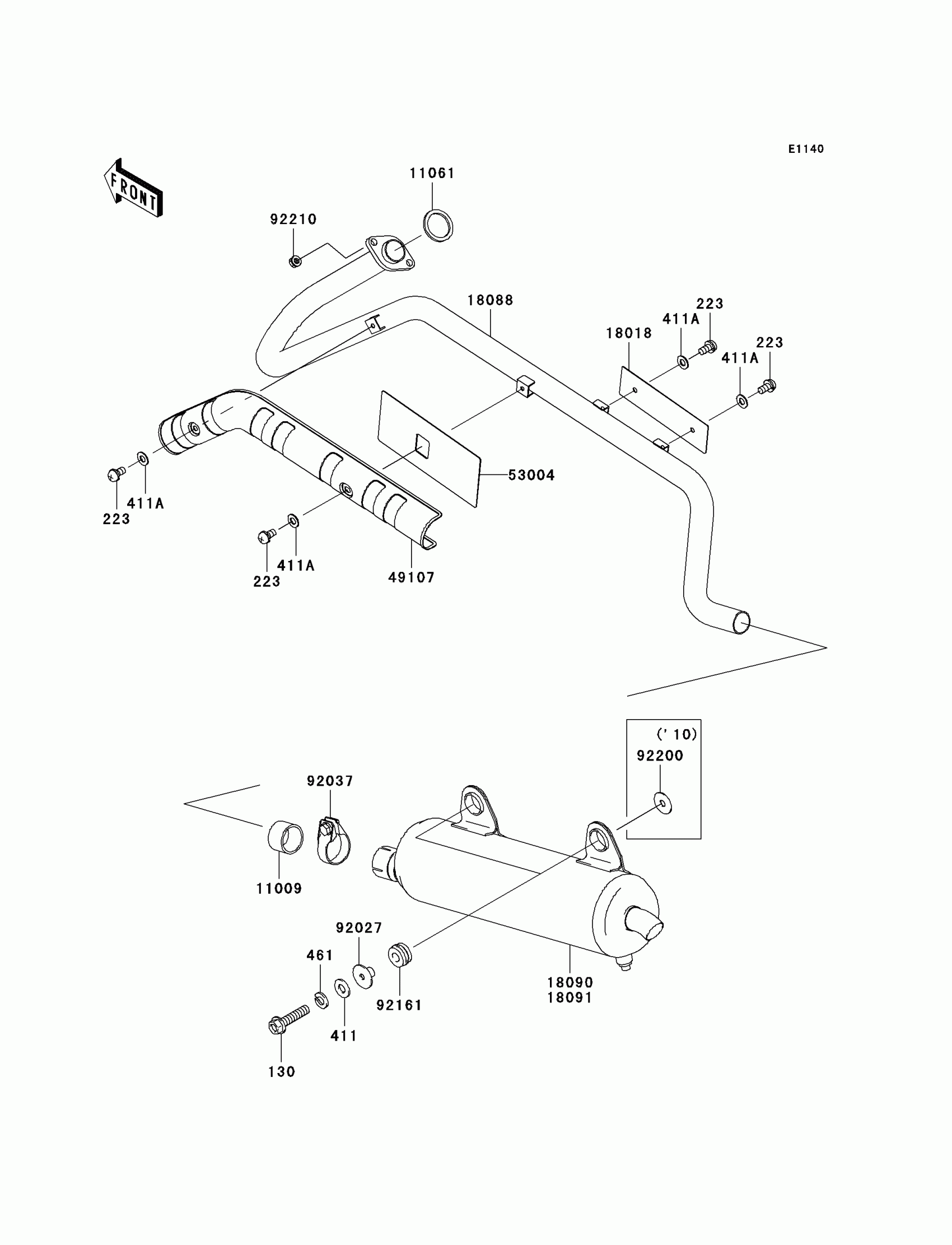

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X35

130CD0835

$2.80

223

SCREW-PAN-WS-CROS,6X12

223AB0612

$4.12

411

WASHER-PLAIN,8MM

411AA0800

$0.96

411A

WASHER-PLAIN,6MM

411AB0600

$1.18

461

WASHER-SPRING,8MM

461DA0800

$0.40

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11061

GASKET,EXHAUST

11061-1053

$10.69

18018

PLATE-HEAT GUARD,EXHAUST PIPE

18018-1135

$3.08

18088

PIPE-EXHAUST

18088-1215

$94.51

18091

BODY-COMP-MUFFLER

18091-0659

$741.24

49107

COVER-EXHAUST PIPE

49107-1222

$45.67

53004

MAT

53004-1181

$25.96

92027

COLLAR,MUFFLER

92027-1981

$10.76

92037

CLAMP,42MM

92037-1349

$12.95

92161

DAMPER,MUFFLER

92161-1292

$9.87

92200

WASHER

92200-0547

$4.86

92210

NUT,8MM

92210-1242

$2.41
