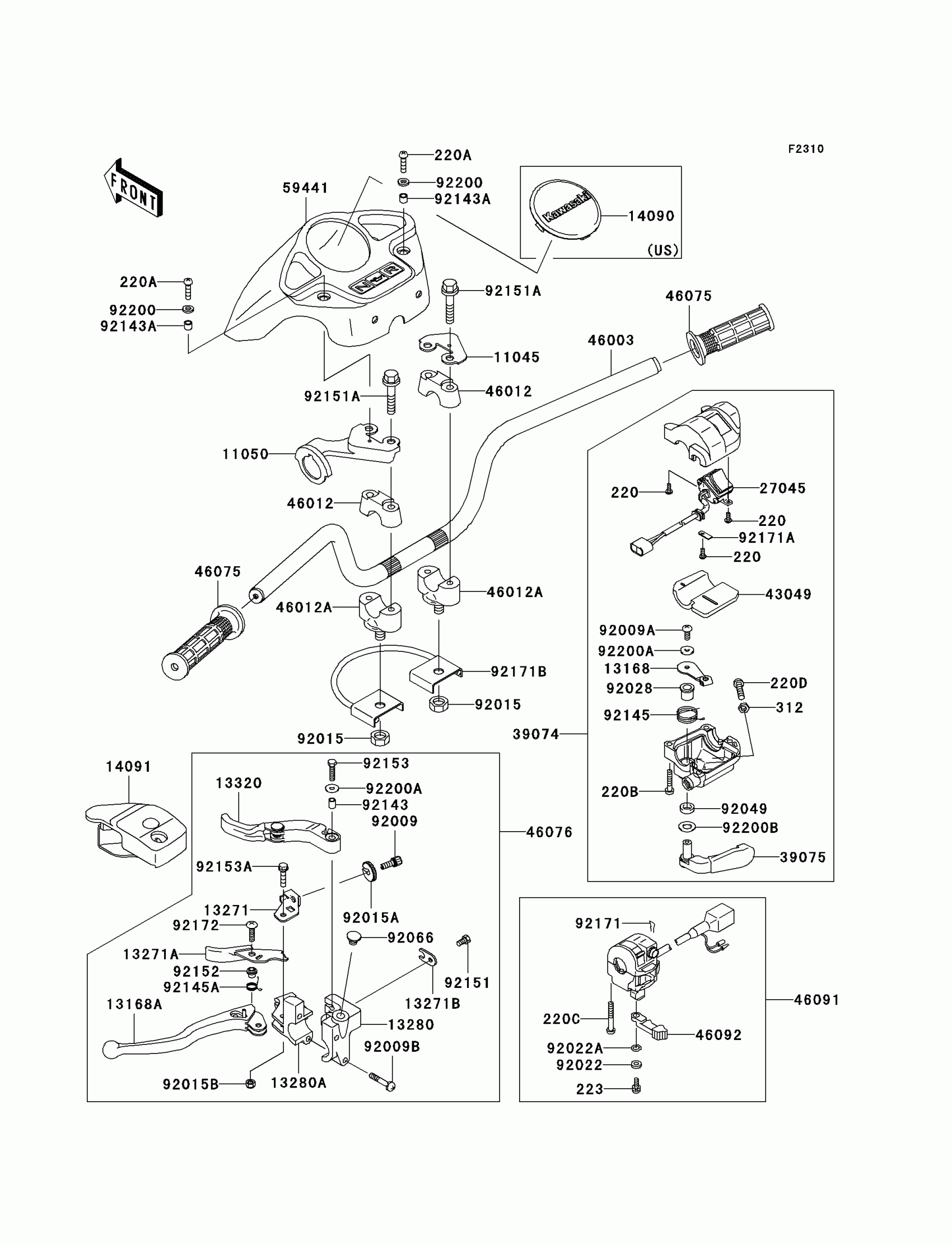

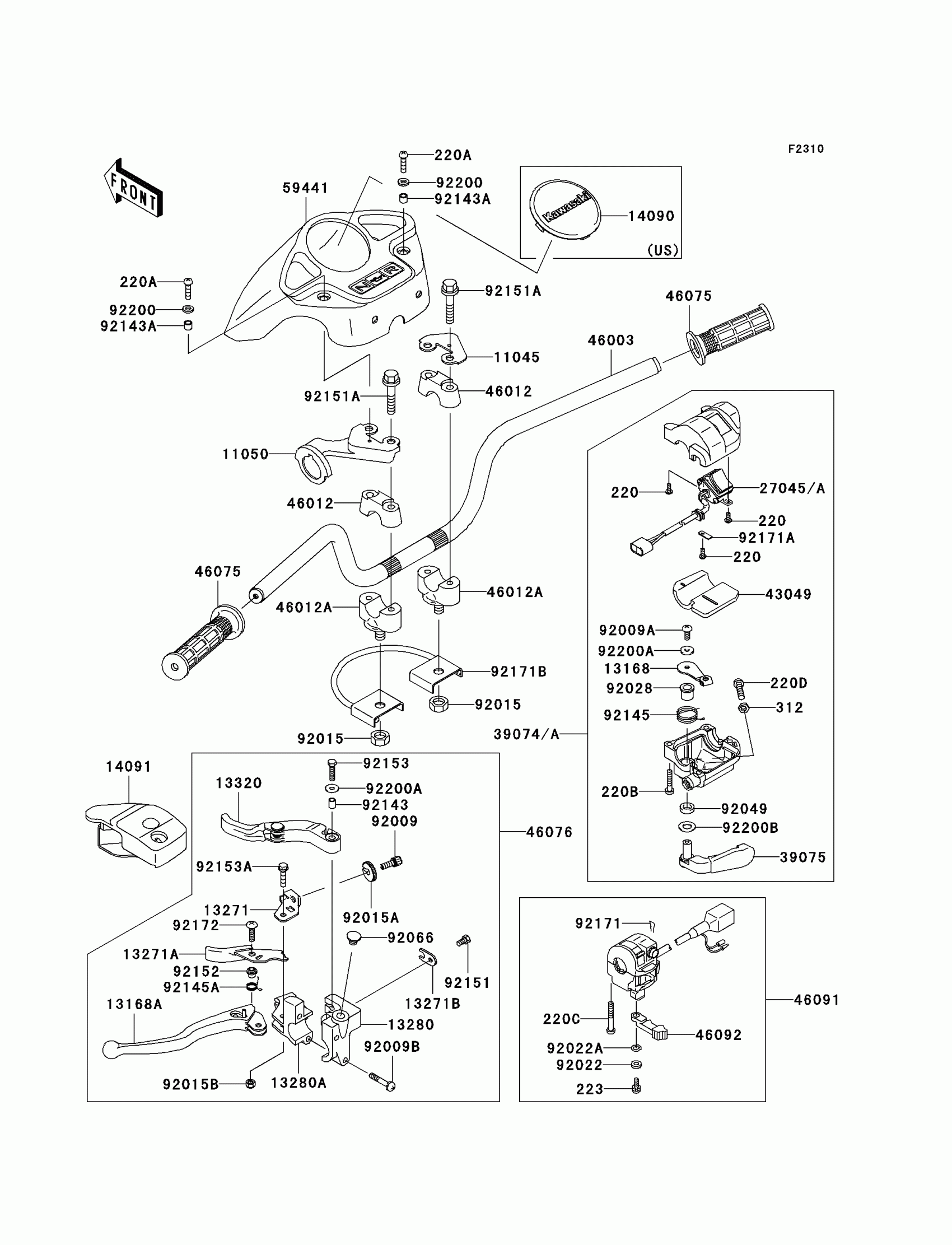

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Handlebar Diagram

#

Description
Price

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.69

11050

BRACKET,HANDLE COVER,LH

11050-1727

$17.55

13168

LEVER

13168-1715

$8.58

13168A

LEVER,LH

13168-1736

$26.86

13271

PLATE,LOCK

13271-1259

$17.76

13271A

PLATE,LEVER LOCK

13271-1635

$14.02

13271B

PLATE,WIRE OUTER STOPPER

13271-1636

$4.18

13280

HOLDER,DIFF LOCK LEVER

13280-1226

$28.44

13280A

HOLDER,LEVER,LH

13280-1227

$28.44

13320

LEVER-ASSY,DIFF LOCK

13320-1018

$63.90

14091

COVER,DIFF LOCK LEVER

14091-1403

$18.20

27045

SWITCH-ASSY

27045-0010

$34.82

39074

LEVER-ASSY-THROTTLE

39074-0002

$183.68

39075

LEVER-THROTTLE

39075-1062

$28.70

43049

PACKING

43049-1088

$11.06

46003

HANDLE

46003-7503

$71.97

46012

HOLDER-HANDLE

46012-1168

$16.33

46012A

HOLDER-HANDLE

46012-7501

$30.08

46075

GRIP,HANDLE

46075-7501

$19.78

46076

LEVER-ASSY-GRIP,DIFF LOCK

46076-1238

$103.23

46091

HOUSING-ASSY-CONTROL,LH

46091-1848

$228.81

46092

LEVER-GRIP,CHOKE

46092-1217

$5.47

59441

COVER-HANDLE,F.BLACK

59441-7501-6Z

$37.36

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$16.33

92009A

SCREW

92009-1959

$2.41

92009B

SCREW,6X30

92009-1961

$2.80

92015

NUT,10MM

92015-1429

$6.88

92015A

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92015B

NUT

92015-1829

$4.26

92022

WASHER,5MM

92022-1837

$3.35

92022A

WASHER,WAVE,5MM

92022-1838

$3.35

92028

BUSHING

92028-1986

$4.14

92049

SEAL-OIL

92049-1578

$4.67

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92143

COLLAR

92143-1216

$6.34

92143A

COLLAR,5.6X8X7

92143-1336

$1.24

92145

SPRING

92145-1392

$3.70

92145A

SPRING

92145-1429

$7.58

220

SCREW-PAN-CROS,3X8

220AA0308

$0.59

220A

SCREW-PAN-CROS,4X16

220AB0416

$1.81

220B

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220C

SCREW-PAN-CROS,5X35

220AB0535

$2.06

220D

SCREW-PAN-CROS,6X25

220AB0625

$3.67

223

SCREW-PAN-WS-CROS,5X12

223AB0512

$4.32

312

NUT-HEX,6MM,BLACK

312AB0600

$3.92

92151

BOLT,5X10

92151-1975

$2.41

92151A

BOLT,FLANGED,8X40

92151-2130

$1.80

92152

COLLAR

92152-1176

$4.31

92153

BOLT,5X20

92153-1129

$3.26

92153A

BOLT

92153-1919

$17.27

92171

CLAMP,CLIP

92171-1095

$3.09

92171A

CLAMP

92171-1344

$2.41

92171B

CLAMP,HARNESS&CABLE

92171-1503

$21.20

92172

SCREW,5X20

92172-0078

$2.80

92200

WASHER,4.5X11.5X0.8

92200-1361

$4.38

92200A

WASHER

92200-1558

$5.00

92200B

WASHER

92200-1559

$5.00

14090

COVER,BLIND CAP,F.BLACK

14090-1945-6Z

$16.58
