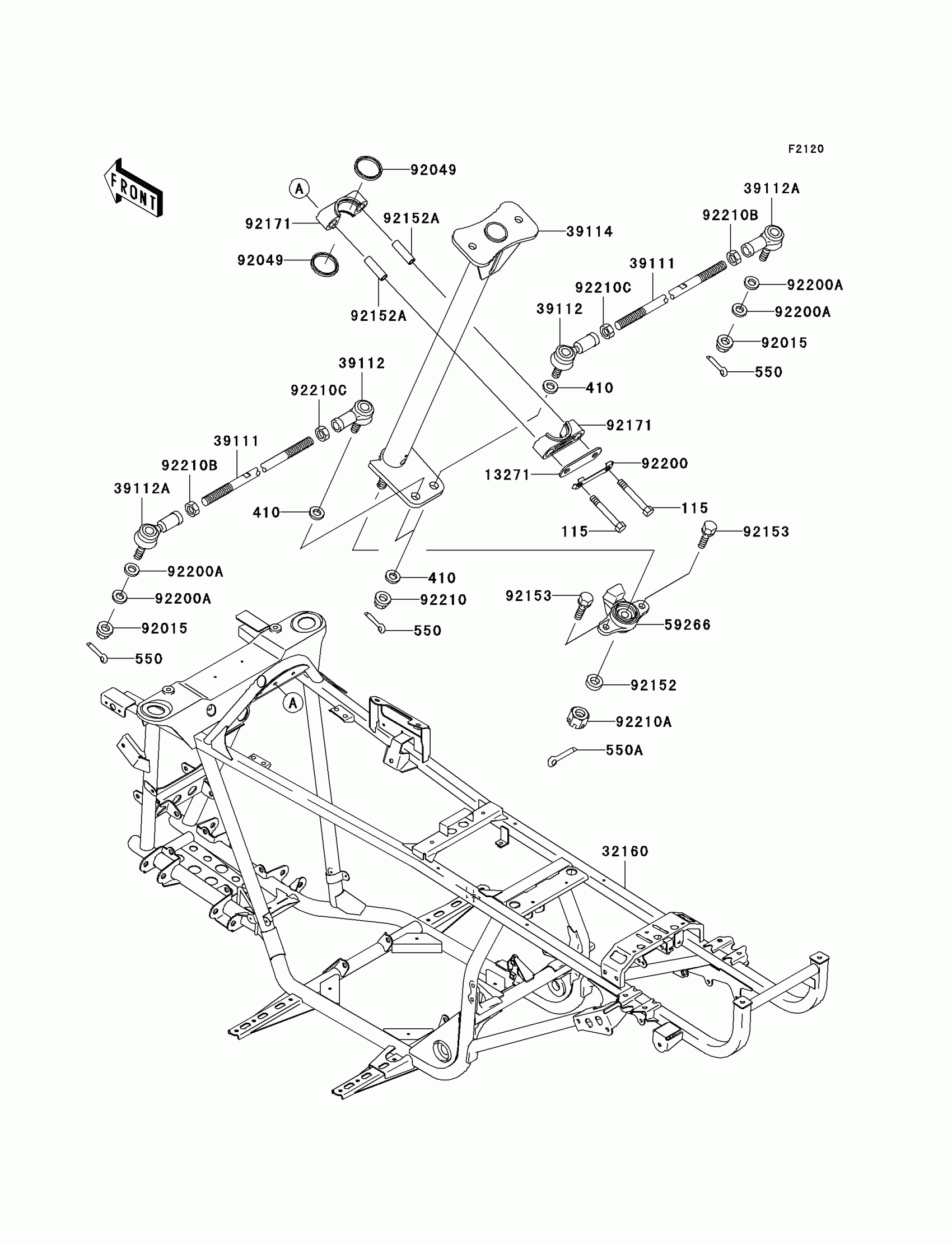

Kawasaki Prairie 360 4X4 Realtree APG HD Frame Diagram

Description

Price

115

BOLT-SMALL-UPSET,8X55

115CB0855

$3.12

410

WASHER-PLAIN-SMALL,12MM

410AA1200

$0.66

550

PIN-COTTER,2.0X15

550AA2015

$0.90

550A

PIN-COTTER,3.0X25

550AA3025

$0.59

13271

PLATE,STEERING,CLAMP

13271-7506

$1.66

32160

FRAME-COMP

32160-7501

$938.74

39111

ROD-TIE

39111-7501

$17.20

39112

RODEND-TIE

39112-7501

$38.62

39112A

RODEND-TIE

39112-7504

$38.62

39114

SHAFT-COMP-STRG

39114-7502

$234.66

59266

JOINT-BALL

59266-1125

$139.63

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.25

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$3.81

92152

COLLAR,12X21.3X7

92152-1351

$12.24

92152A

COLLAR,9.1X13.95X42

92152-7501

$5.84

92153

BOLT,8X30

92153-1065

$2.37

92171

CLAMP,STEERING

92171-7501

$5.84

92200

WASHER,STEERING CLAMP

92200-0384

$5.17

92200A

WASHER,12.2X22X1.5

92200-7502

$2.37

92210

NUT,LOCK,12MM

92210-1249

$5.88

92210A

NUT,12MM

92210-7501

$2.84

92210B

NUT,LH THREAD

92210-7502

$3.68

92210C

NUT,RH THREAD

92210-7503

$3.68
