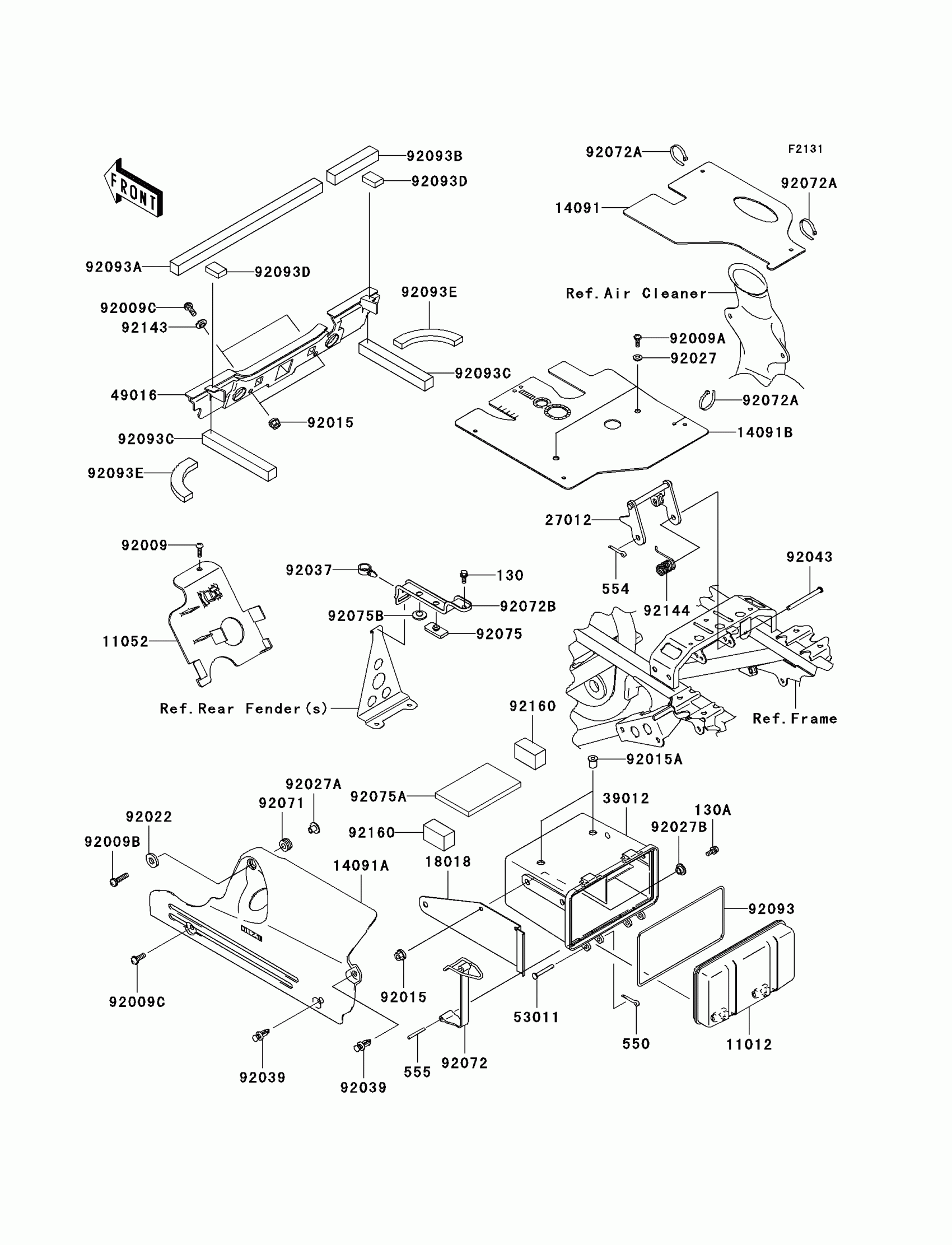

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Frame Fittings Diagram
#
130
BOLT-FLANGED,6X14
130BB0614
$2.49
11012
CAP,STORAGE CASE
11012-1951
$8.88
11052
BRACKET,ELECTRIC BASE
11052-7529
$8.07
14091
COVER,CARBURETOR
14091-7516
$15.42
14091A
COVER,ENGINE,F.BLACK
14091-7524-6Z
$20.70
14091B
COVER,CYLINDER HEAD BRACKET
14091-7526
$19.72
18018
PLATE-HEAT GUARD
18018-7501
$6.08
27012
HOOK,SEAT
27012-1381
$35.82
39012
CASE-STORAGE
39012-7501
$22.52
49016
COVER-SEAL
49016-1221
$20.35
53011
PIN, DUAL SEAT PIVOT
53011-006
$5.24
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,TAPPING,5X10
92009-1332
$3.92
92009B
SCREW,6X25
92009-1465
$3.92
92009C
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT
92015-1700
$8.58
92022
WASHER,7X18X1.2
92022-1545
$1.03
92027
COLLAR,L=4.6
92027-1168
$5.00
92027A
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92027B
COLLAR,L=5.6
92027-1933
$5.78
92037
CLAMP,HOSE
92037-1827
$7.45
92039
RIVET
92039-1229
$1.19
92043
PIN,6X77
92043-1367
$7.79
92071
GROMMET
92071-3716
$4.96
92072
BAND,STORAGE CASE
92072-0098
$30.84
92072A
BAND,L=188
92072-1239
$1.73
92072B
BAND,BATTERY
92072-7501
$6.23
92075
DAMPER
92075-1054
$5.00
92075A
DAMPER,BATTERY
92075-1997
$8.98
92075B
DAMPER,RUBBER
92075-261
$4.31
92093
SEAL
92093-1570
$8.24
92093A
SEAL
92093-1577
$7.93
92093B
SEAL
92093-1578
$3.96
92093C
SEAL
92093-1580
$3.97
92093D
SEAL
92093-1581
$2.50
92093E
SEAL
92093-1582
$7.91
92143
COLLAR
92143-1087
$4.31
92144
SPRING,SEAT HOOK
92144-1174
$6.82
92160
DAMPER
92160-1744
$5.54
130A
BOLT-FLANGED,6X16
130BB0616
$2.06
550
PIN-COTTER,2.0X12
550AA2012
$1.11
554
PIN-SNAP,1.2X21.2
554DA0600
$0.95
555
PIN-SPRING
555A0436
$4.92
