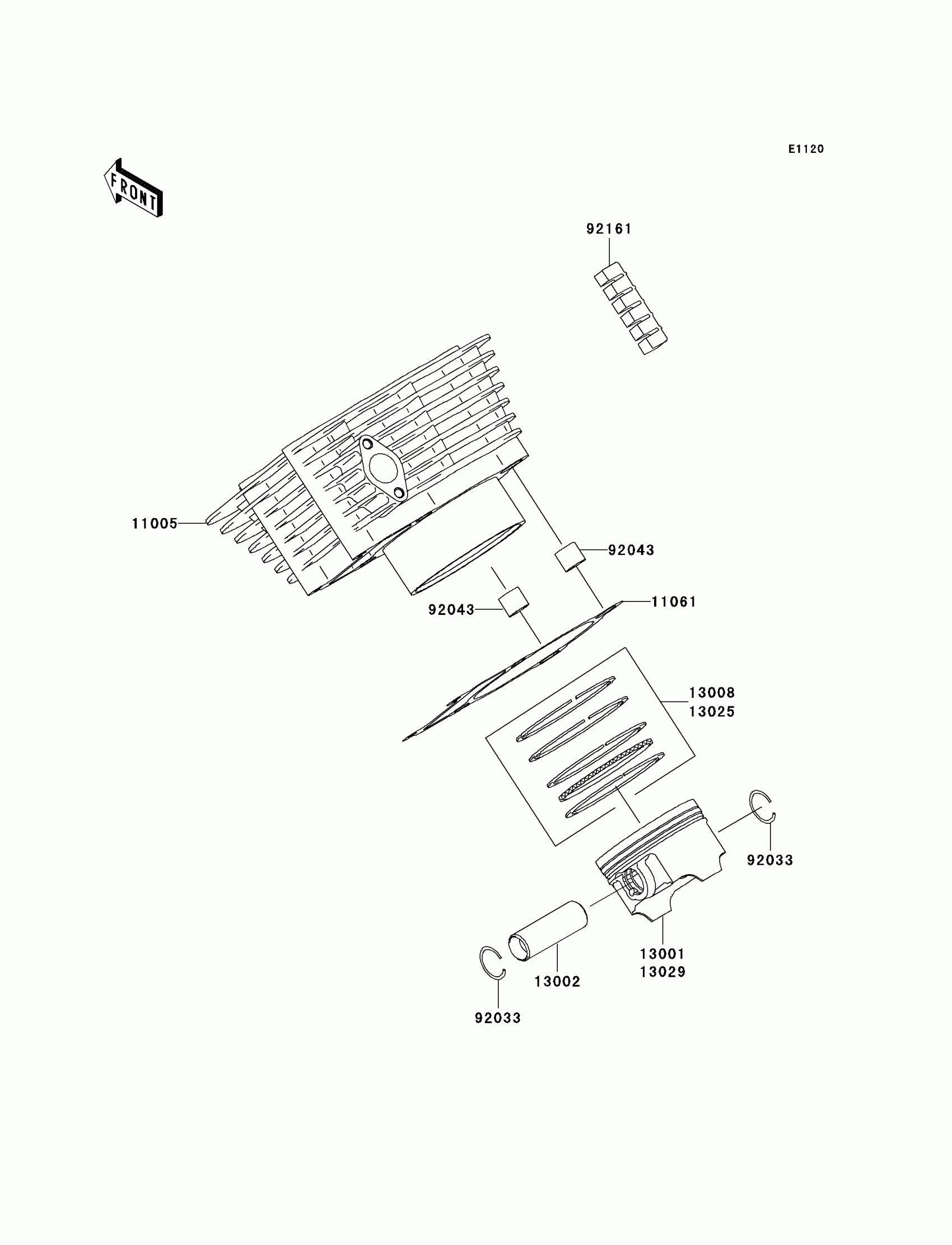

Kawasaki Prairie 360 4X4 Realtree APG HD Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-1980

$619.65

11061

GASKET,CYLINDER BASE

11061-1085

$9.41

13001

PISTON-ENGINE

13001-1652

$124.50

13002

PIN-PISTON

13002-1060

$17.96

13008

RING-SET-PISTON

13008-1214

$61.17

13025

RING-SET-PISTON L,O/S 0.50

13025-0002

$70.66

13029

PISTON-ENGINE L,O/S 0.50

13029-0002

$132.02

92033

RING-SNAP

92033-1207

$1.65

92043

PIN,13X16X14

92043-1608

$3.81

92161

DAMPER,CYLINDER

92161-1312

Unavailable
