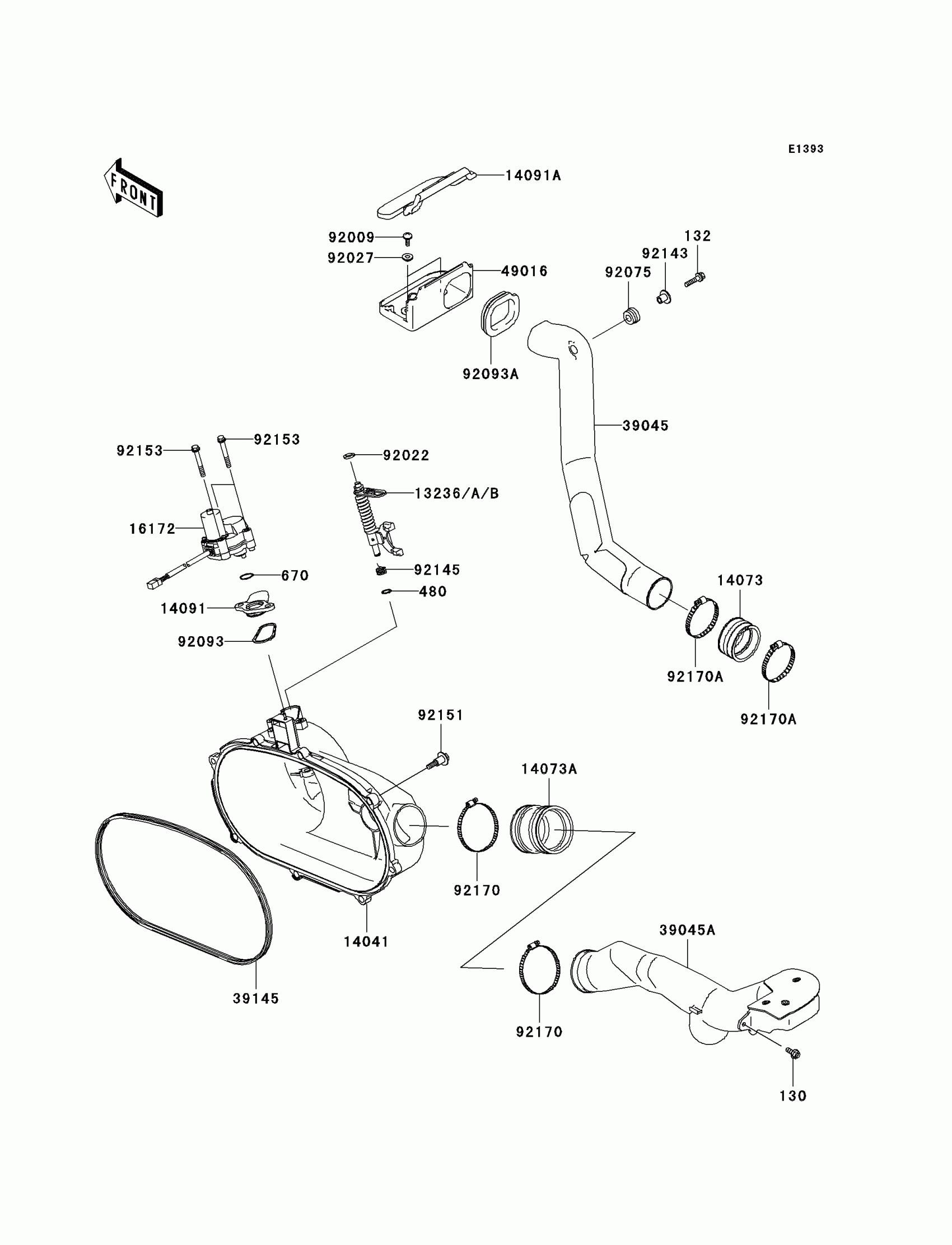

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Converter Cover Diagram
#
Description
Price
130
BOLT-FLANGED,6X14
130BA0614
$1.20
132
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
480
CIRCLIP-TYPE-C,10MM
480J1000
$0.65
670
O RING
670D3022
$2.80
13236
LEVER-COMP,YELLOW
13236-0046
Unavailable
13236A
LEVER-COMP,GREEN
13236-0047
Unavailable
13236B
LEVER-COMP,PAINT LESS
13236-0048
$131.68
14041
COVER-COMP,BELT CONVERTER
14041-1156
Unavailable
14073
DUCT,JOINT
14073-1775
$4.36
14073A
DUCT,JOINT
14073-1805
$10.86
14091
COVER
14091-1421
Unavailable
14091A
COVER,MUDGUARD
14091-1500
$22.83
16172
ACTUATOR
16172-0018
$421.70
39045
DUCT-ASSY,SNORKEL,IN
39045-0012
$28.46
39045A
DUCT-ASSY,SNORKEL,EX
39045-1068
$32.00
39145
TRIM-SEAL
39145-1135
Unavailable
49016
COVER-SEAL,BELT CONVERTER
49016-1218
$46.96
92009
SCREW,TAPPING,5X14
92009-1197
$3.92
92022
WASHER,10.2X16X1
92022-1829
$4.31
92027
COLLAR,L=4.6
92027-1168
$5.00
92075
DAMPER,RUBBER
92075-1123
$5.00
92093
SEAL
92093-1548
$10.06
92093A
SEAL,COVER MUDGUARD
92093-1572
$4.34
92143
COLLAR
92143-1353
$8.58
92145
SPRING
92145-1567
$2.78
92151
BOLT,FLANGED,6X30
92151-1686
$9.43
92153
BOLT,6X47
92153-0678
$3.07
92170
CLAMP
92170-1763
$5.70
92170A
CLAMP
92170-1764
$11.48
