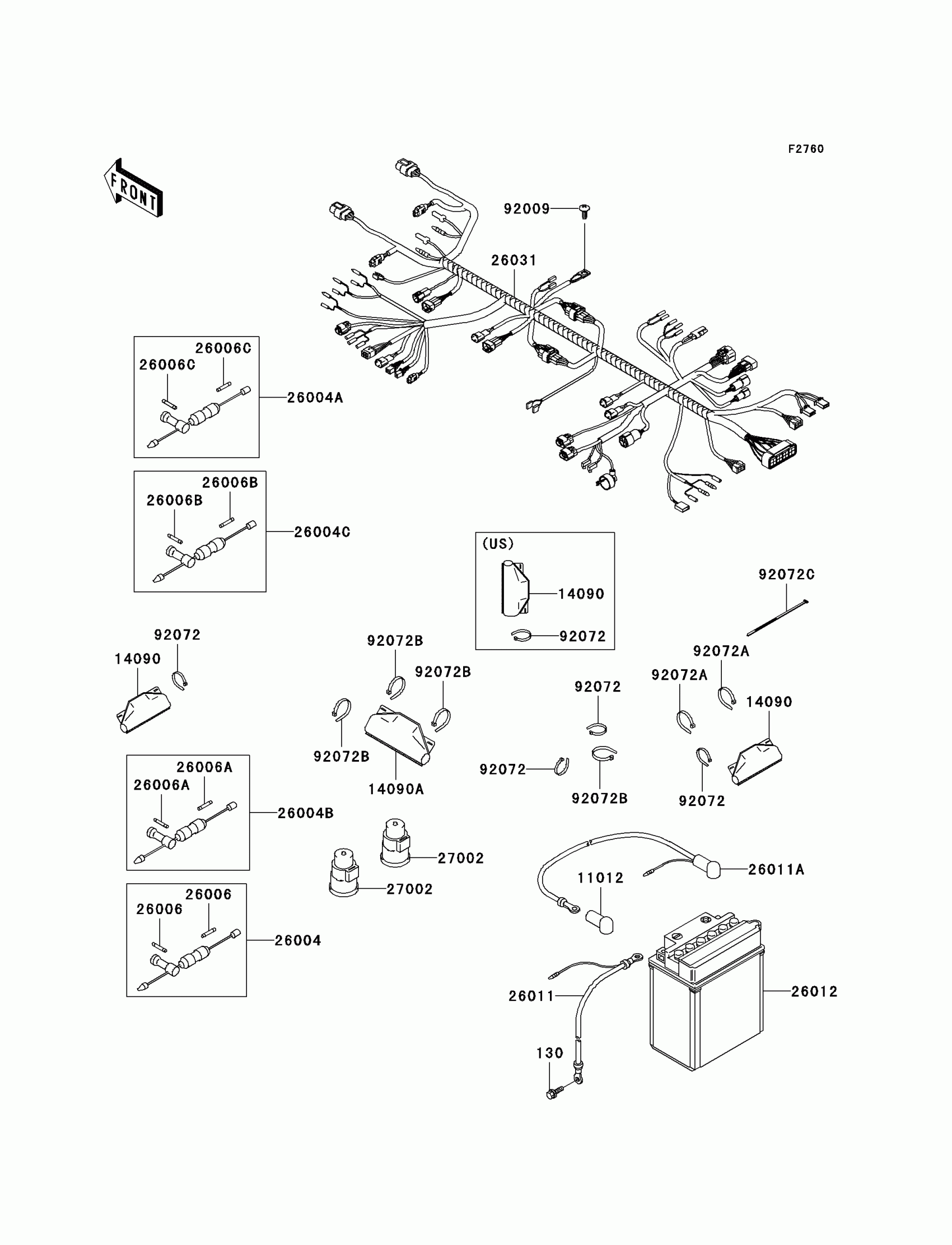

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130AA0612

$0.68

11012

CAP,TERMINAL

11012-1354

$10.19

14090A

COVER,COUPLER

14090-1611

$8.51

26004

FUSE-ASSY

26004-0005

$54.89

26004A

FUSE-ASSY

26004-1114

$54.72

26004B

FUSE-ASSY

26004-1127

$54.89

26004C

FUSE-ASSY

26004-7501

$54.89

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-0003

$5.74

26006A

FUSE,30A,L=30

26006-1059

$4.96

26006B

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.87

26006C

FUSE,GLASS TUBE,6.4X30,5A,BRN

26006-1074

$6.16

26011

WIRE-LEAD,BATTERY(-)

26011-0139

$25.34

26011A

WIRE-LEAD,BATTERY(+)

26011-0140

$25.34

26012

BATTERY,YB14A-A2,12V 14AH

26012-0142

Unavailable

26031

HARNESS,MAIN

26031-0526

$394.22

27002

RELAY-ASSY

27002-1088

$42.06

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73

14090

COVER,COUPLER

14090-1331

$8.51

14090

COVER,COUPLER

14090-1331

$8.51

92072

BAND,L=123

92072-030

$5.00

92072

BAND,L=123

92072-030

$5.00
