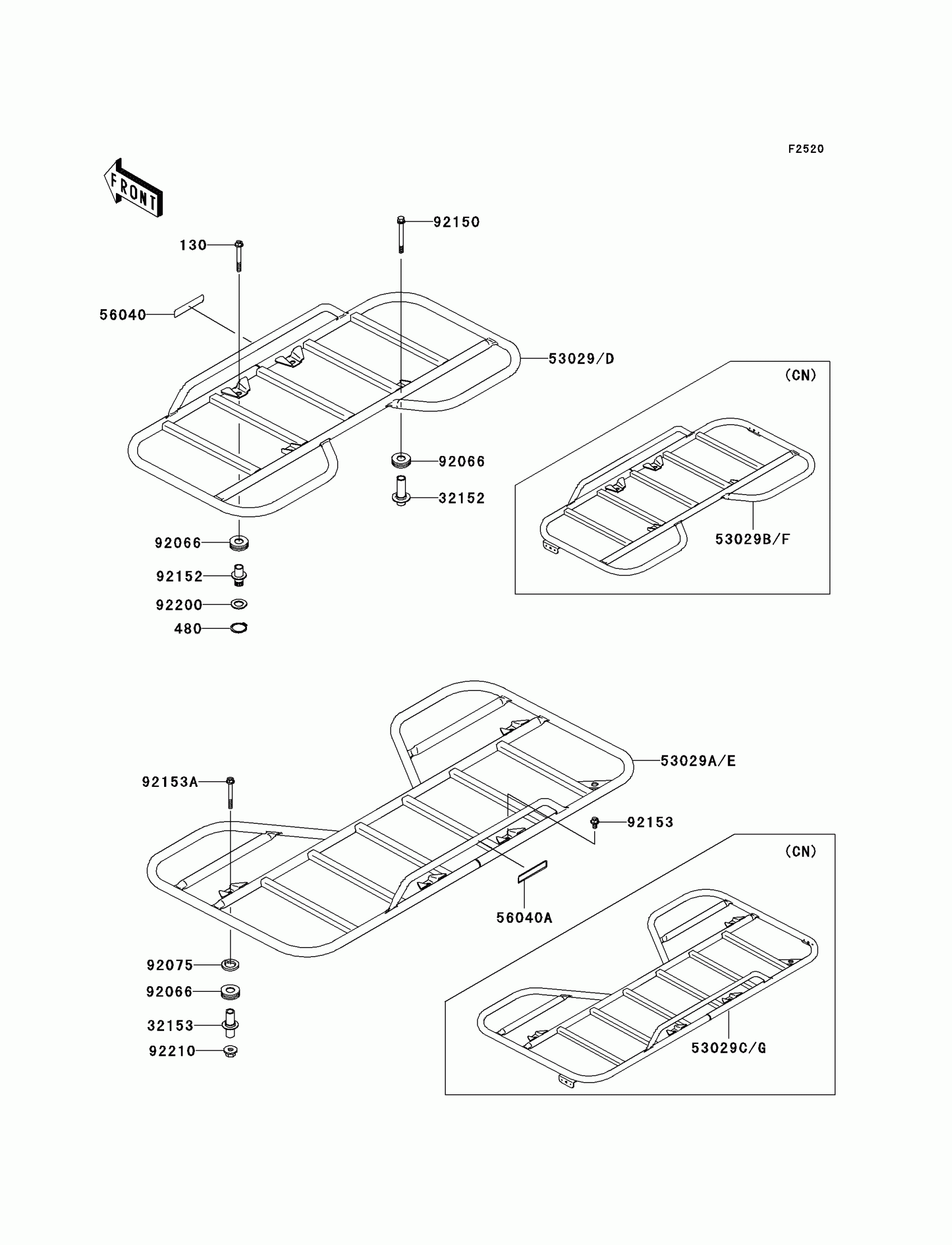

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Carrier(s) Diagram

Description

Price

130

BOLT-FLANGED,8X65

130CB0865

$3.76

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

32152

PIPE,FRONT CARRIER

32152-1067

$12.97

32153

PIPE

32153-7527

$11.38

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1321

$3.69

56040A

LABEL-WARNING,MAXIMUM LOAD

56040-1322

$3.69

92066

PLUG

92066-1438

$5.17

92075

DAMPER

92075-1842

$5.24

92150

BOLT,FLANGED,8X80

92150-1808

$4.60

92152

COLLAR,L=42.5

92152-7504

$9.87

92153

BOLT,FLANGED,8X14

92153-0931

$2.97

92153A

BOLT,FLANGED,8X65

92153-1372

$3.55

92200

WASHER,18.5X32X2.3

92200-1043

$8.28

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

53029

CARRIER,FR,T.BLACK

53029-0065-388

$157.88

53029A

CARRIER,RR,T.BLACK

53029-0066-388

$257.29

53029B

CARRIER,FR,T.BLACK

53029-0067-388

Unavailable

53029C

CARRIER,RR,T.BLACK

53029-0068-388

$257.29
