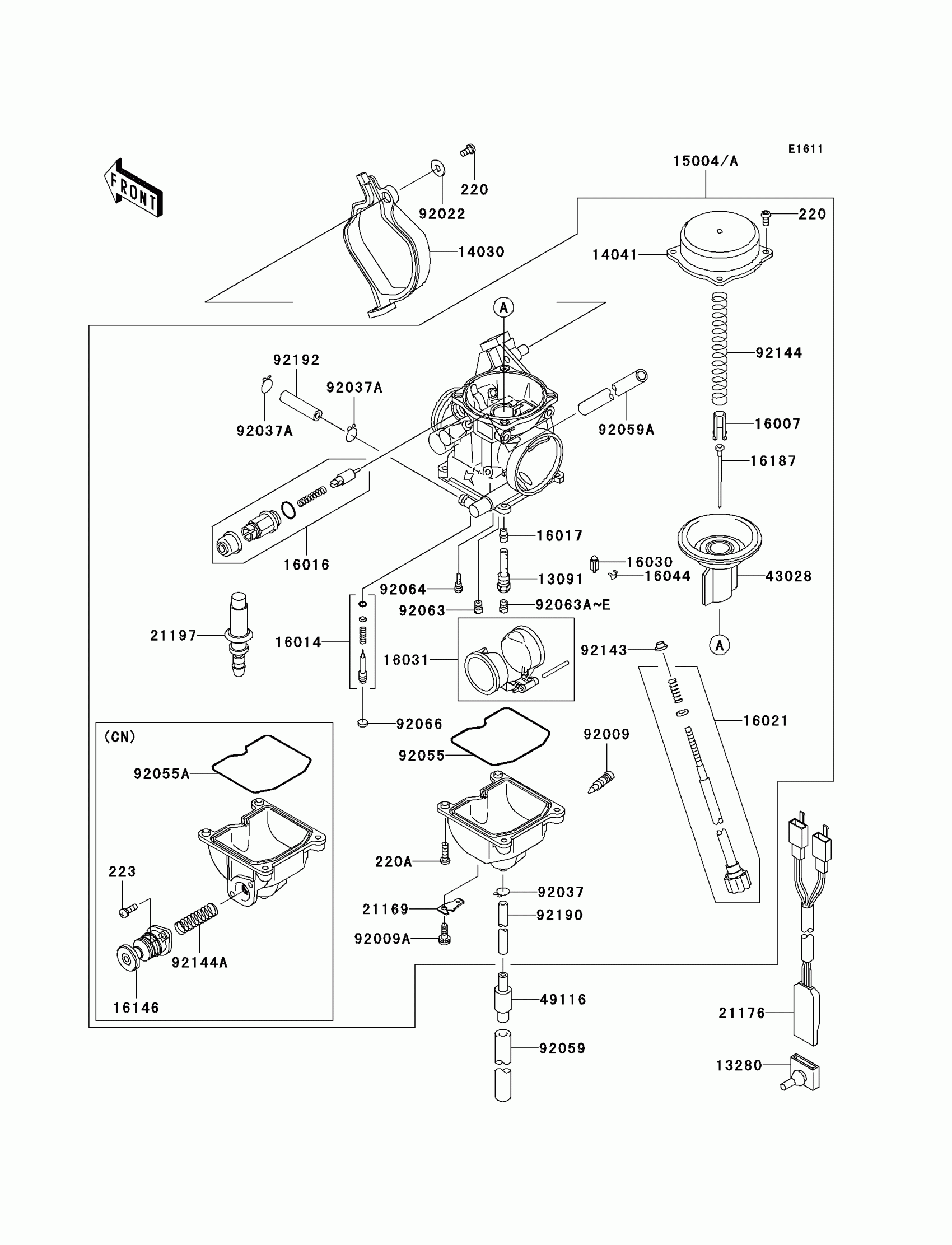

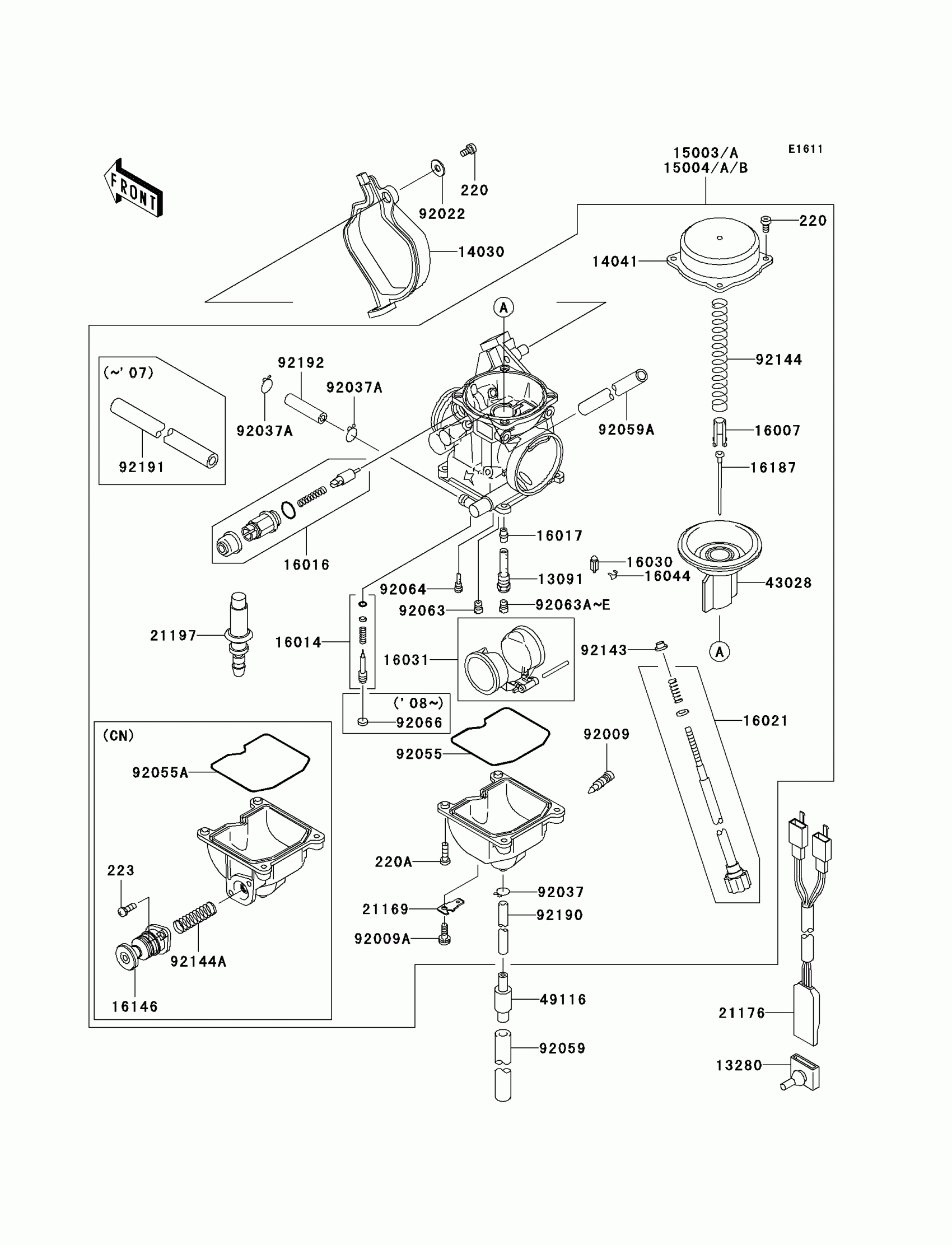

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Carburetor Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1914

$30.53

13280

HOLDER,CARBURETOR

13280-1253

$4.34

14030

COVER-CARBURETOR

14030-1054

$14.86

14041

COVER-COMP,MIXING,INSIDE

14041-1061

$72.14

16007

SEAT-SPRING,VALVE

16007-1134

$42.04

16014

SCREW-PILOT AIR

16014-1081

$24.57

16016

PLUNGER,STARTER

16016-1101

$58.52

16017

JET-NEEDLE,#6

16017-1254

Unavailable

16021

SCREW-THROTTLE STOP

16021-1242

$69.16

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16187

NEEDLE-JET,N2LQ

16187-1236

$37.63

21169

TERMINAL

21169-1072

$16.98

21176

SENSOR,CARBURETOR

21176-1111

$148.15

21197

HEATER

21197-1006

$106.96

43028

DIAPHRAGM,VALVE

43028-1081

$186.28

49116

VALVE-ASSY

49116-1126

$20.77

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92009A

SCREW

92009-1713

$3.86

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,TUBE

92037-1201

$4.60

92037A

CLAMP,TUBE

92037-1531

$5.52

92059

TUBE,7X10X100

92059-1736

$4.46

92059A

TUBE,6.5X9.5X320

92059-1861

$17.44

92063

JET-MAIN,#90

92063-1003

$14.79

92063A

JET-MAIN,#150

92063-1330

$14.10

92063B

JET-MAIN,#152

92063-1331

$14.79

92063C

JET-MAIN,#155

92063-1332

$14.79

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,4X14

220AA0414

$4.60

92063D

JET-MAIN,#158

92063-1344

$14.79

92063E

JET-MAIN,#160

92063-1345

$14.79

92064

JET-PILOT,#35

92064-1101

$17.03

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92143

COLLAR

92143-1589

$4.11

92144

SPRING,VACUUM VALVE

92144-1066

$13.23

92190

TUBE,4.5X8X330

92190-1557

$15.47

92192

TUBE,4.5X8.5X35

92192-0595

$28.56

15004

CARBURETOR-ASSY,CVK34

15004-0041

$646.64

15004A

CARBURETOR-ASSY,CVK34

15004-0042

Unavailable

16146

COVER-ASSY,PUMP

16146-1129

$34.85

92055

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92055A

RING-O,FLOAT CHAMBER

92055-1518

$24.43

223

SCREW-PAN-WS-CROS,4X12

223AB0412

$4.32

92144A

SPRING,PUMP

92144-1672

$10.67
