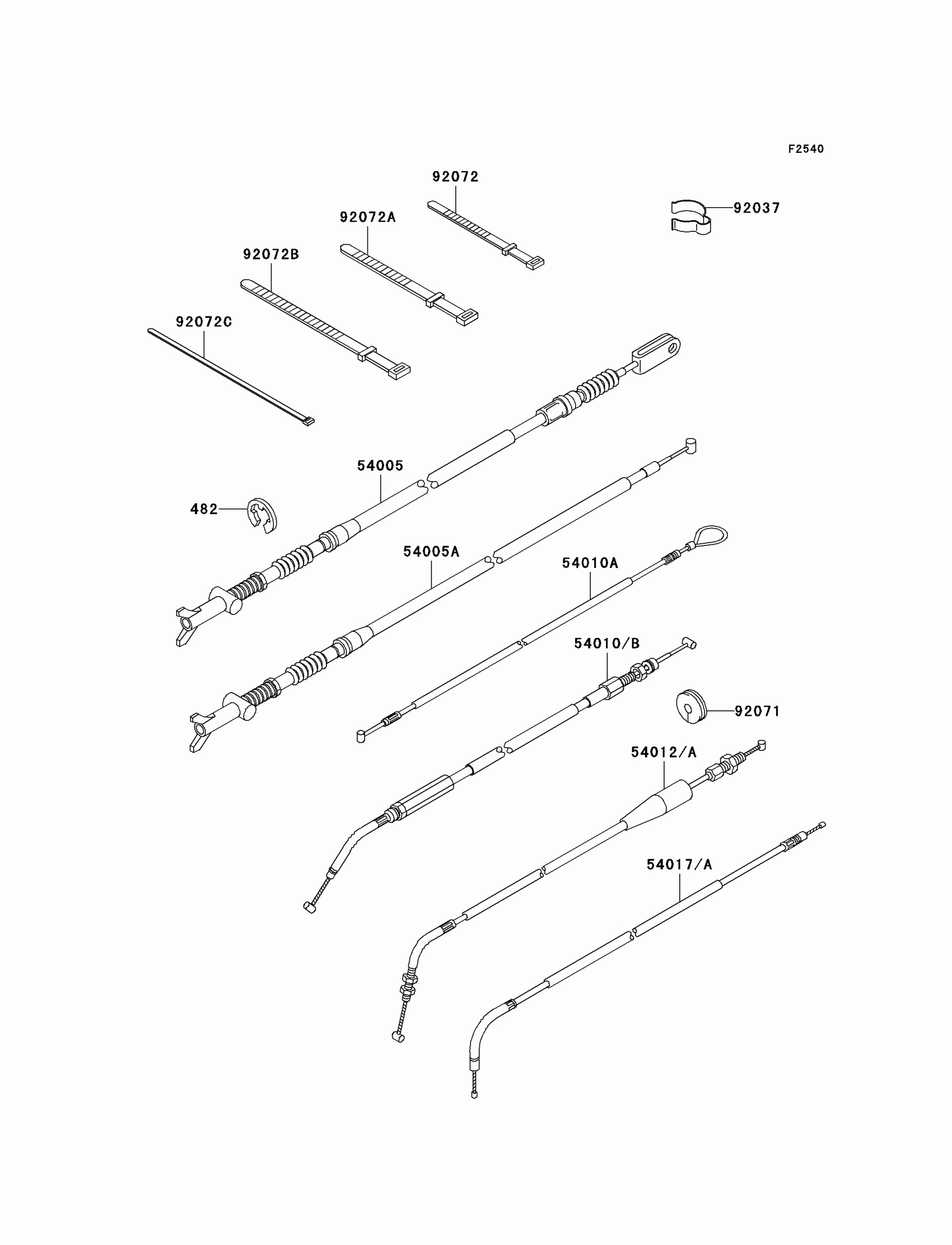

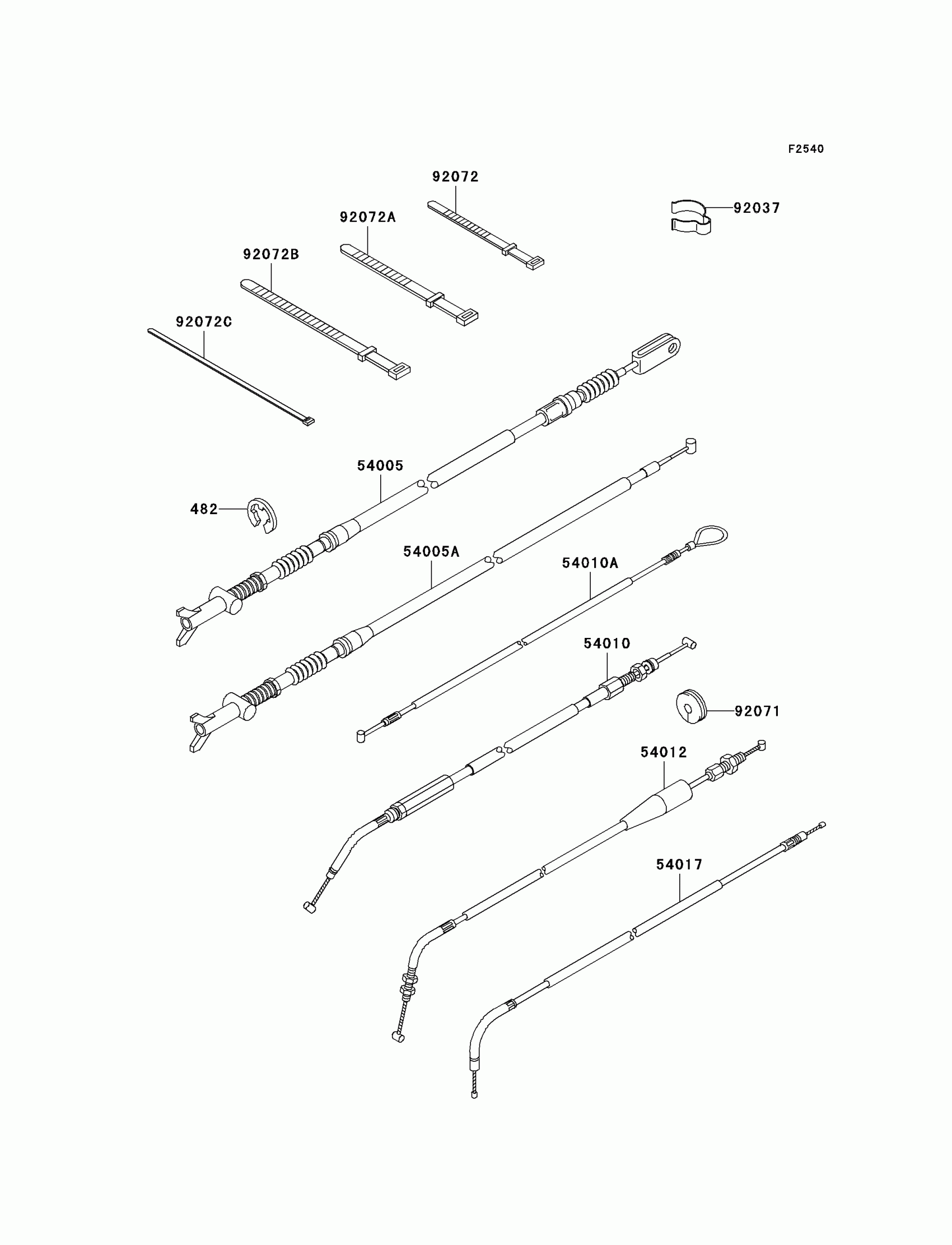

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Cables Diagram

Description

Price

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

54005

CABLE-BRAKE,REAR

54005-0019

$28.19

54005A

CABLE-BRAKE,PARKING

54005-0020

$28.19

54010

CABLE,FRONT DIFF LOCK

54010-0067

$71.39

54010A

CABLE,SEAT HOOK

54010-7501

$35.93

54012

CABLE-THROTTLE

54012-0205

$33.09

54017

CABLE-STARTER

54017-0036

$25.87

92037

CLAMP,AIR VENT HOSE

92037-1092

$9.28

92071

GROMMET,SENSOR LEAD

92071-1058

$5.73

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73
