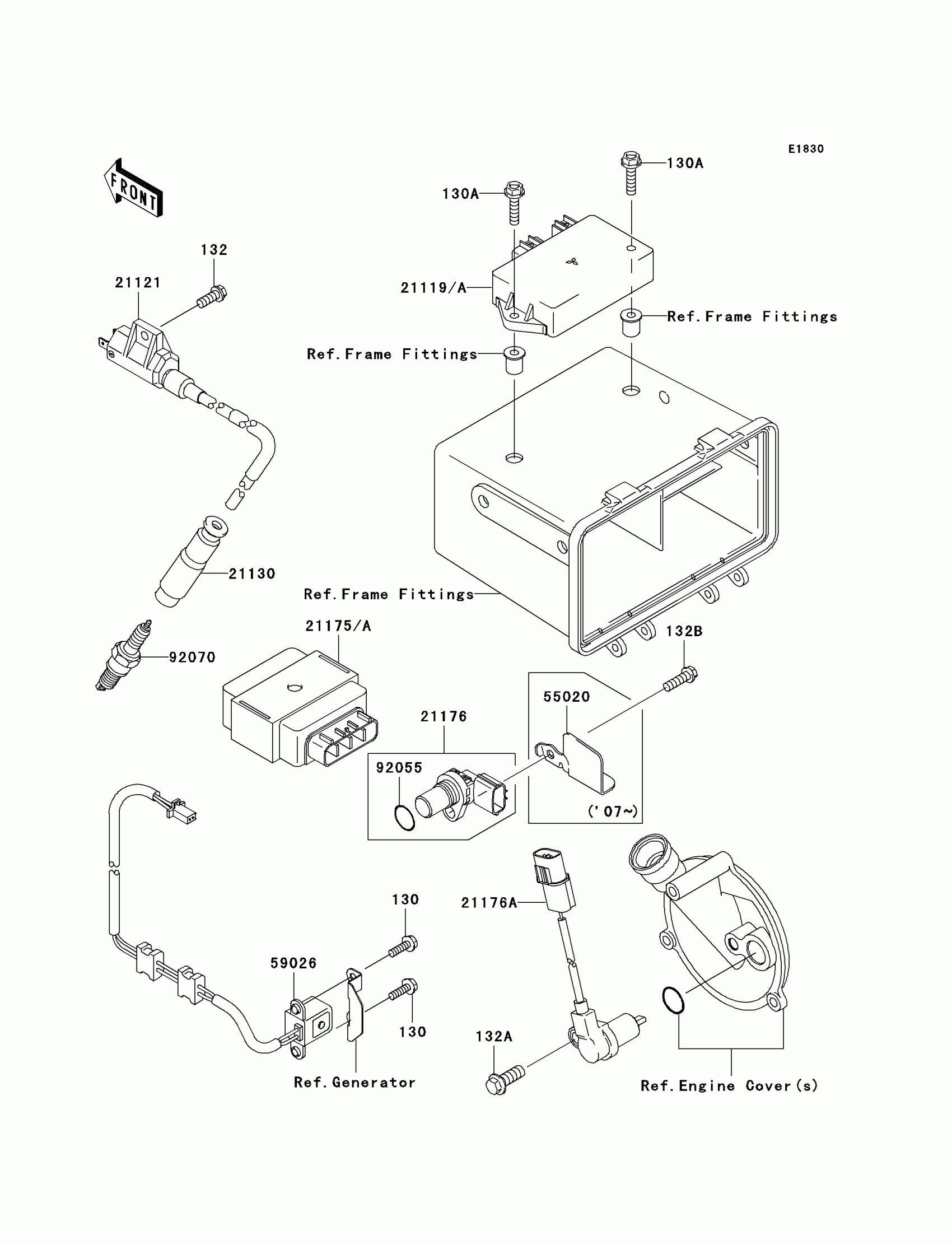

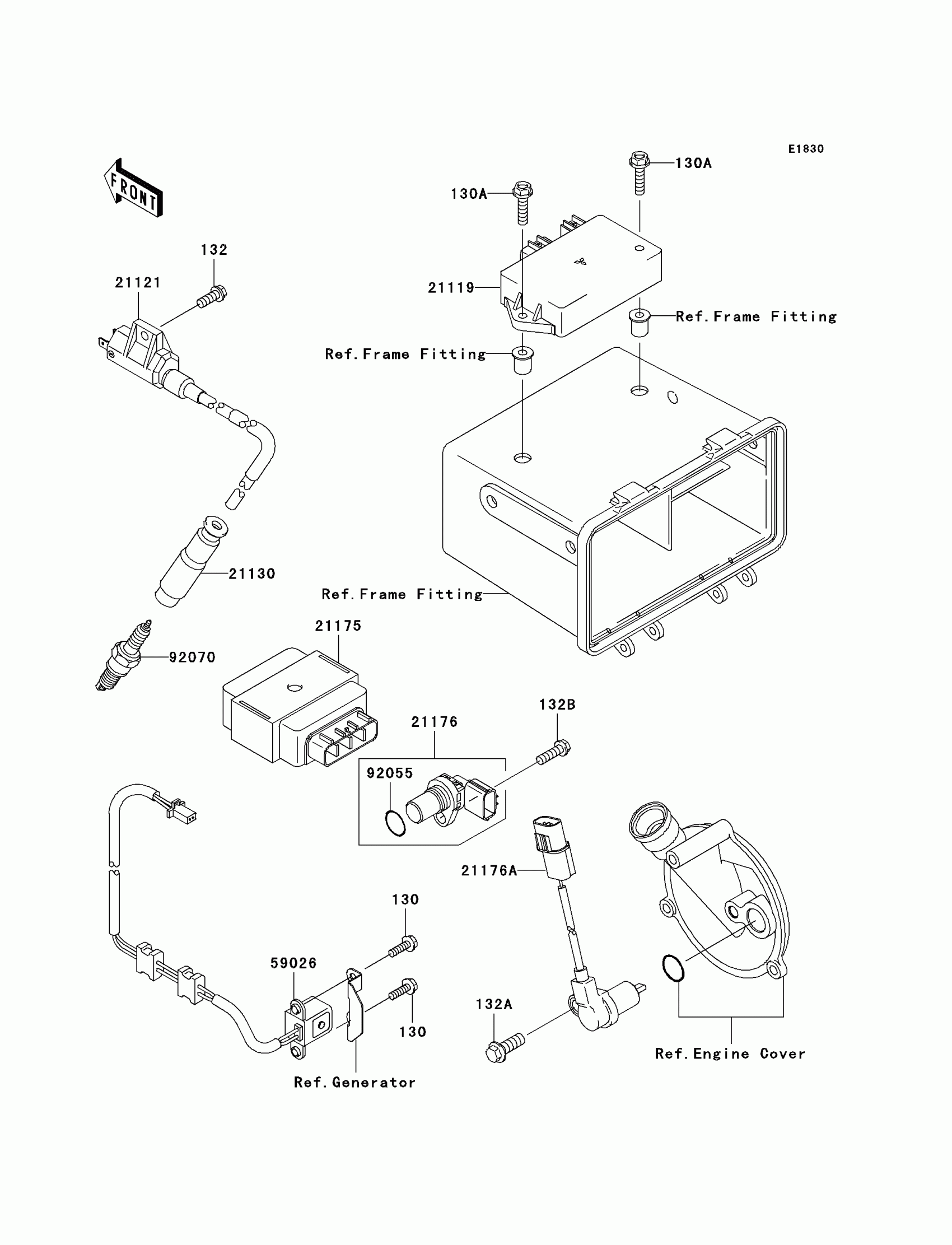

Kawasaki Prairie® 360 4X4 Ignition System Diagram

Description

Price

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X25

130BB0625

$2.80

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,8X22

132BA0822

$2.70

132B

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

21119

IGNITER

21119-0060

$600.38

21121

COIL-IGNITION

21121-1160

$156.27

21130

CAP-SPARK PLUG

21130-1071

$37.46

21175A

CONTROL UNIT-ELECTRONIC

21175-0216

Unavailable

21176

SENSOR,SPEED

21176-1104

$118.31

21176A

SENSOR,REVERSE

21176-1109

$109.78

55020

GUARD

55020-0247

$5.24

59026

COIL-PULSING

59026-1110

$138.14

92055

RING-O

92055-1718

$2.41

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

$3.46
