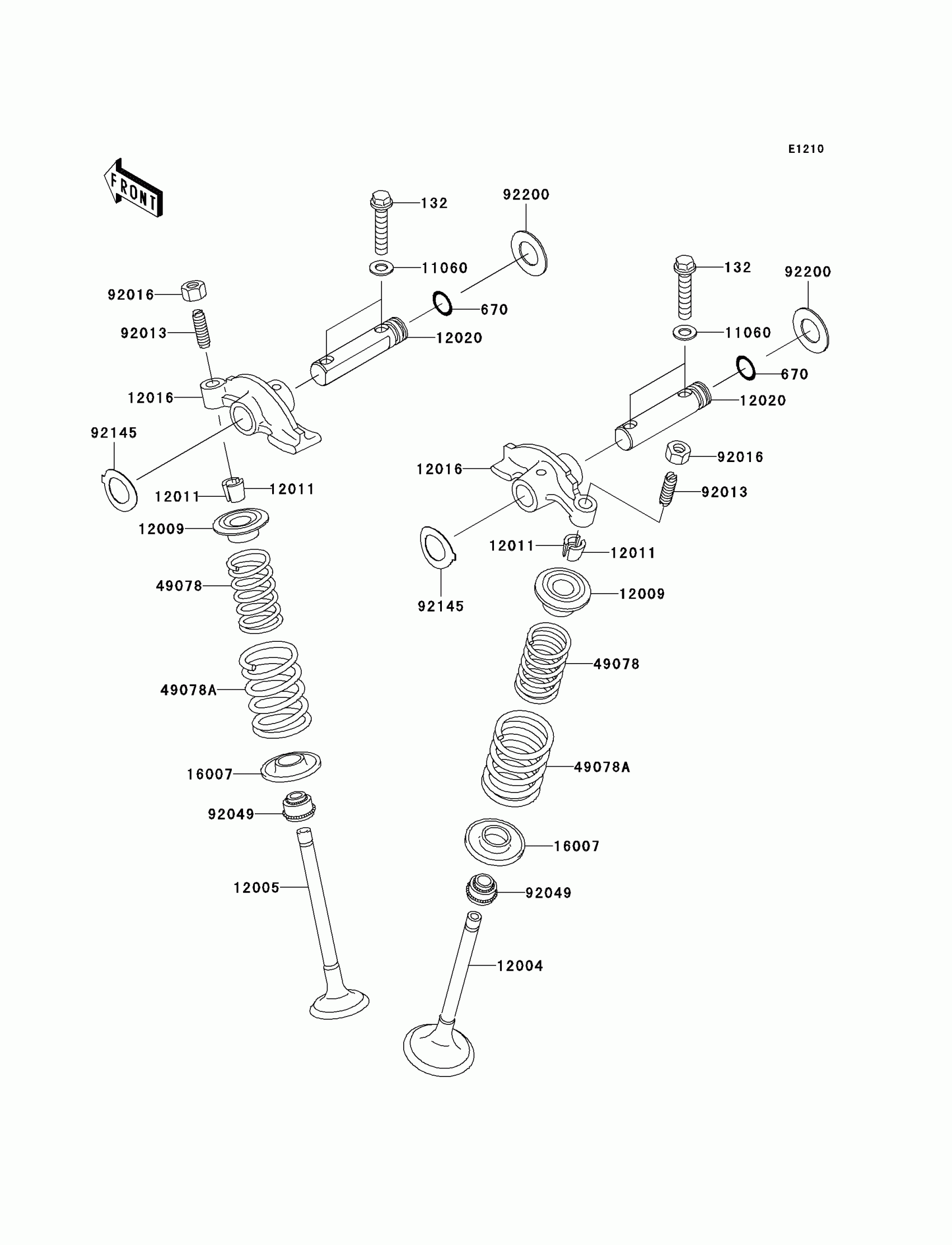

Kawasaki Prairie 360 4X4 Hardwoods Green HD Valve(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

670

O RING,10MM

670D1510

$4.69

11060

GASKET,6.2X12X0.3

11060-1994

$2.39

12004

VALVE-INTAKE

12004-1155

$40.71

12005

VALVE-EXHAUST

12005-1326

$67.52

12009

RETAINER-VALVE SPRING

12009-005

$13.08

12011

COLLET,RETAINER

12011-004

$5.46

12016

ARM-ROCKER

12016-1138

$107.12

12020

SHAFT-ROCKER

12020-1085

$33.95

16007

SEAT-SPRING,VALVE

16007-1024

$6.51

49078

SPRING-ENGINE VALVE,INNER

49078-1209

$10.09

49078A

SPRING-ENGINE VALVE,OUTER

49078-1210

$10.09

92013

SCREW,6MM

92013-009

$6.57

92016

NUT,6MM

92016-061

$4.69

92049

SEAL-OIL,RV37129.5

92049-016

$18.35

92145

SPRING,ROCKER SHAFT

92145-1532

$3.61

92200

WASHER,13.4X25X1.0

92200-0045

$3.73
