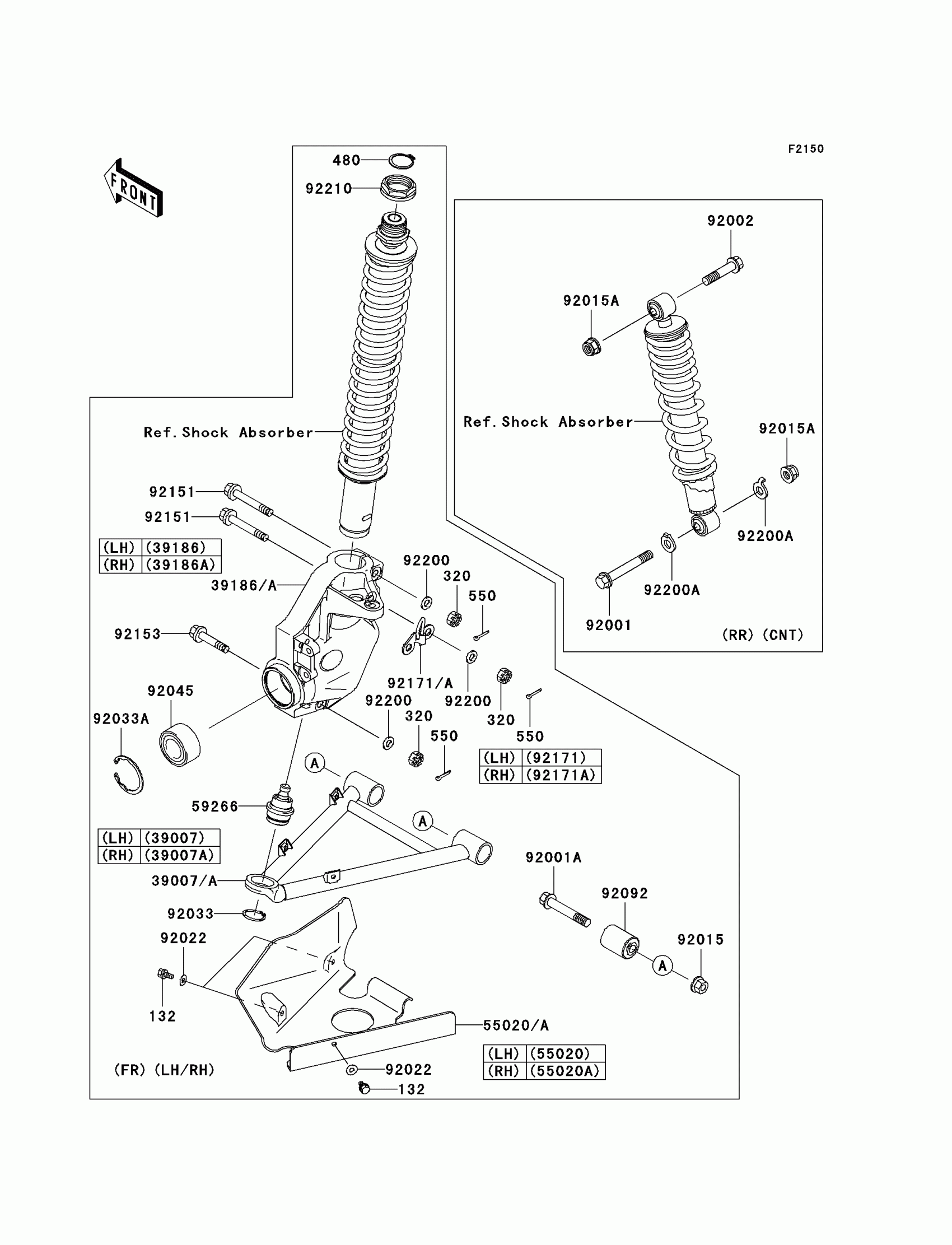

Kawasaki Prairie 360 4X4 Hardwoods Green HD Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

320

NUT-CASTLE

320H1000

Unavailable

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

550

PIN COTTER 2.0X15

550D2015

Unavailable

39007

ARM-SUSP,LH

39007-7503

$72.83

39007A

ARM-SUSP,RH

39007-7504

$72.83

39186

KNUCKLE,LH

39186-7505

$180.17

39186A

KNUCKLE,RH

39186-7506

$180.17

55020

GUARD,FRONT AXLE,LH

55020-1768

$10.56

55020A

GUARD,FRONT AXLE,RH

55020-1769

$13.19

59266

JOINT-BALL

59266-1127

$24.73

92001

BOLT,FLANGED,12X88

92001-1693

$14.76

92001A

BOLT,FLANGED,12X75

92001-1986

$9.54

92002

BOLT,FLANGED,12X55

92002-1840

$9.02

92015

NUT,12MM

92015-1426

$5.61

92015A

NUT,LOCK,12MM

92015-1617

$6.85

92022

WASHER,7X16X1.2

92022-1344

$2.99

92033

RING-SNAP,30MM

92033-1218

$7.95

92033A

RING-SNAP,55MM

92033-1274

$7.18

92045

BEARING-BALL,30BWD08A

92045-1448

$90.61

92092

BUSHING-RUBBER

92092-7501

$17.01

92151

BOLT,FLANGED,10X70

92151-1879

$11.81

92153

BOLT,FLANGED,10X58

92153-7501

$7.20

92171

CLAMP,LH

92171-1499

$16.24

92171A

CLAMP,RH

92171-1500

$16.24

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

92200A

WASHER,CLAW,12.7X25.4X3.4

92200-7501

Unavailable

92210

NUT,35MM

92210-1066

$18.15
