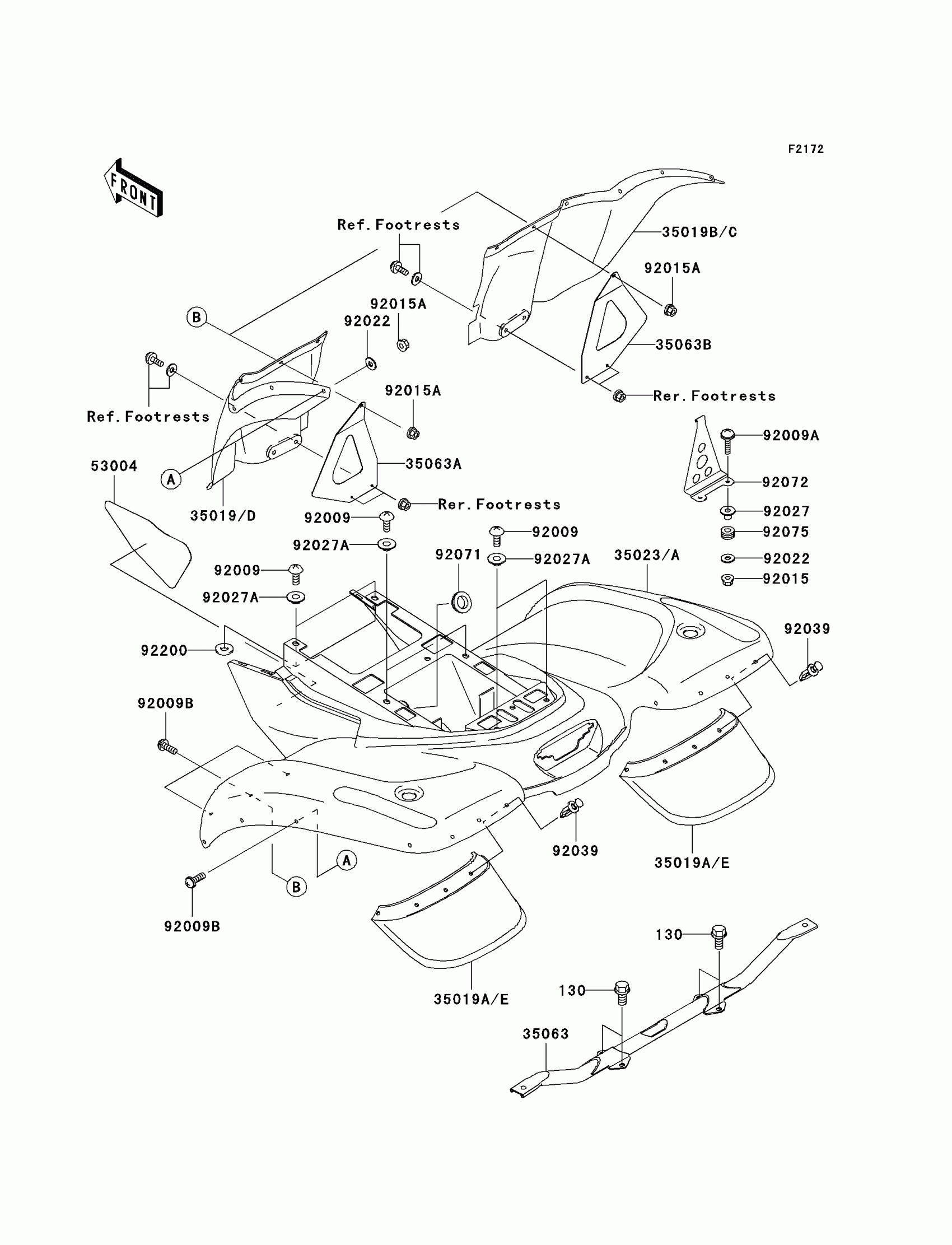

Kawasaki Prairie 360 4X4 Hardwoods Green HD Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,8X16

130J0816

Unavailable

35019

FLAP,RR,FR,LH,F.BLACK

35019-1334-6Z

$47.45

35019A

FLAP,RR,RR,F.BLACK

35019-1336-6Z

$21.17

35019B

FLAP,RR,FR,RH,F.BLACK

35019-1375-6Z

$47.45

35023A

FENDER-REAR,C.H.GREEN

35023-0001-374

Unavailable

35063

STAY,REAR FENDER

35063-7505

$50.37

35063A

STAY,REAR FENDER,LH

35063-7508

$16.90

35063B

STAY,REAR FENDER,RH

35063-7509

Unavailable

53004

MAT,REAR FENDER

53004-1173

$11.10

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X25

92009-1465

$2.99

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92027A

COLLAR,L=4.7

92027-1964

$5.61

92039

RIVET

92039-1229

$0.80

92071

GROMMET

92071-1237

$7.73

92072

BAND

92072-1361

$8.84

92075

DAMPER,CASE

92075-222

$5.61

92200

WASHER,8.5X20X2.3

92200-1055

$3.56
