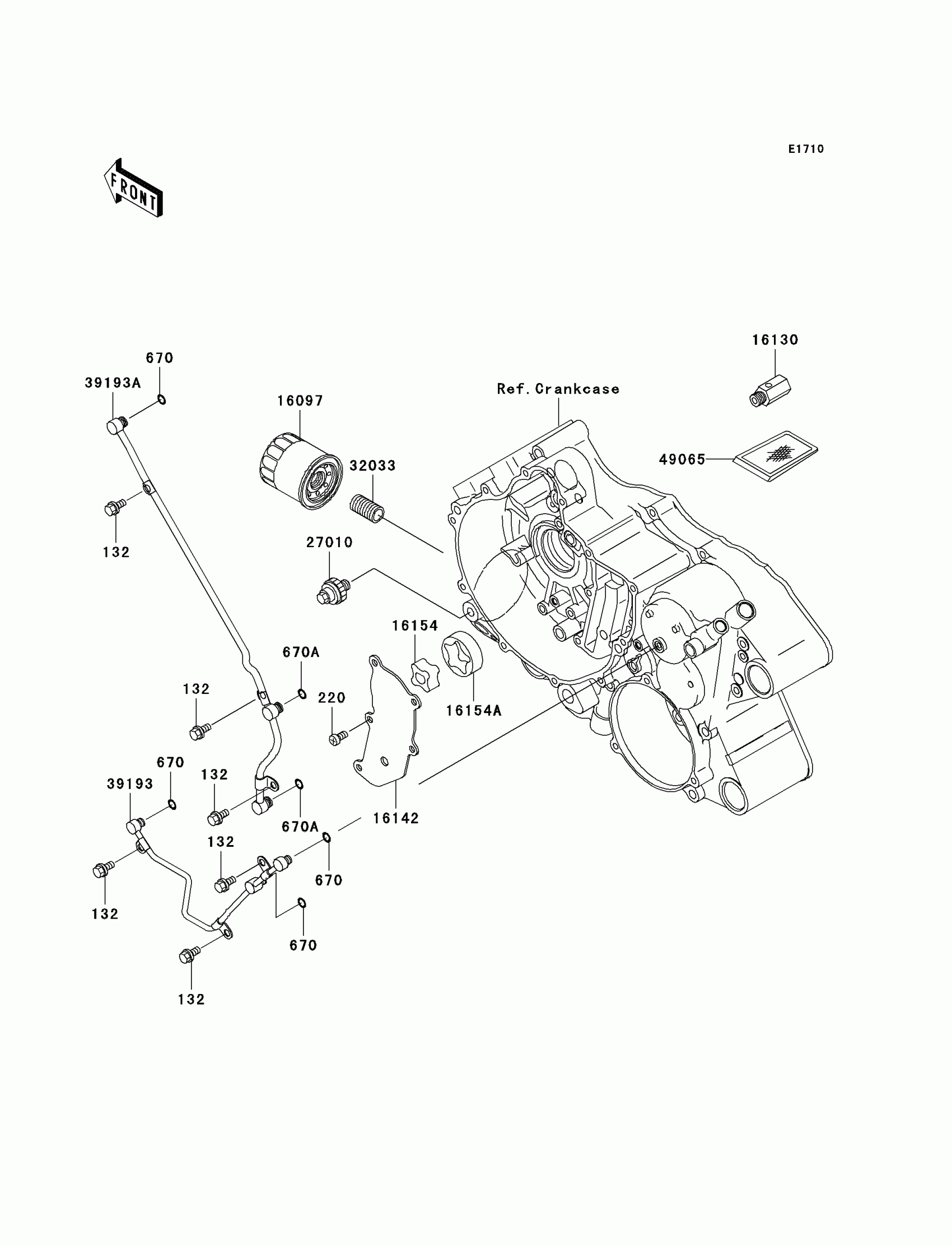

Kawasaki Prairie 360 4X4 Hardwoods Green HD Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

670

O RING

670D1505

$3.29

670A

O RING,7MM

670D1507

$1.24

16097

FILTER-ASSY-OIL

16097-1072

$11.00

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP,OIL

16142-1170

$3.41

16154

ROTOR-PUMP,INNER

16154-1128

$21.56

16154A

ROTOR-PUMP,OUTER

16154-1129

$21.56

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32033

PIPE,OIL FILTER

32033-1535

$9.85

39193

PIPE-OIL,CRANKCASE

39193-1060

$69.52

39193A

PIPE-OIL,CRANKSHAFT

39193-1068

$59.59

49065

FILTER-OIL

49065-1086

$10.38
