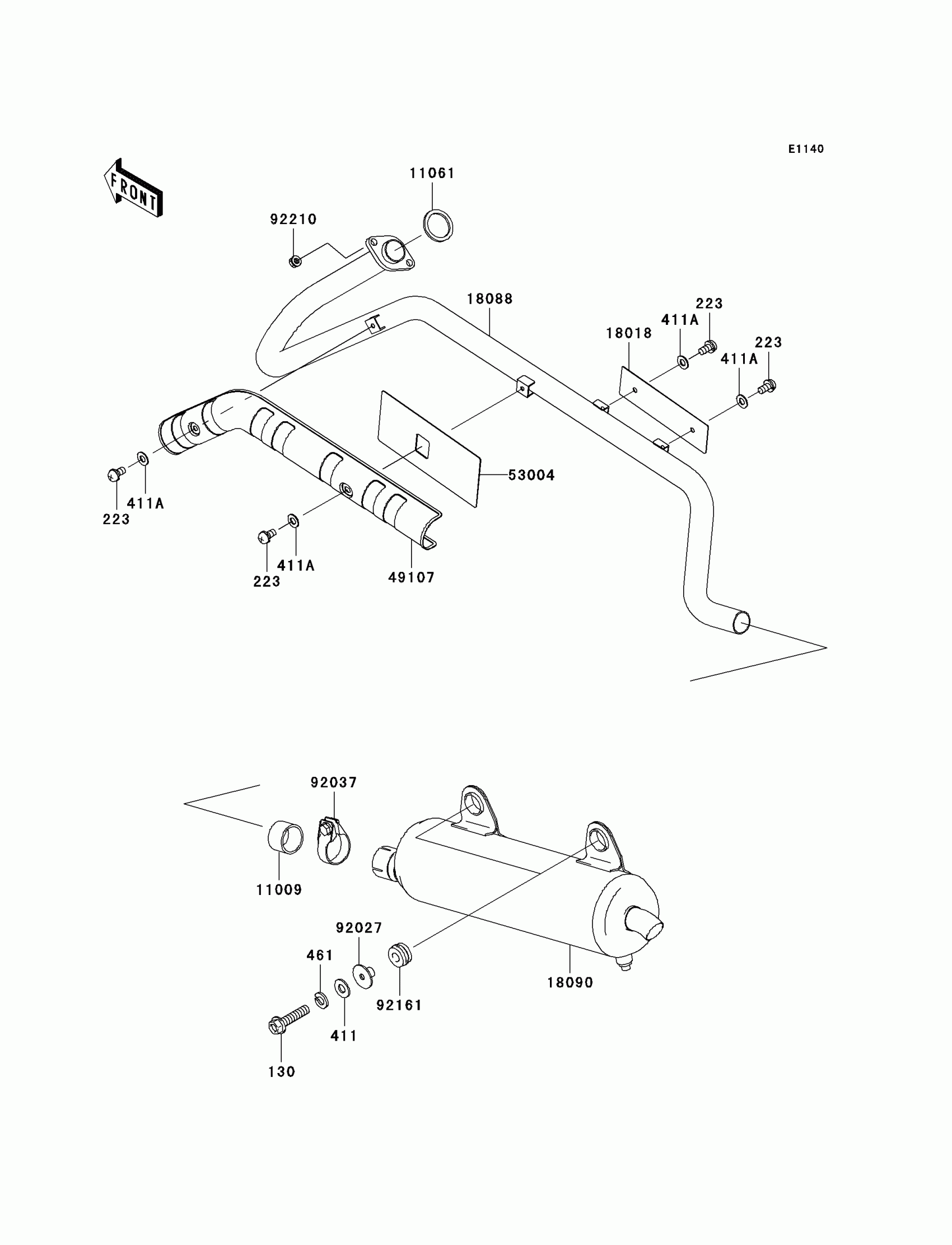

Kawasaki Prairie 360 4X4 Hardwoods Green HD Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X35

130Z0835

$2.62

223

SCREW-PAN-WS-CROS,6X12

223C0612

$3.84

411

WASHER PLAIN 8MM

411B0800

$0.93

411A

WASHER PLAIN

411F0600

$1.18

461

WASHER SPRING 8MM

461F0800

$0.40

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11061

GASKET,EXHAUST

11061-1053

$10.69

18018

PLATE-HEAT GUARD,EXHAUST PIPE

18018-1135

$3.08

18088

PIPE-EXHAUST

18088-1215

$94.51

18090

BODY-COMP-MUFFLER

18090-1954

Unavailable

49107

COVER-EXHAUST PIPE

49107-1222

$45.67

53004

MAT

53004-1181

$25.96

92027

COLLAR,MUFFLER

92027-1981

$10.76

92037

CLAMP,42MM

92037-1349

$12.95

92161

DAMPER,MUFFLER

92161-1292

$9.87

92210

NUT,8MM

92210-1242

$2.41
